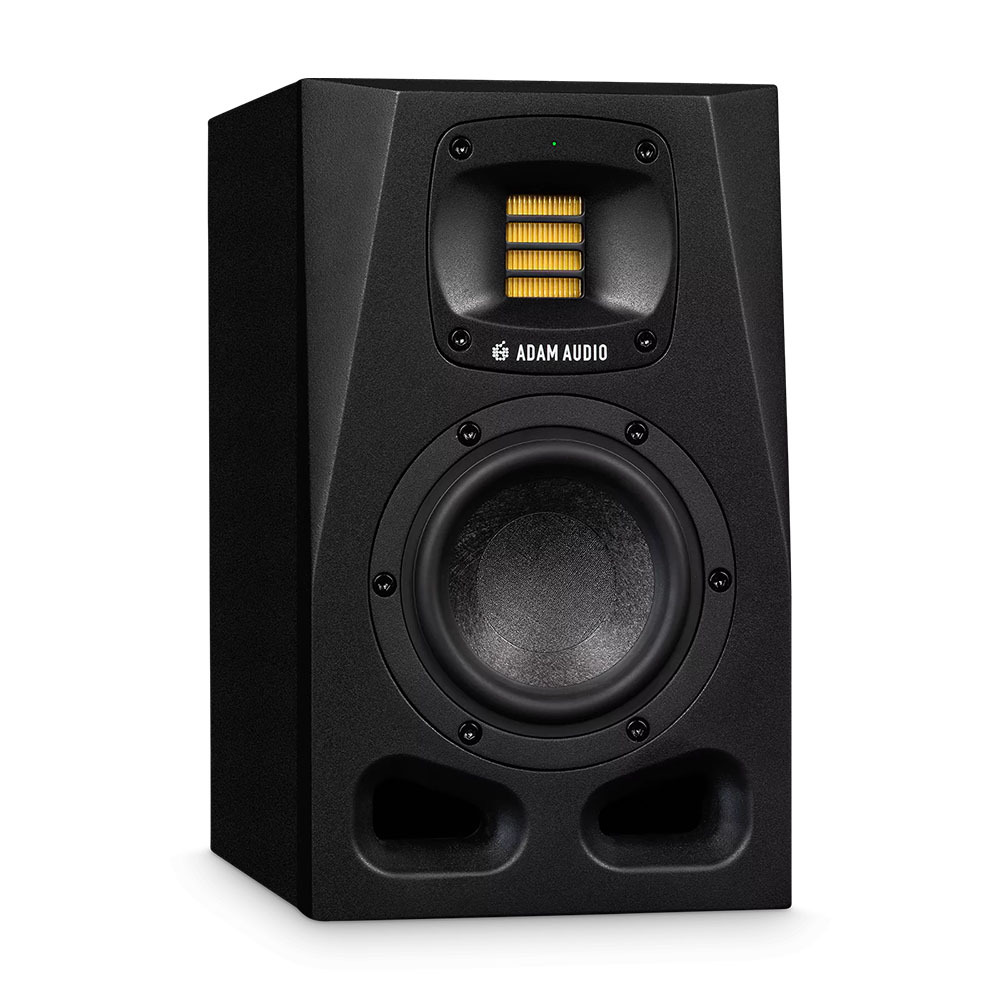

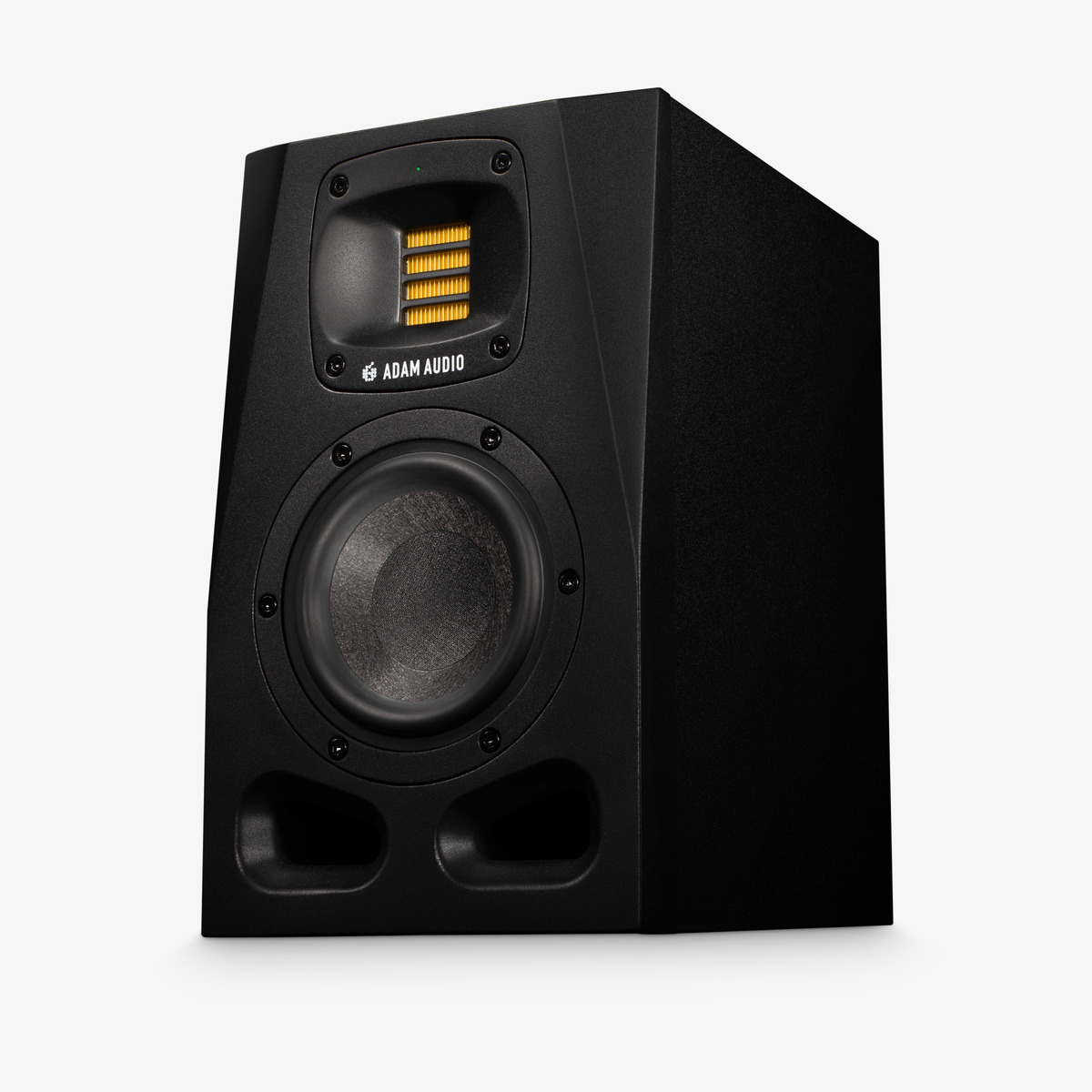

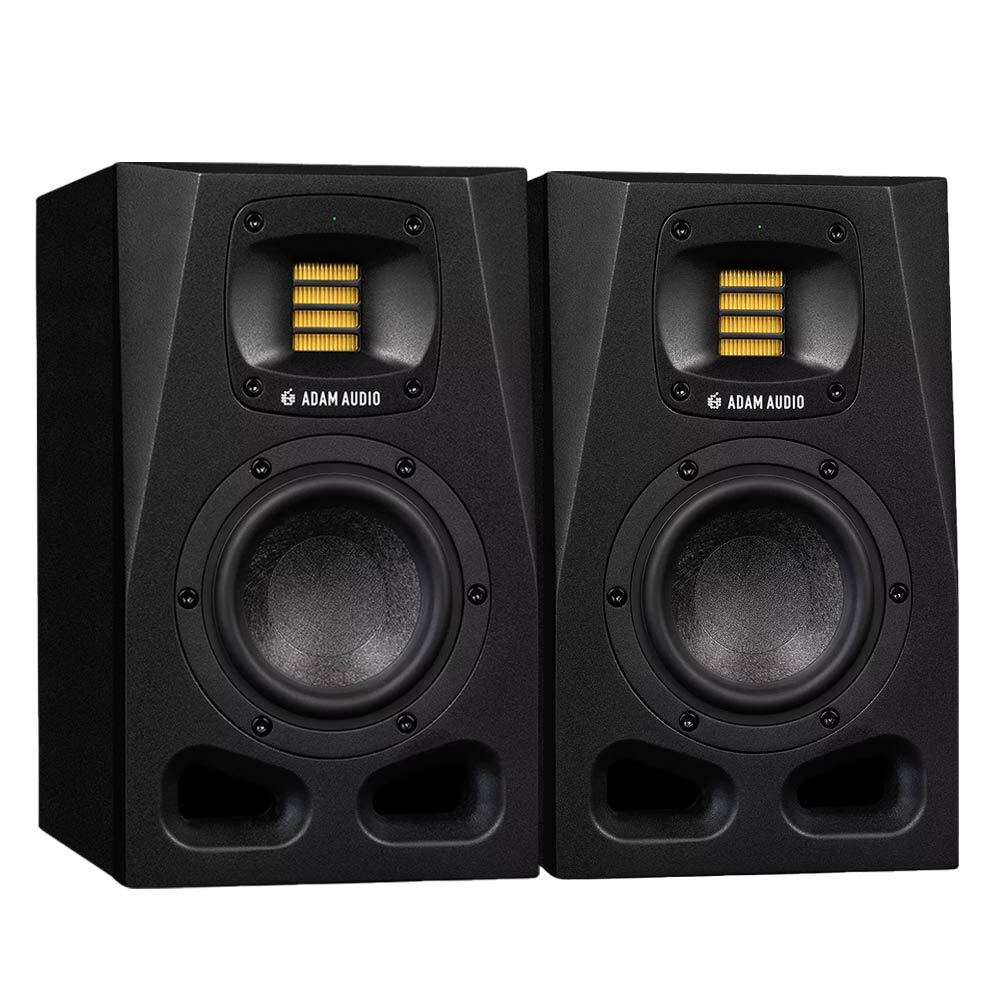

Adam Audio A4V Studio Monitor Pair Nearfield – 4 Inch

The Adam Audio A4V Pair are Nearfield Studio Monitors designed for small studio spaces, short listening distances and immersive multi-speaker configurations. A4v delivers accurate, full-bodied sound in a compact form. ADAM Audio monitors have earned a worldwide reputation for the innovations established in the field of loudspeaker technology.

QUALITY COMPACTED

The A4V is a two-way speaker featuring legendary a 4-inch long-throw woofer. Made from the same Multi-Layer Mineral (MLM) fibers as other A-Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space.

What’s more, with a frequency range of 52 Hz to 45 kHz, the A4V can accommodate a broad spectrum of audio applications. Including from producing podcasts to mixing string quartets. But that’s not all, it’ll also fit well within immersive and 3D setups.

EXPLORE THE TECHNOLOGY of A4V

Furthermore, ADAM Audio monitors have earned a worldwide reputation for the innovations established in the field of loudspeaker technology. Here you can explore the technology of the A4V.

• A CONTROL REMOTE SOFTWARE: With A4V, control the DSP-based functionality of all A-Series monitors remotely and in real-time over ethernet using A control.

• ROTATABLE HPS WAVEGUIDE & X-ART TWEETER: Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.

• AUTOMATED ROOM CORRECTION WITH SONARWORKS: What’s more, ADAM Audio has partnered with Sonarworks. They created an automated room correction solution that runs directly on the DSP of A Series monitors.

• BASS REFLEX SYSTEM, CABINETS AND MOUNTING: A Series cabinets build on the heritage of ADAM Audio and the AX Series.

General Data

• Display: Front panel multi-color LED
• Cabinet Design: Dual front ported
• Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
• Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
• Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
• AC Input Voltage: 100 – 240 V, 50/60 Hz
• Power Rating: 300 W max.
• Operating Conditions: -10° C to +45° C (+14° F to +113° F); <75 % RH, non-condensing
• Weight: 5.8 kg (12 lbs 13 oz)
• Dimensions (Height x Width x Depth): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide

Audio Input Connectors

• Analog: XLR, RCA
• Input Impedance: 9 kOhm / 3.3 kOhm
• Max. Input Level: +19 dBu

Amplification

• Woofer
  • Amplifier Type: PWM
  • Peak (10% THD, limiter deactivated): 110 W
  • RMS (1% THD, limiter deactivated): 90 W
• Tweeter
  • Amplifier Type: Class A/B
  • Peak (10% THD, limiter deactivated): 20 W
  • RMS (1% THD, limiter deactivated): 15 W

Control Options [via Network]

• Networking Connector: RJ45
• Connection Type: Ethernet
• Communication Protocol: OCA using standard IP data
• Control Software: A Control (Windows and MacOS available)
• Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
• Advanced Room Adaptation: 6 x PEQ, Level, Delay
• Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference

Acoustics

• Frequency Response @ -3 dB: 58 Hz – 41 kHz
• Frequency Response @ -6 dB: 52 Hz – 45 kHz
• Maximum SPL per speaker at 1 m: 100 dB SPL
• Crossover Frequencies: 3.0 kHz

Drivers

• Woofer
  • Basket Diameter: 4″
  • Voice Coil Diameter: 1″ (25 mm)
  • Cone Material: MLM
• Tweeter
  • Type: X-ART
  • Diaphragm Area: 4 inch² (2420 mm²)
  • Equivalent Diaphragm Diameter: 2″ (56 mm)
  • Velocity Transform Ratio: 4 to 1
  • Diaphragm Weight: 0.17 g
  • Waveguide: HPS (rotatable)
  • Waveguide Dispersion: 120° horizontal, 70° vertical

Signal Processing

• AD converter: 24-bit
• Internal sample rate: 96 kHz
• Delay range, resolution: 0 – 10 ms, 0.1 ms
• Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

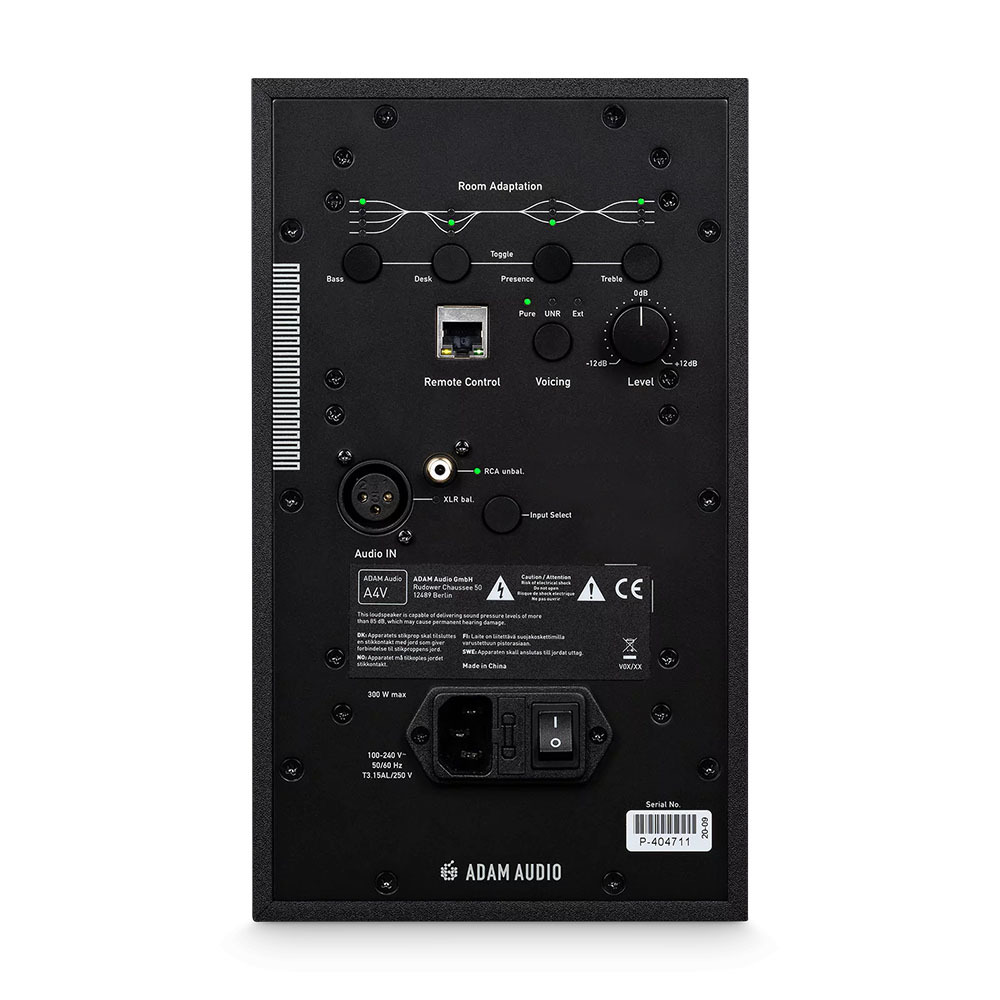

Control Options [via Backplate]

• Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
• Level: -12 dB to +12 dB
• Input Selection: Balanced, unbalanced
• Voicings: Pure, UNR
• Room Adaption:
  • Bass: +2, 0, -2, -4 dB
  • Desk: 0, -2, -4 dB
  • Presence: +1, 0, -1 dB
  • Treble: +1.5, 0, -1.5 dB
