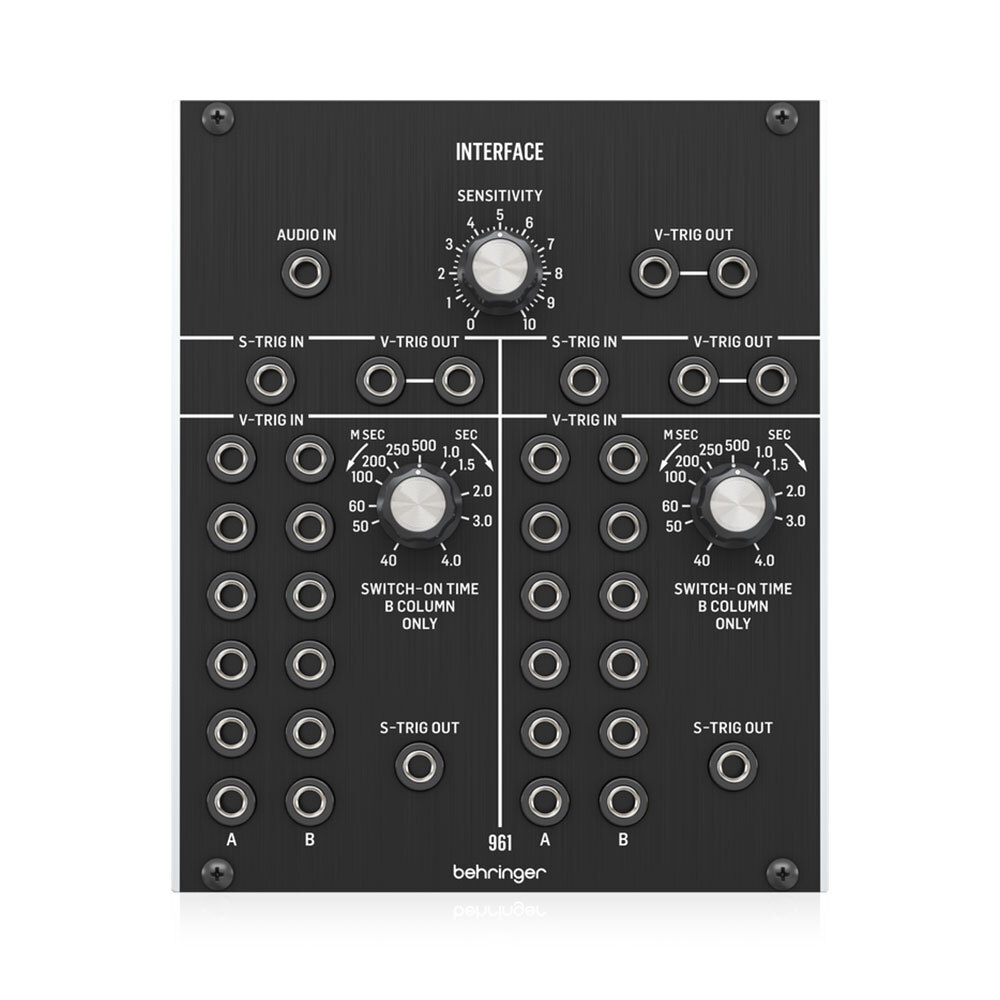

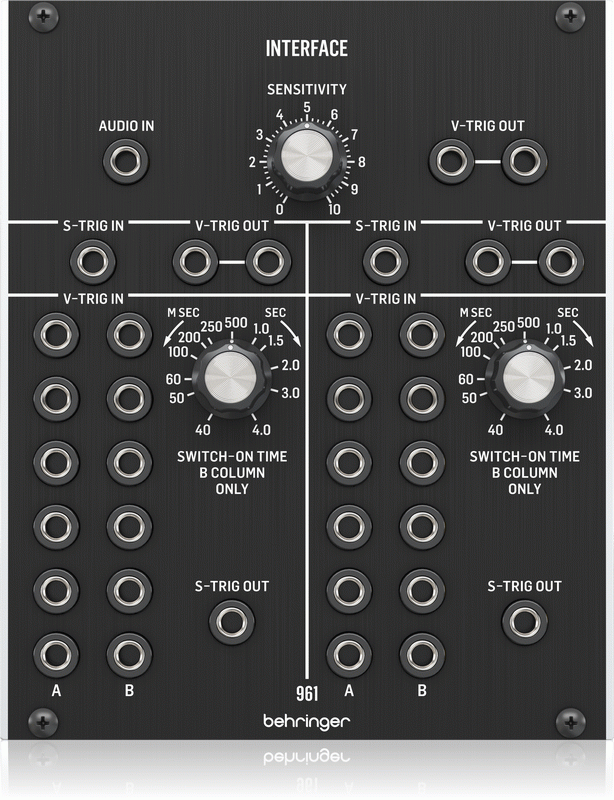

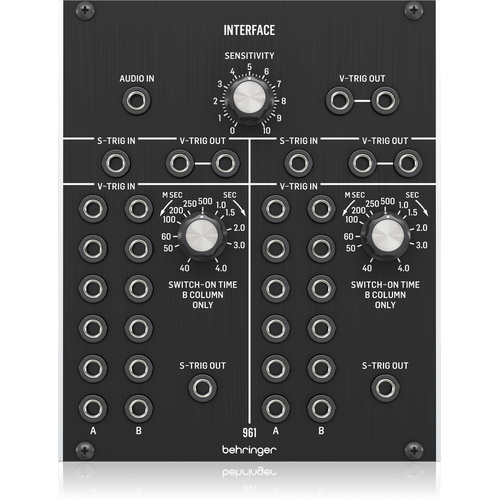

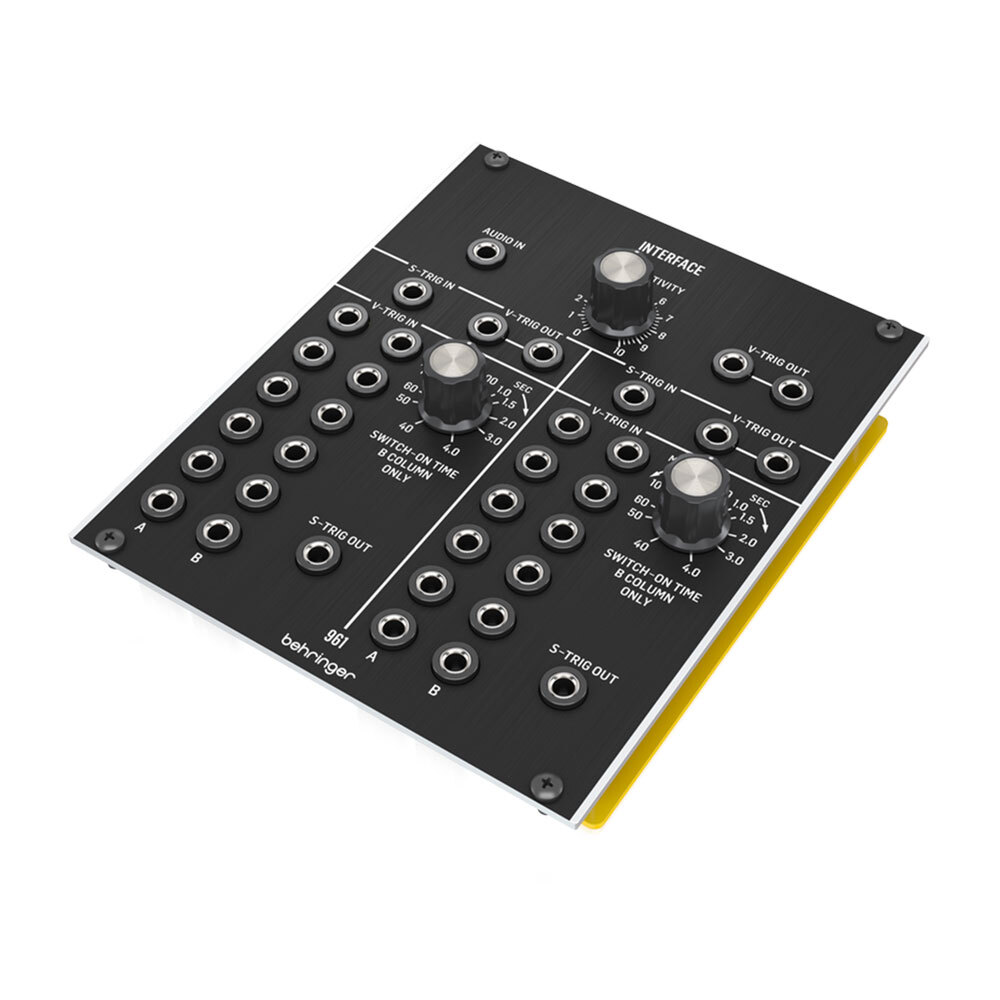

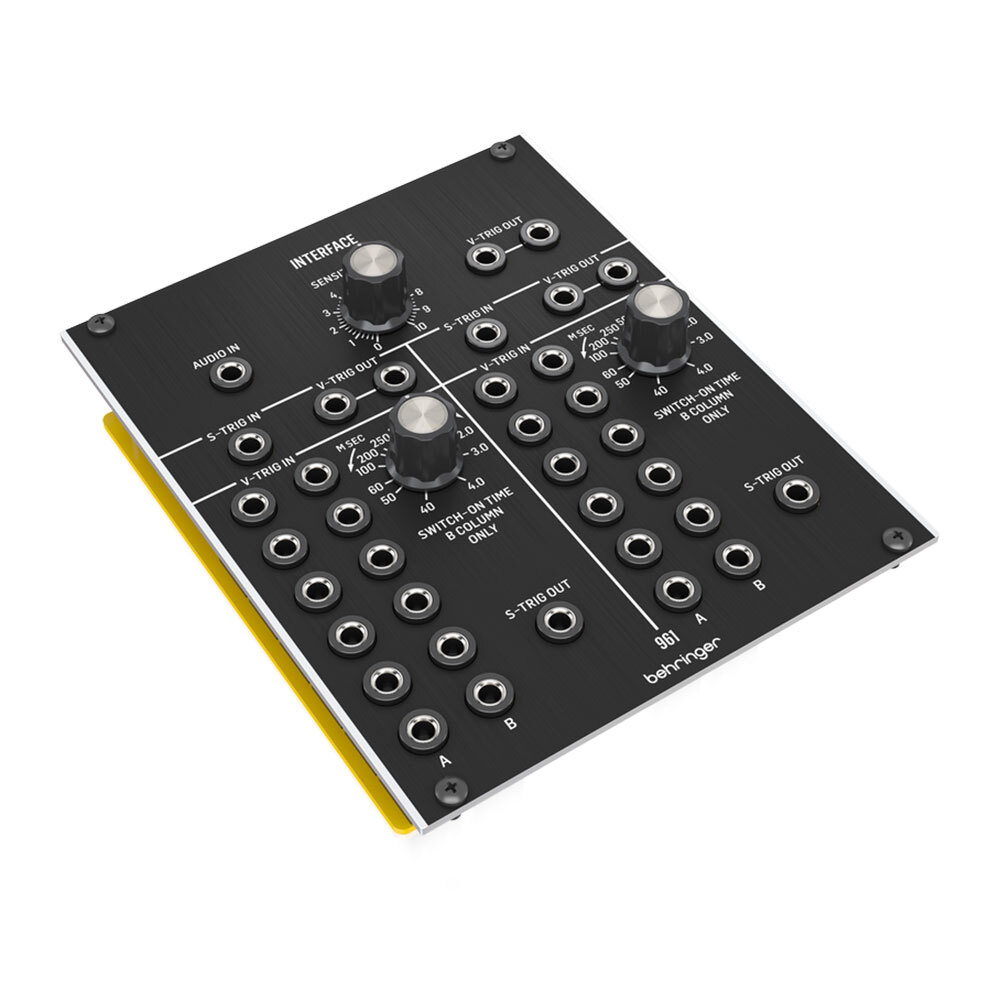

Behringer 961 Interface Module

The Behringer 961 Interface offers an analog multi-channel trigger converter module for Eurorack, and is a part of the System 55 modular synth series that authentically reproduces the circuitry from the classic Moog Modular 55. It enables you to build your own unique synthesizer that will fit in a standard Eurorack case.

Converters
Featuring audio to V-Trig Converter, the 961 Interface enables you to plug in any audio source and transform it into a voltage trigger. It lets you drive other modules in your rig. It allows you to use the dual S-Trig to V-Trig, and multichannel V-Trig to S-Trig converters to switch or control your other modules.

Controls
Controls such as the Sensitivity knob allows you to adjust the gain of the Audio In signal. Moreover, the Column B in each V-Trig In bank has its own Switch-On Time knob you can use to manually control how short or long the “ON” duration is for S-Trig signals. Ultimately, add a 960 sequential controller to the mix and unleash the complete creative potential of the 961 Interface.

Eurorack Ready
The product can be simply installed into a standard Eurorack case. Just connect the power cables to the power supply and mount the module. It allows you to then mix the 961 Interface with your other synth modules.

Product Features:

• Authentic reproduction of the circuitry from the “Modular 55” Series
• Artist roster includes world’s most famous pop, rock and jazz musicians
• Dual multichannel V-trig to S-trig converter
• Dual S-trig to V-trig converter
• Audio to V-trig converter
• Variable switch on delay controls for Column B V-trig inputs
• Control for setting audio sensitivity for V-trig conversion
• Eurorack specs: 21 HP, 50 mA +12 V
