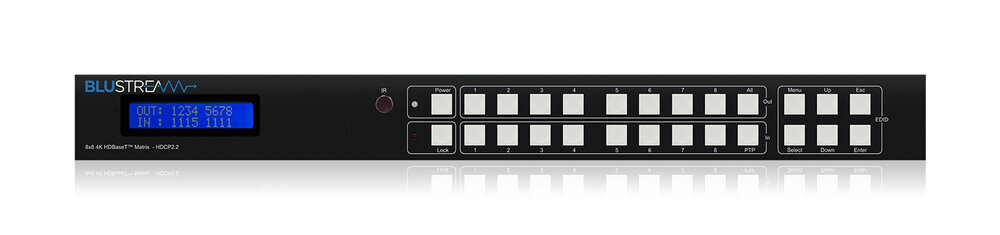

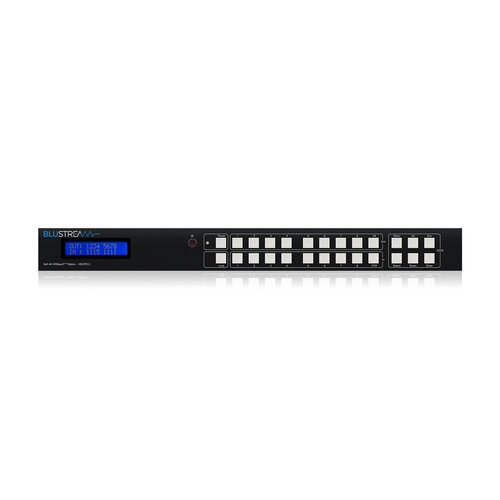

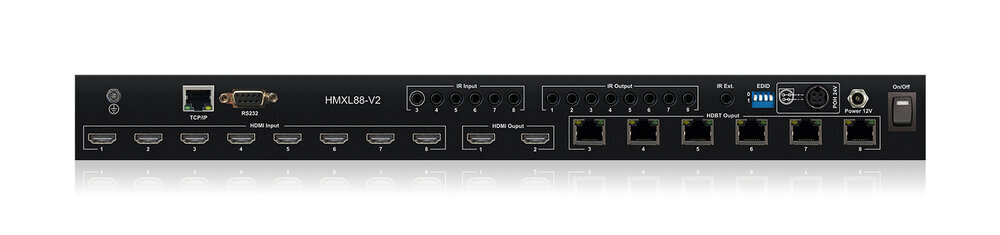

Blustream 8 x 8 HDBT Matrix 70M @ 1080P 6 x HDBT Out + 2 HDMI

The Essential 8x8 HDBaseT™ Matrix offers extraordinary execution and an incentive for the custom establishment market.

The HMXL88-V2 is a 4K HDCP 2.2, 8x8 lattice with a blend of 6 x HDBaseT™ and 2 x HDMI yields. This considers practical coordination of nearby shows and AV recipients inside an establishment. The network conveys HDMI, Bi-directional IR, and PoC up to lengths of 70m over a solitary CAT link.

The network includes a web interface module for control and design and can likewise be consistently constrained by outsider control frameworks through RS-232 or IP.

The Blustream 8 x 8 HDBT Matrix 70M @ 1080P 6 x HDBT Out + 2 HDMI features:

• Progressed HDBaseT™ innovation offering uncompressed video and sound with zero inertness
• Highlights 8 x HDMI inputs which can be freely directed to 8 yields (6 x HDBaseT and 2 x HDMI)
• Stretches out HDMI up to a distance of 70m over a single CAT link
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video goals including VGA-WUXGA and 480i-4K
• Supports 3D sign presentation
• Supports all known HDMI sound arrangements including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
• Web interface module for control and arrangement of Matrix (guidelines accessible in Drivers and Protocols area)
• Bi-directional IR from all information and yield areas
• Control through the front board, IR, RS-232, and TCP/IP
• Supports PoC (Power over Cable) to control viable HDBaseT recipients
• outsider drivers accessible for all significant home control brands
• Progressed EDID the executives
• HDCP 2.2 consistent
• 1U Design for 19" rack mount reconciliation - rack mounting unit included
• Viable with (recipients):
  • HEX100ARC-RX (for AV and IR go through just, 70m at 1080p, 40m at 4K)
  • HEX100HDVGA-RX (for sound breakout at beneficiary, 70m at 1080p, 40m at 4K) - not HDCP 2.2 consistent
  • HEX70ED-RX (IR control just, 70m at 1080p, 40m at 4K)
  • HEX70B-RX (IR control just, 70m at 1080p, 40m at 4K) - suggested recipient
  • RX70AMP (for sound inside zone, 70m at 1080p, 40m at 4K) - not HDCP 2.2 consistent
