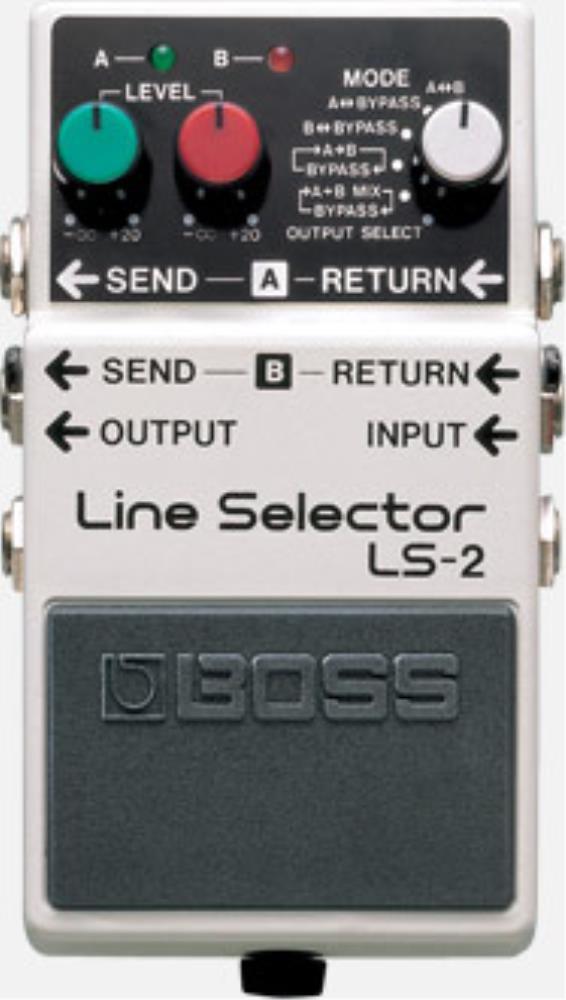

BOSS LS-2: Line Selector

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

  • Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
  • Provides two line loops with Level control and six looping modes
  • Can supply power to several BOSS compact pedals when used with an AC adaptor
  • The ideal power supply and master switching unit for multiple effects setups
  • BOSS 5-year warranty

specifications

BOSS LS-2: Line Selector



Input Impedance
1 M ohms
Output Impedance
1 k ohms
Recommended Load Impedance
10 k ohms or greater
Residual Noise Level
– 85 dBu or less (IHF-A, Typ.)
Connectors
INPUT Jack, OUTPUT Jack, RETURN A/ B Jack, SEND A/ B Jack, DC In/Out
Power Supply
DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
Current Draw
25 mA (DC 9 V)
Accessories
Dry Battery 9 V type (6F22/9 V)
Option
AC Adaptor (PSA-Series)
Size and Weight ( incl. battery )
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight
0.4 kg
0 lbs. 15 oz.
SKU LS2
Barcode # 4957054022846
Brand BOSS
Shipping Weight 0.4300kg
Shipping Width 0.150m
Shipping Height 0.065m
Shipping Length 0.092m
