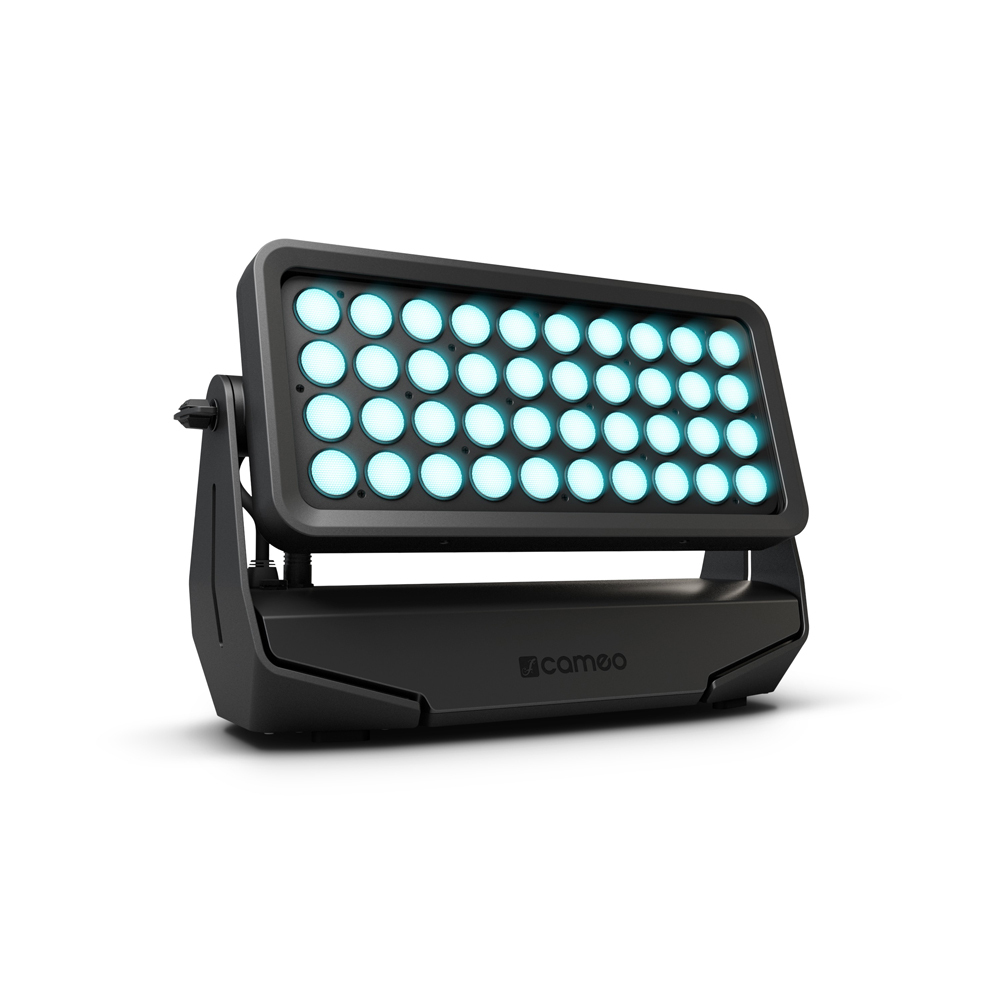

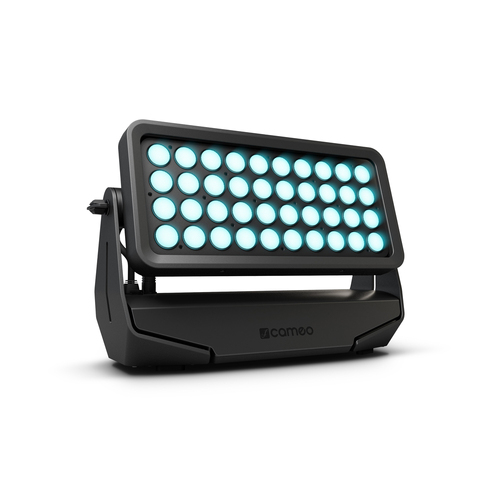

Equipped with a total of forty 15 W RGBW LEDs for a massive 21,000 lm output, the Cameo ZENIT® W600 is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control. The fixture also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation. For maximum versatility, the ZENIT® W600 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers providing a choice of 25°, 45°, 100° or elliptical 60° x 10° beam angles and a 4-way barn door are available as dedicated accessories. Featuring advanced 16-bit technology for high-resolution colour mixing and dimming and an 18° beam spread, the ZENIT® W600 projects hugely intense, uniform washes. With colour temperature and individual LED colour correction, four selectable dimming curves and fully adjustable halogen lamp-like dimming response, the fixture is the perfect tool for highly professional lighting. The ZENIT® W600's die cast aluminium housing integrates three temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. A security lock prevents unauthorized access to the luminaire's menu settings.

• 40 x 15 W RGBW LEDs with 21,000 lm total output for uniform and powerful colour mixing
• 18° beam and 35° field angles without diffuser
• Optional SnapMag® filter frames for 25°, 45°, 100° or elliptical 60° x 10° beam angle selection and installation without tools or dismantling
• Built-in 2.4 GHz W-DMX™ transceiver
• Wireless master-and-slave function
• Wireless DMX, RDM (via DMX and W-DMX™), standard DMX plus standalone modes with automated programs
• IP65 rating for outdoor use
• Temperature controlled fans for optimized operation and low noise
• 16-bit technology for high-resolution colours and dimming

Type	ZENIT
Colour spectrum	RGBW
Number of LEDs	40
LED type	15 W
Average LED lifetime	50000
Refresh rate	Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
Dispersion	18° Beam, 35° Field (without Diffusor)
Lens	PE and tempered glass
DMX input	5-pin IP65
DMX output	5-pin IP65
DMX mode	10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel
DMX Functions	Auto programs, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, RGBW, RGBW Fine, strobe
Standalone modes	Auto programs, colour macro, Device Settings, Master / Slave mode, Static, system info, Tunable White, User Colours
Controls	Enter, Mode, Value Down, Value Up
Indicators	OLED Display
Operating voltage	100 V AC - 240 V AC, 50 - 60 Hz
Power consumption	565 W
power factor	0.96 PF (230V)
Power connector	IP65
Power supply connection	IP65
Housing material	Aluminium
Cabinet colour	Black
Protection class	IP65
Cooling	IP65 temperature-controlled fans
Luminous flux	21000 lm
Efficiency	37.2 lm/W
Operating Temperature	-15 - 45 °C
Other features	ETL certified
Dimensions	463 x 291 x 161 mm
Weight	13 kg
