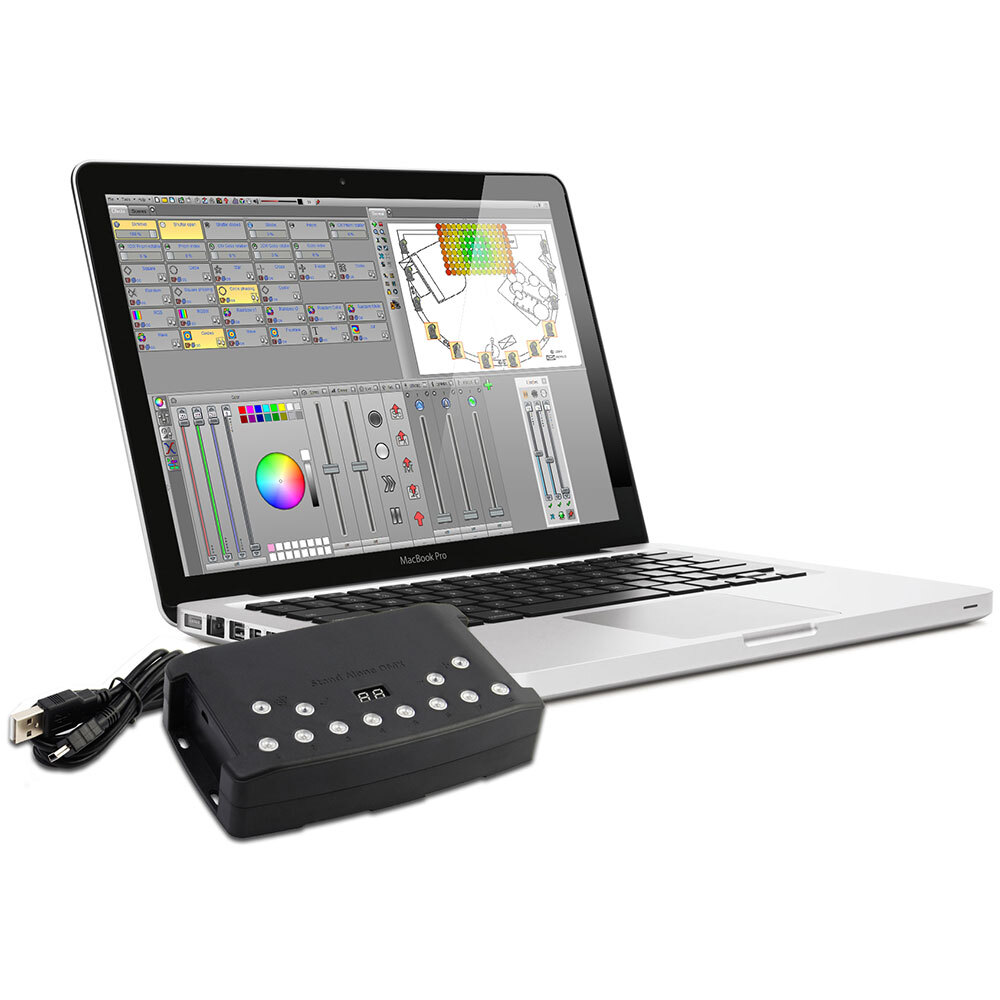

CQSA-512 perfectly combines the power and portability for both entertainment and architectural projects. Supporting up to 5 Zones (scenes) at a time in stand alone. Hardware is compatible with LED Player, Pro DMX and Studio DMX software, so the interface is suitable for all Live applications and fixed installations. The interface can play black a complete project without PC and the new additional SD card slot gives the possibility to extend the memory capacity. The Splitter mode can make your installation more reliable and the USB interface offer more triggering possibilities. Users can customize the interface functions and modes, it is possible to choose what mode to activate or not in Stand alone from any of the available modes (Trigger, Page, Zone, Color, Dimmer, Speed) and load the modes of your choice in memory.
  • 512 in/Out PC and Stand Alone DMX channels
  • SD Card reader and SD compatible (Fat format)
  • 4 Mb of internal memory (min. capacity: 4,000 steps/512 ch)
  • Splitter mode (2×512 DMX output)
  • Scene Speed, manual colour (RGBW), page, Dimmer modes
  • 8 trigger buttons with blue LED
  • 4 buttons for Mode, valid, + and –
  • Standard Mini USB 2.0 (Input) – 5V. DC
  • Master/Slave mode to interconnect and synchronize up to 32 interfaces (32768 dmx channels without pc use)
DMX Output Channels: 512 In/Out channels PC and Stand Alone, default 2x512 Splitter mode
Zone: Zone, play 1 scene/sequence at time in Stand Alone
Memory: Micro SD Card (all FAT format, up to 256 GB) + Internal memory (No SD card required)
DMX Modes: DMX In/Out, DMX Splitter, DMX Record, DMX Trigger
Stand Alone Options: 6 selectable modes: Buttons (8), Pages (10), Zones (5), Colour (99 RGB + 8 RGBW), Commands from the Contacts (Speed, scene, dimmer, zone) Time Clock setting adjustable manually in Stand Alone 16-bit and fine channel management Automatic Scene Recovery if the power is cut off Cross Fade time between scenes Turn Off display after 4s., Default start scene, Dimmer and RGB colour selection Master/Slave mode with Up to 32 devices combined and synchronized (64 universes)
Triggers: 8 Buttons with blue status LED, 10 pages, Real Time Clock and calendar for each scene (Hour, Day, Week, Month, Year) 7 Dry Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority, 127contacts max) Can command the device from the Dry Contacts Can receive RS232 trigger commands in Live and Stand Alone (16 characters max) Infrared Remote, Light intensity (with optional deported PCB and remote)
I/O Connectors: Mini USB 2.0, 3 pin XLR (XLR5 optional)
Power: 5V DC (USB), 5V to 24V - 0.2A (DC connector), 0.2W, High Voltage Protection
Dimensions: 38 x 166 x 97 mm
Weight: 0.21 kg
Certifications: CE ; RoHS

specifications

SKU CQSA-512
Brand Chromateq
Shipping Weight 0.2000kg
Shipping Width 0.140m
Shipping Height 0.050m
Shipping Length 0.200m
