description

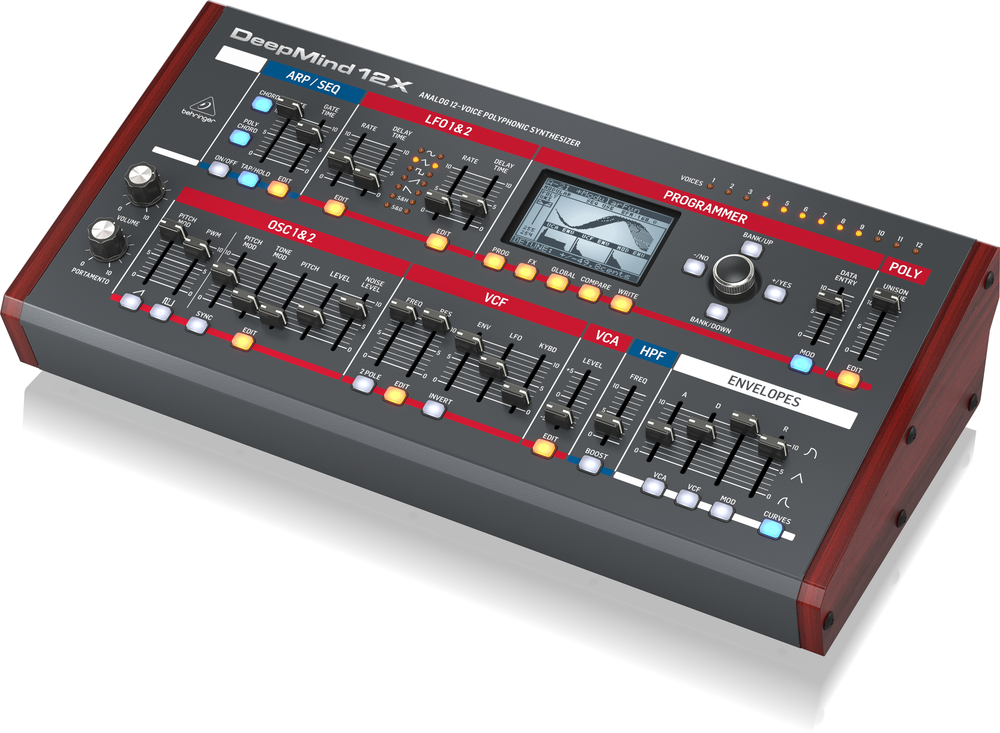

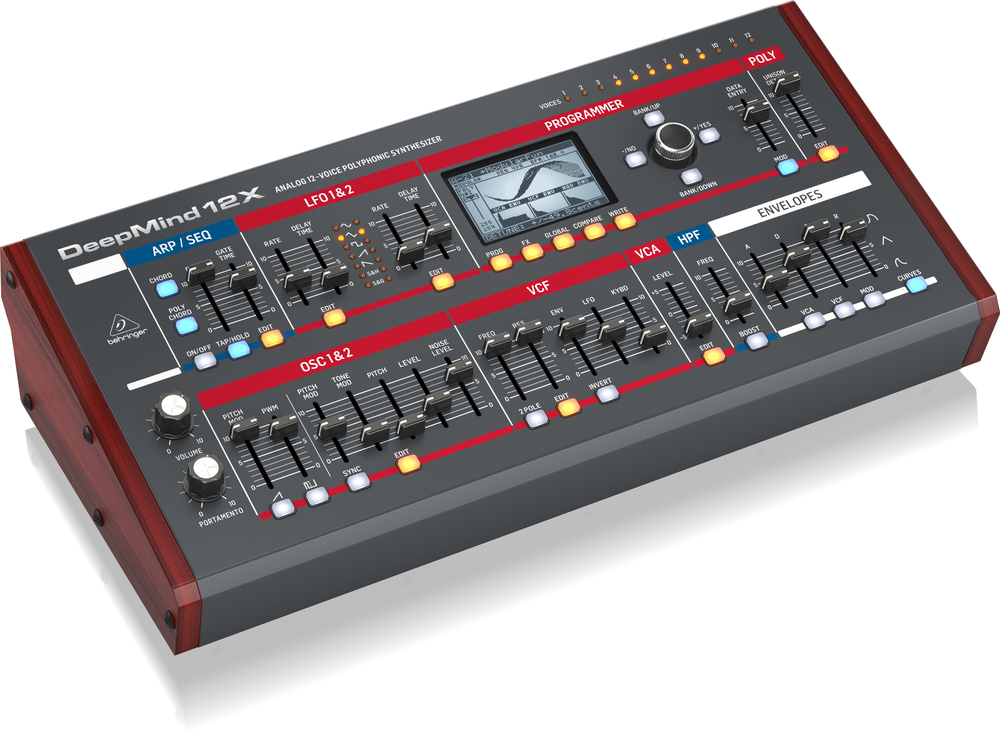

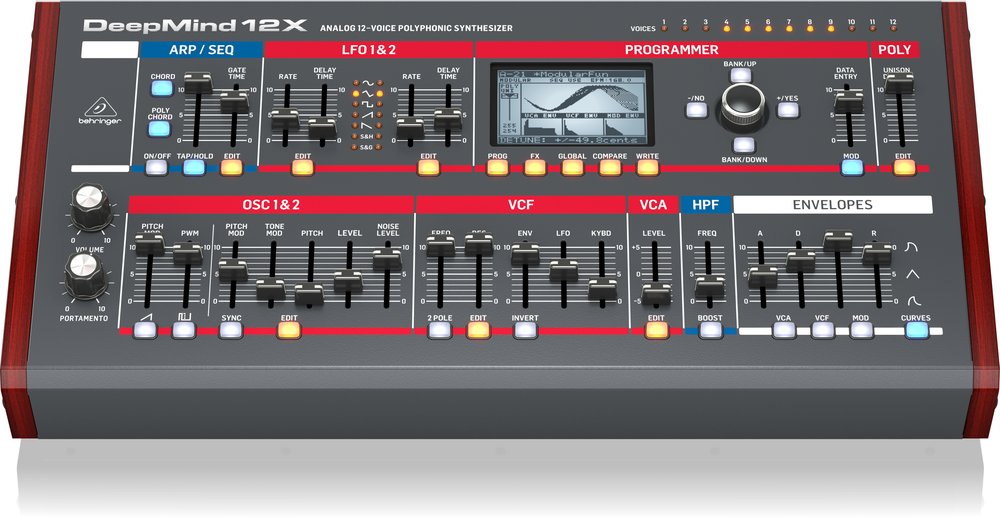

With the creation of the DEEPMIND 12XD, the ultimate true analogue, 12-voice polyphonic synthesizer in a convenient desktop or rack mount format is finally a reality. DEEPMIND 12XD allows you to conjure up virtually any sound you can imagine with unparalleled finesse and ease. Thanks to its 4 FX engines, dual analogue OSCs and LFOs per voice, 3 ADSR Generators, 8-Channel Modulation Matrix and onboard 32-Step Control Sequencer, the DEEPMIND 12XD gives you complete control over your soundscape. Plus, DEEPMIND 12XD features comprehensive remote control via iPad/PC/Mac and selected Android Apps over USB, MIDI or built-in Wi-Fi – for a custom-tailored workflow that lets your creative spirit soar to new heights.

The inspired synthesizer tracks laid down in the 1970s and '80s are etched in the annals of progressive rock and pop music forever, making them truly classic in every sense of the word. DEEPMIND 12XD’s pure analogue signal path with legendary IR3109-style VCFs, stereo VCAs, and 12-voice polyphony lets you recreate all that magic or design the powerful, original sounds that just might make you a legend in your own right. And now with its updated look, you’ll have a striking piece of gear in your setup as well. We also included 4 simultaneous FX engines with over 33 world-class TC Electronic, Midas and Klark Teknik algorithms – including Reverb, Chorus, Flanger, Phaser, Delay, Multiband Distortion, and many more. Custom-designed and physically modelled after some of the most iconic and sought-after processors, DEEPMIND 12XD’s FX were essentially “rebuilt” in the digital domain – and put right at your fingertips. All effects run inside the low-latency environment of the DEEPMIND 12XD, ensuring flawless performance and flexible routing.

Playing chords and building textural soundscapes requires the ability to generate multiple notes or sounds simultaneously. While early analogue synthesizers were either monophonic (only 1 note at a time), or somewhat limited in the number of sounds they could produce at the same time, the DEEPMIND 12XD boosts your creativity with 12-note polyphony. Each voice has 2 oscillators, with OSC 1 generating sawtooth and square/pulse waveforms with pulse width modulation, and OSC 2 generates square/pulse waveforms with a unique tone modulation. With 24 oscillators at your disposal, a tremendous range of options becomes available including the following oscillator modes: Unison 12, 6, 4, 3, 2 Mono; Mono -2; Mono 4; Mono 6; Poly; Poly 6, and Poly 8. The addition of oscillator sync, oscillator drift and parameter drift allow the recreation of the much sought after warmth and movement found in vintage analogue synthesizers, with greatly improved reliability and stability.

Individual voices also have 2 LFOs (Low-Frequency Oscillators) with a range that extends into the audio rate. Each LFO features adjustable slew-rate, modulation delay, key sync, assignable clock sync (internal or external MIDI), envelope auto-triggering, as well as Delay and Fade in. The 7 available waveform shapes are; Sine; Triangle; Square; Ramp Up; Ramp Down; Sample and Hold, and Sample and Glide for an amazing array of tonal options. The DEEPMIND 12XD also offers a highly unusual Phase Link option for the polyphonic LFOs, allowing them to operate in Unison (Mono), or link with an adjustable phase shift between voices. Additionally, the LFOs can track key pitch via the modulation matrix, enabling cross mod type effects.

When it comes to envelope generation, DEEPMIND 12XD has all bases covered, thanks to 3 four-stage ADSR (Attack, Decay, Sustain, Release) envelope generators per voice, each equipped with continuously-variable curves for truly unique flexibility. Envelope Trigger Modes include: Legato, Mono, and Retrigger. The envelopes can be triggered by key, individual LFOs, or the control sequencer and looped well into the audio rate. DEEPMIND 12XD serves up all the versatility and tone-sculpting options a professional musician could ask for. Comprehensive remote control is available for DEEPMIND 12XD via iPad/PC/Mac App over USB, MIDI or built-in Wi-Fi for extended parameter control. The iPad App also features a robust pre-set manager, gig list full editor and integral Patch Morpher.
