description

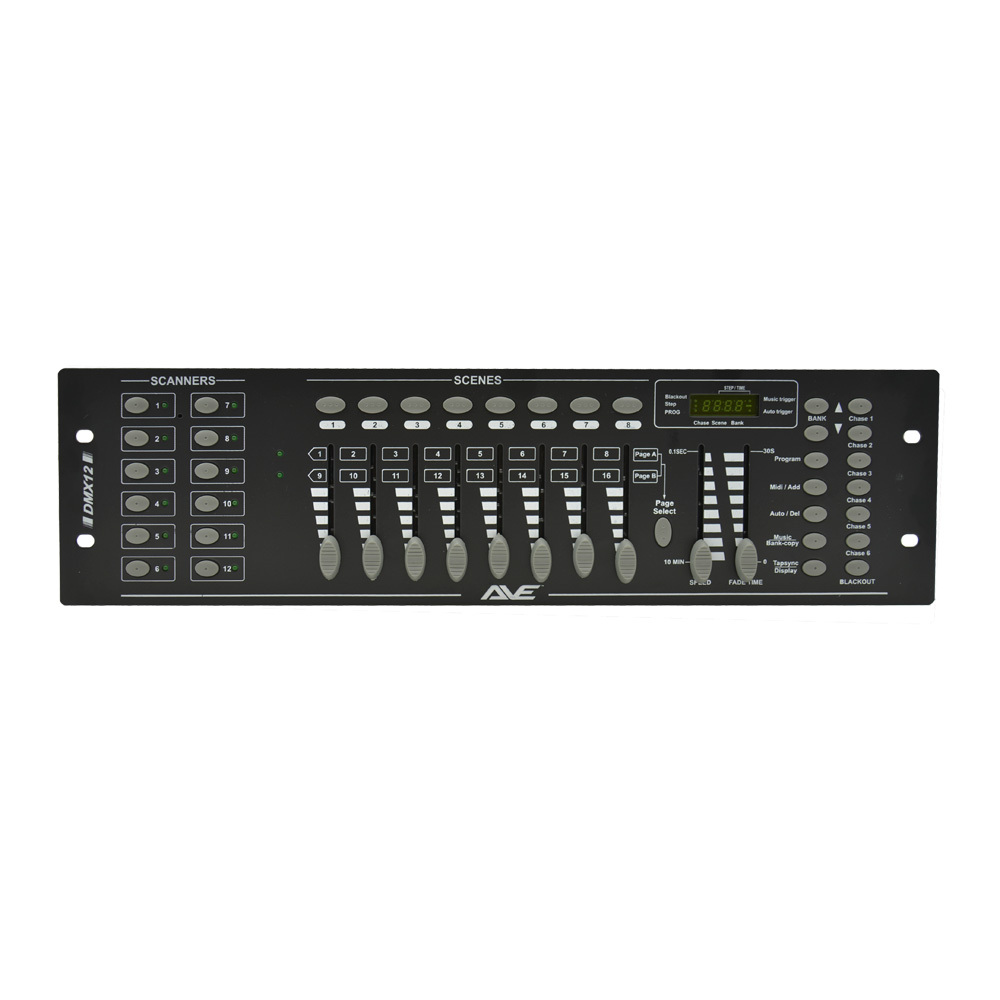

The AVE DMX-12 DMX Controller is a compact and versatile lighting control console designed for managing intelligent lighting fixtures and stage effects. With support for up to 192 DMX channels, it allows control of 12 fixtures with up to 16 channels each. The controller provides 30 banks of scene memory storing up to 240 programmable scenes. With 6 programmable chase programs, you can automate complex lighting transitions for engaging visual effects. A built-in microphone allows the controller to operate in sound-active mode, synchronizing lighting effects with music for immersive shows. Fade and speed controls provide smooth transitions and precise timing when running chases or scene changes.


  • Controls up to 12 DMX fixtures with 16 channels each (192 channels total)
  • 240 programmable scenes stored across 30 banks
  • 6 programmable chase programs
  • Built-in microphone for sound-active lighting
  • Fade and speed controls for smooth transitions
  • LED function and program display
  • MIDI control via 5-pin DIN
  • Compact and intuitive DMX lighting controller

DMX Output Channels 192
Power Supply DC 9V
MIDI 5-pin DIN
DMX Output 1 (3-pin XLR female)
Voltage AC 120/240V 50/60Hz
Dimensions (L x W x H) 516 x 160 x 90mm
Weight 2.5kg

specifications

SKU DMX12
Brand AVE
Shipping Weight 1.8000kg
Shipping Width 0.510m
Shipping Height 0.100m
Shipping Length 0.190m
