AVE DMX24 24-Channel DMX Controller
DMX24
More info
Make 4 payments of $49.75 over 8 weeks and get it now! more info
Notify me when back in stock
30 Days Money Back Guarantee
Over 40 Years In Business
description

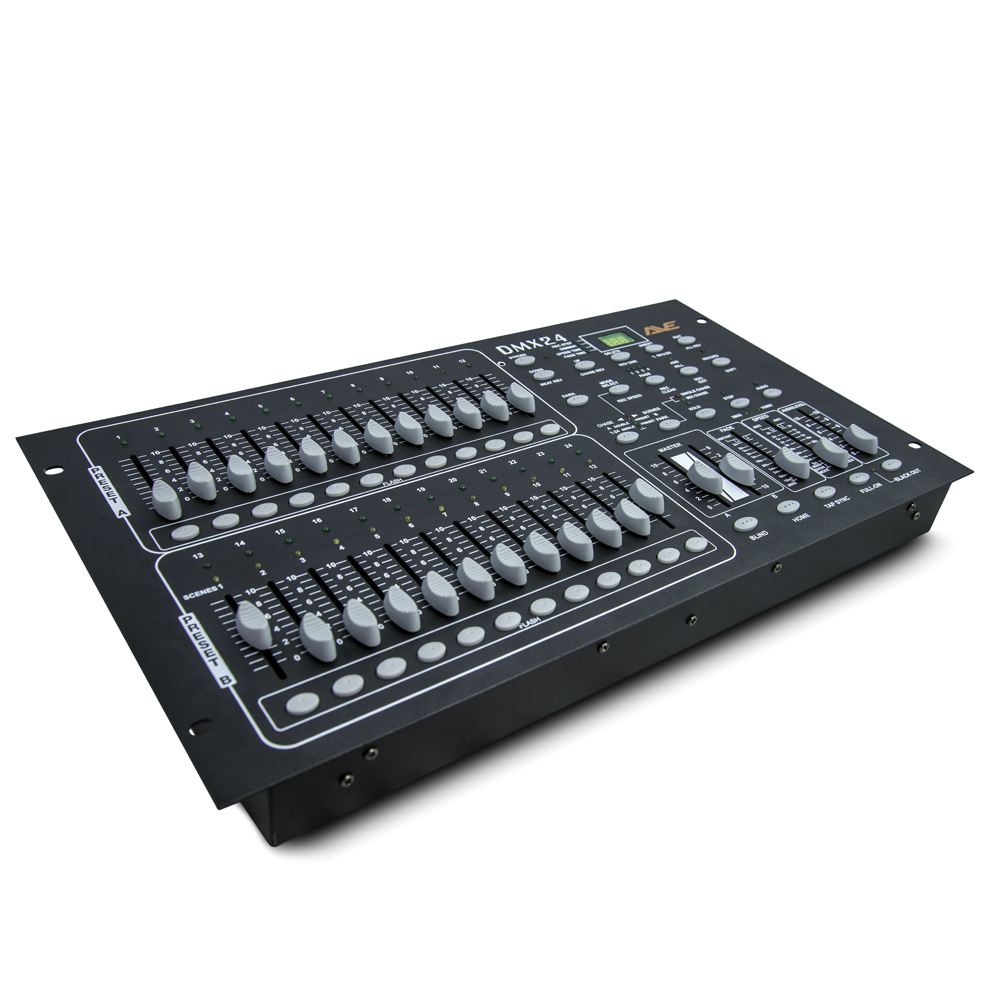

The AVE DMX-24 DMX Controller is a powerful lighting console. It features 24 channel sliders with the functionality of a 48-channel dimming console, allowing precise control over conventional stage lighting and LED fixtures. With 96 programmable scenes and up to 96,000 programmable steps, the controller allows lighting operators to design complex lighting cues and dynamic sequences. A/B master faders provide smooth transitions between scenes, making it ideal for theatrical productions and live events. Additional features such as MIDI connectivity, direct audio input, tap-sync beat activation, and auto-run chase modes allow the controller to integrate easily with music-driven lighting setups.
- 48-channel DMX-512 dimming console
- 96 programmable scences (8 groups of 12)
- 96,000 programmable steps
- Adjustable chase fade times
- Re-assignable channels
- Built-in cross fader, dark and kill buttons
- MIDI in, out and thru
- Direct audio input
- Beat-activation, tap sync, auto run, midi in/out
- 6-space (6U) rack mount
- Polarity selector
| DMX Output Channels | 48 |
|---|---|
| Power Supply | DC 12-18V |
| MIDI | 5-pin DIN |
| DMX Output | 1 (3-pin XLR female) |
| Voltage | AC 120/240V 50/60Hz |
| Dimensions | 570 x 390 x 200mm |
| Weight | 3.2kg |
specifications
| SKU | DMX24 |
| Brand | AVE |
| Shipping Weight | 4.7000kg |
| Shipping Width | 0.390m |
| Shipping Height | 0.200m |
| Shipping Length | 0.570m |
