description

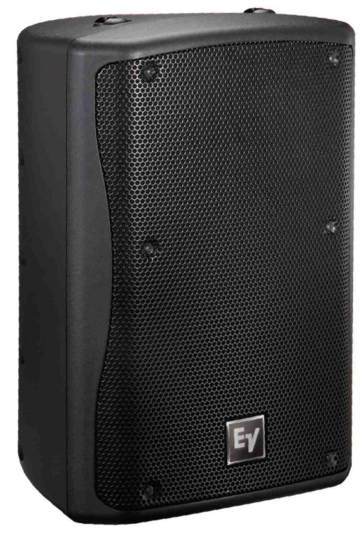

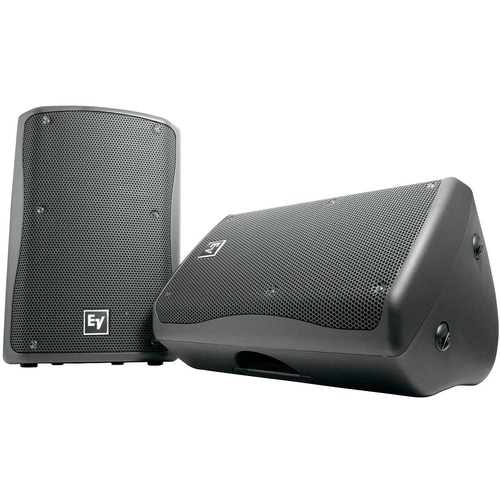

The Electro-Voice ZX3 is a concert designedlightweight 12-inch two-way loudspeaker performance suitable for Bands performance and if withtis built in fly point one of the better speakers for Installation

Featuring the new DVX3121 12-inch woofer and the ND2 neodymium compression driver, ZX3 continues the groundbreaking innovation of the Electro-Voice DVX woofer program, joining the ranks of EVs ZX series between the 8-inch ZX1 and the 15-inch ZX5.

BVecuase it its flexible design it has available, a complete range of optional accessories, including the CB-5 array kit, MB3 wall/ceiling mount bracket, HA-3 handle adapter for use with the VSA-1 strong arm mount, and TCA-1 truss clamp adapter, allow ZX3 to be easily and precisely configured in multiple box arrays, mounted on truss or tripods, deployed as monitors, or used as system mains with a subwoofer.
Housed in a stylish yet rugged injection molded enclosure,

 ZX3 shares the same functionality as the larger ZX5, with 90° x 50° or 60° x 60° horn dispersion patterns, 45° or 55° monitor angles, passive or bi-amp operation, and seven M8 rigging points. ZX3 is available in a weatherized version and in either black or white finish. The optional HDC-3 heavy duty stackable cover is also available.

  • Versatile performance for mains, fills, or monitors
  • DVX3121A woofer with forced-air cooling
  • 2-inch ND2 titanium/neodymium HF driver
  • Passive crossover
  • Choice of 90º x 50º or 60º x 60º coverage horn
  • High sensitivity, 131 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • High-impact polypropylene enclosure
  • Compact monitor-friendly wedge shape
  • Up to four anchor-plate attachments
  • M8 mounting inserts (7)
  • Integrated handle
  • Available in black and white

specifications

  • Input Connections    2 conductor SJO cable and gland nut
  • Nominal Impedance    8 Ω
  • Speaker Type    Full-range
  • Frequency Response (-3 dB)    58 - 15000 Hz
  • Frequency Response (-10 dB)    48 - 20000 Hz
  • Internal Crossover    Yes
  • Recommended High-Pass Frequency    50 Hz
  • Sensitivity 1 W/1 m    97 dB
  • Max. SPL/1m (calc)    131 dB
  • Coverage (Nominal -6 dB) H    90/60 °
  • Coverage (Nominal -6 dB) V    50/60 °
  • System Power Handling (Continuous/Program/Peak)    600//2400 Watts
  • LF Transducer    12-inch DVX3121A
  • LF Power Handling    500 Watts
  • HF Power Handling    40 Watts
  • HF Transducer    2-inch ND2
  • Crossover Frequency    2000 Hz
  • Minimum Impedance    6.2 Ω
  • Enclosure Material    High Impact Polystyrene
  • Flying    Yes
  • Outdoor    Yes
  • Grill    Polyester Powder Coated, 18GA Galvanized Steel
  • Height    24.13" (613 mm)
  • Width    15.63" (397 mm)
  • Depth    14.25" (362 mm)
  • Weight Net    19.8 kg (43.65 lbs)
SKU ZX3-60B
Brand Electro Voice
