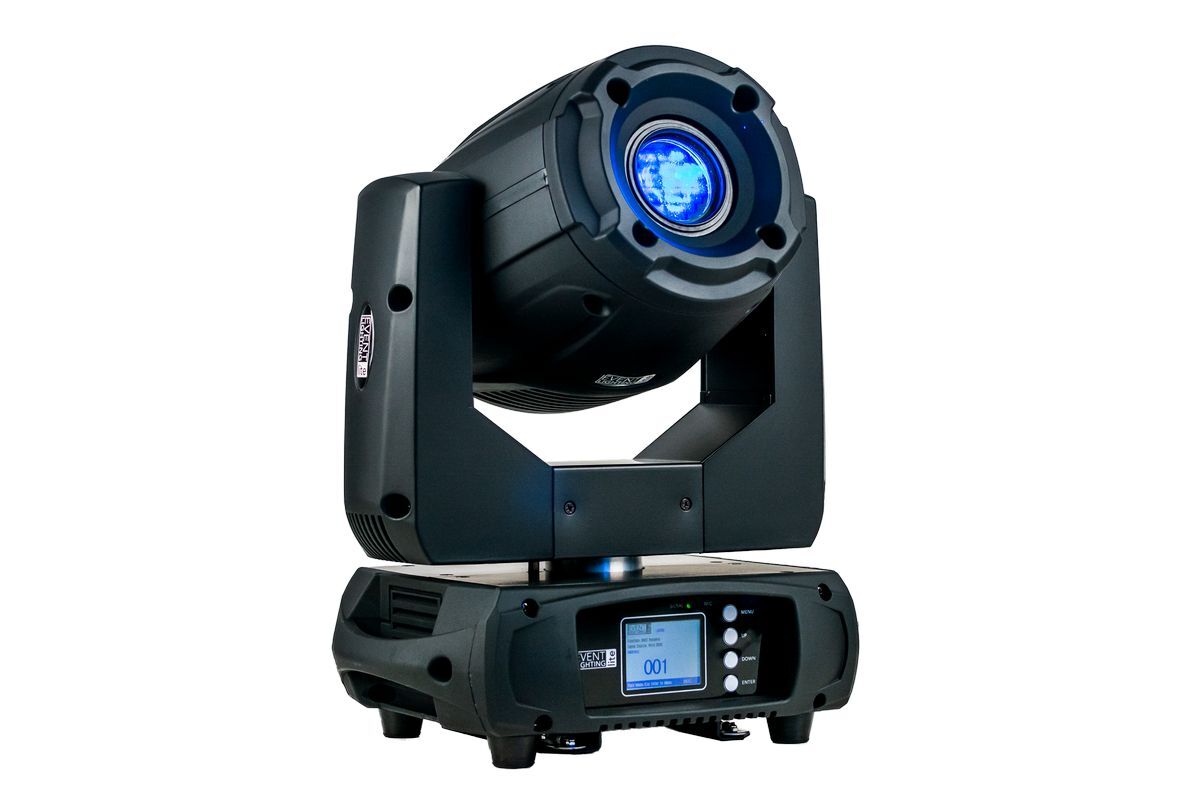

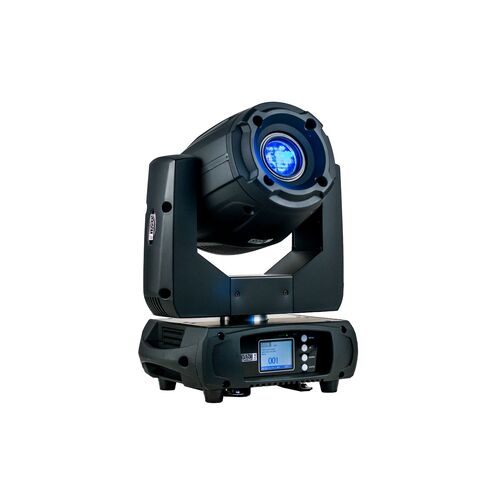

Event Lighting LM180 - 180W LED Spot Moving Head

This 180W LED spot has a 16-degree beam angle, 1x colour wheel (7+open), 2x gobo wheels, fixed (8+open), rotating (6+open). A linear focus of 2.5-30m and 3 facet prism with useful tools such as sound activation, built-in programs and pan/tilt limit modes. This unit also has the option of wireless DMX.

Photometric

  • Light Source: 180W White LED 7,500K
  • Beam Angle: 16°
  • Output: 19,120lux @ 2.5M
  • PWM: 1,000Hz
  • LED Lifespan: 50,000hours

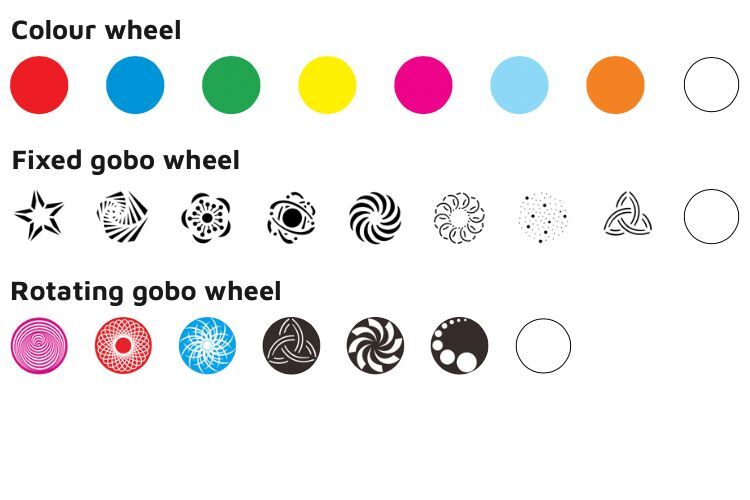

Colour

  • 1 colour wheel (7 Colours + Open)

Gobo

  • Fixed: 1 x (8 + open) fixed gobo wheel
  • Rotating: 1 x (6 + open) interchangeable rotating gobo wheel (Interchangeable gobo - outside ø24mm, inside ø17mm).

Effects

  • Prism: 3-facet
  • Dimming: 0~100%
  • Strobe: 1.2~17Hz
  • Focus: 2.5~30m linear via DMX

Movement

  • 8/16 – bit, auto-reposition
  • Pan: 360°/540°/630°
  • Tilt: 90°/180°/270°
  • Limit mode: Centre/Corner/Edge

Power

  • Input Voltage: 90~260V AC, 50/60Hz
  • Power Consumption: 225W
  • Connection: PowerCon in/out
  • Fuse: F4A, 250V

Control

  • Protocol: DMX512
  • Operation modes: DMX, manual, auto, sound active, master/slave
  • DMX Channels: 14/16
  • Interface: 3-pin XLR in/out
  • Built-in Programming: Yes
  • Sound Active: Yes
  • Display: 4-button 2.4inch TFT LCD display control panel

Housing

  • Materials: Metal & flame retardant ABS
  • Finishing: Matte black
  • IP rating: IP20
  • Cooling: Fan
  • Net Weight: 10.5kg
  • Rigging: 2pcs omega brackets with 1/4-turn quick locks

Optional Accessories

  • Road case: LM2CASEL
  • Wireless DMX: WDMXLM

specifications

SKU LM180
Brand Event Lighting
