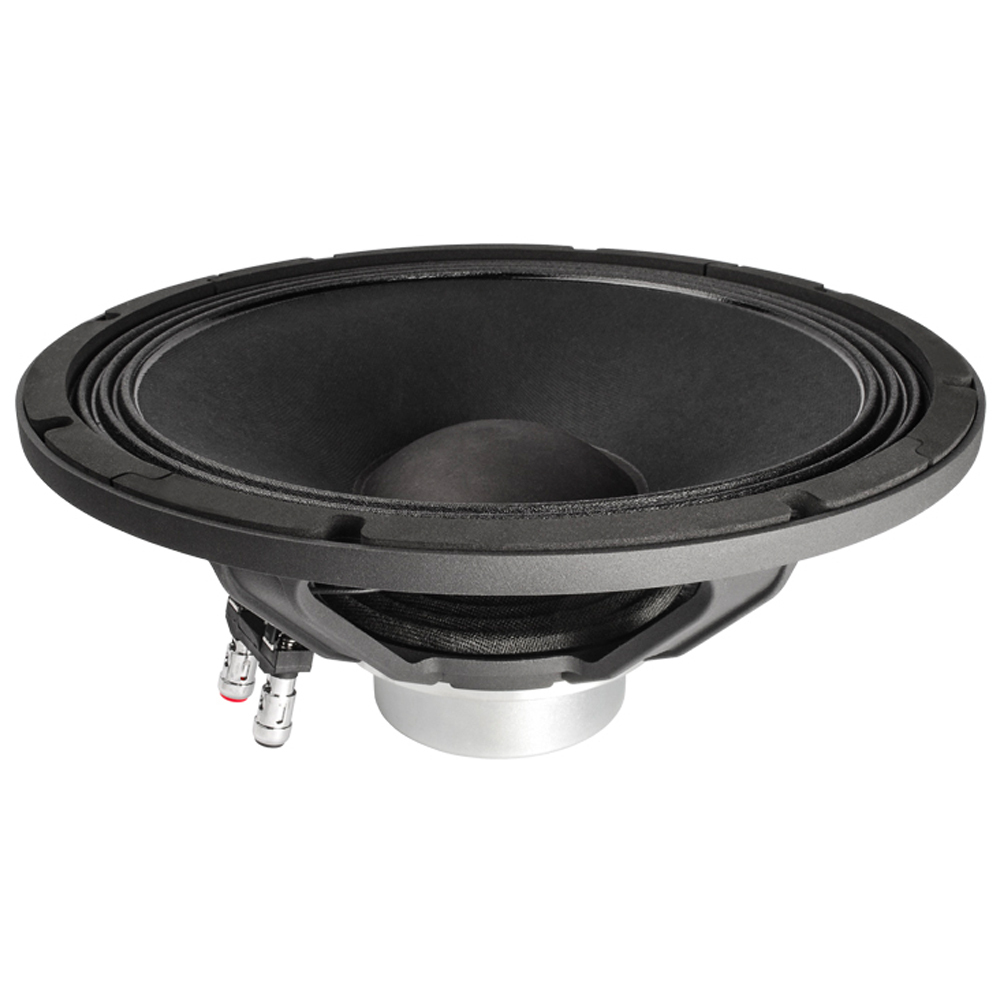

Faital Pro FA-12PR320-8 LF Loudspeaker 12-Inch Driver 300W – 8 Ohm

Immerse yourself in the world of high-fidelity audio with the Faital Pro FA-12PR320-8 LF Loudspeaker. This 12-inch driver is more than a mere component; it’s a sonic masterpiece meticulously crafted for audio enthusiasts who demand excellence.

Craftsmanship Beyond Compare

The FA-12PR320-8 boasts an impressive construction designed for optimal performance. With a Nominal Diameter of 300 mm (12 in), an Overall Diameter of 316 mm (12.44 in), and a Baffle Cutout Diameter of 282 mm (11.10 in), it ensures a seamless integration into your audio setup. In fact, the 12 mm (0.47 in) Flange and Gasket Thickness contribute to its robust build.

Unparalleled Technical Prowess

Delve into the technical brilliance of this loudspeaker. The 8 Ohm Nominal Impedance, coupled with a Minimum Impedance of 6.4 Ohm, guarantees compatibility with a variety of audio setups. Furthermore, with AES Power Handling ranging from 300 W to a maximum of 600 W, this driver delivers a dynamic and powerful audio experience.

Sensitivity Redefined FA-12PR320

Featuring a remarkable Sensitivity of 97 dB at 1W/1m, the FA-12PR320-8 ensures that every nuance of your audio is faithfully reproduced. The wide Frequency Range of 45÷5000 Hz caters to a diverse array of musical genres. Therefore, it makes it a versatile choice for audiophiles.

Innovative Design for Superior Performance

The FA-12PR320-8’s voice coil, with a diameter of 65 mm (2.56 in) and crafted from high-quality Aluminum and Glass Fiber, contributes to its exceptional performance. Also, the Triple Roll Cone Surround and a unique 1x variable height waves Spider Profile guarantee precise sound reproduction.

Magnetic Precision and Efficiency

Powered by a Neodymium Slug Magnet with a Flux Density of 1.2 T. Therefore, this loudspeaker ensures precise magnetic control, translating into an audio experience that’s rich, detailed, and immersive.

• Nominal Diameter: 300 mm (12 in)
• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 298.5 mm (11.75 in)
• Baffle Cutout Diameter: 282 mm (11.10 in)
• Depth: 120 mm (4.72 in)
• Flange and Gasket Thickness: 12 mm (0.47 in)
• Net Weight: 2.75 kg (6.1 lb)

Nominal Diameter:	300 mm (12 in)
Overall Diameter:	316 mm (12.44 in)
Bolt Circle Diameter:	298.5 mm (11.75 in)
Baffle Cutout Diameter:	282 mm (11.10 in)
Depth:	120 mm (4.72 in)
Flange and Gasket Thickness:	12 mm (0.47 in)
Net Weight:	2.75 kg (6.1 lb)
Dimensions:	350 x 346 x 190 mm
Shipping Weight:	3.4 kg
Nominal Impedance:	8 Ohm
Minimum Impedance:	6.4 Ohm
AES Power Handling (1):	300 W
Maximum Power Handling (2):	600 W
Sensitivity (1W/1m):	97 dB
Frequency Range:	45 - 5000 Hz
Voice Coil Diameter:	65 mm (2.56 in)
Winding Material:	Al
Former Material:	Glass Fiber
Winding Depth:	17.4 mm (0.69 in)
Magnetic Gap Depth:	8 mm (0.31 in)
Flux Density:	1.2 T
Magnet:	Neodymium Slug
Basket Material:	Aluminum
Demodulation:	No
Cone Surround (3):	Triple Roll
NET Air Volume filled by Loudspeaker:	1.9 dm^3
Spider Profile:	1x variable height waves
