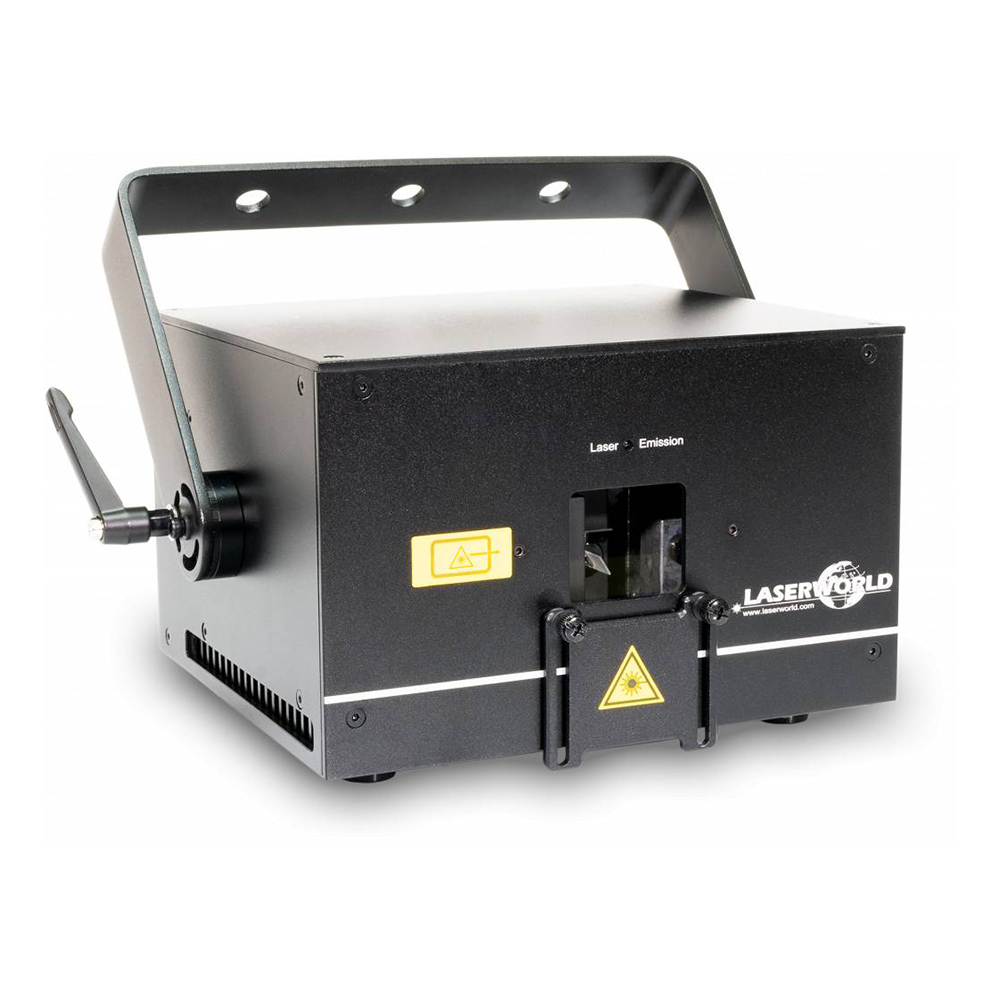

Laserworld DS-1000 RGB ShowNET Laser System

DS-1000RGB MK3 from Laserworld is an RGB ShowNET laser system. This semi-professional high power full colour laser has a built-in multi-control mainboard. It provides incredible DMX control with built-in safety features. As a result, controlling numerous units as well as the rest of your DMX lighting is made simple. Included is a full-featured laser show software licence. Low-maintenance sealed optics section for a super-quiet, fanless system that's ideal for small- to medium-sized nightclub installations for indoor events and mobile DJs.

Pure Diode laser sources are the only laser sources included with the Laserworld DS-1000RGB MK3 units. The only laser sources that come with the Laserworld DS-1000RGB MK3 units are Pure Diode laser sources. As a result, it boasts gorgeous analogue colour modulation and superb beam characteristics. In addition to having a built-in network DAC for Showcontroller and Showeditor, the Laserworld DS-1000RGB MK3 devices may be controlled with any ILDA laser control software, such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via an external ILDA interface (e.g. FB3). They also include a built-in memory with pre-programmed patterns that are easily triggered in stand-alone mode utilising DMX. The Laserworld DS-1000RGB MK3 comes with free laser show software and an integrated ShowNET network connectivity. Since they are easy to use, offer a range of features, and are very tiny, the Laserworld Diode Series devices are utilised by both professionals and amateurs. They have excellent beam specs with lovely analogue colour modulation. The Laserworld DS-1000RGB MK3 units may be controlled with any ILDA laser control software, such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via an external ILDA interface in addition to having a built-in network DAC for Showcontroller and Showeditor (e.g. FB3). Additionally, they include a built-in memory with pre-programmed patterns that can be readily activated in stand-alone mode using DMX. An integrated ShowNET network interface and free laser show software are included with the Laserworld DS-1000RGB MK3. The Laserworld Diode Series devices are used by both novices and experts since they are simple to operate, have a variety of features, and are very small and light.

Versatile Laser

The green diode in the Laserworld DS-1000RGB MK3 operates at 250 mW / 520 nm and has a 200 mW / 638 nm output. The blue diode has a 700 mW/450 nm wavelength. Beam characteristics are excellent. In contrast to the scanners' maximum scanning angle of 50°, which is 3 mm/0.9 mrad full angle, scanning can occur at speeds of up to 40 kpps@8° ILDA. including switchable and integrated scan safety. Sealed Housing technology was also used to construct the entire projector. The maintenance intervals can be kept very short as a result.

Product specifications

• 1’000 mW guaranteed power
• Graphics capable – 40 kpps@8° ILDA
• Max scan angle 50°
• Full-colour mixing – analog modulation
• Extremely sharp intense beams – 3mm beam diameter and low divergence of 0,9 mrad
• Save safety settings direct to the laser and they apply in all modes

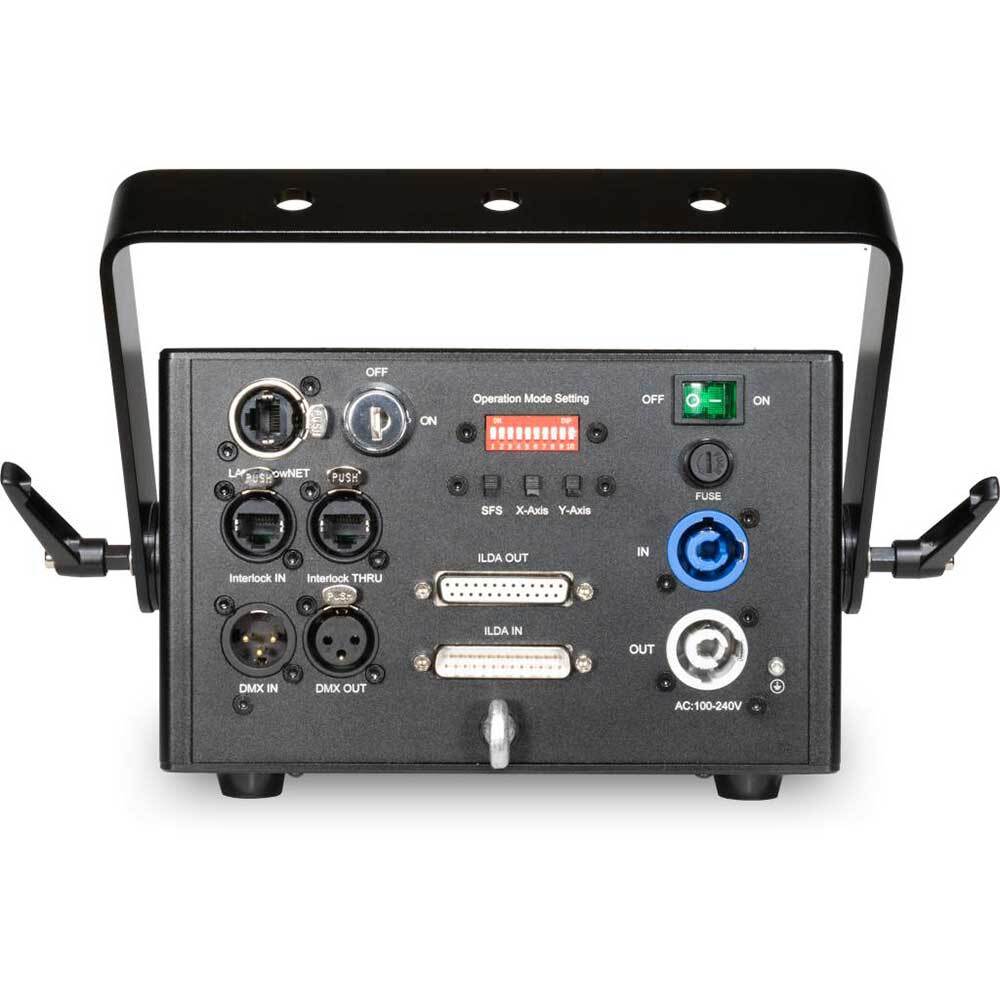

• Link multiple units by linking Power, DMX and ILDA
• Free computer control software – Showeditor – upgradable to Showcontroller
• Multiple control modes – Auto, DMX, Artnet and ILDA
