M-Live B.Beat PLUS 256Gb Performance Video and Audio Player

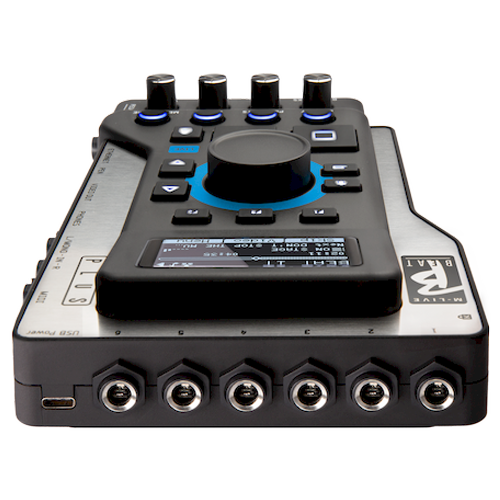

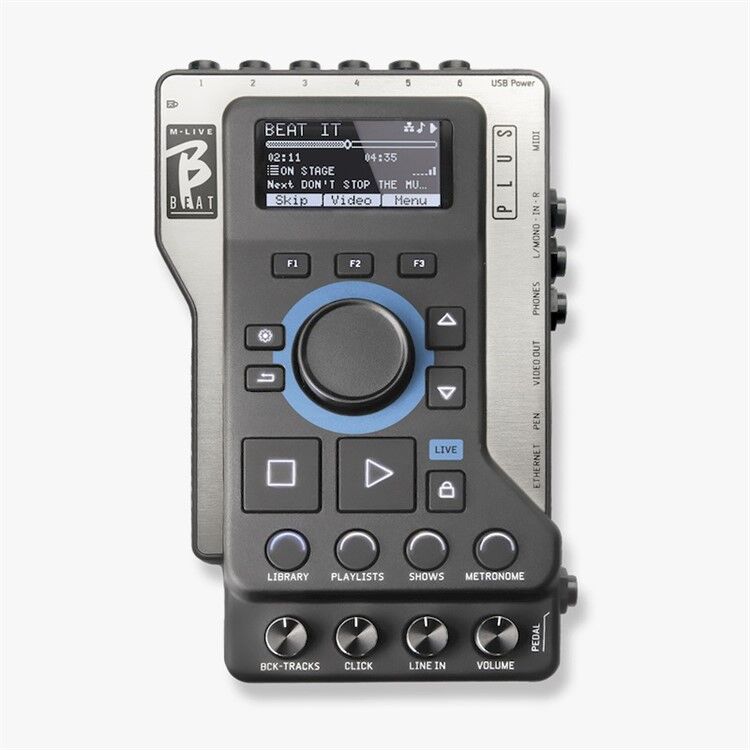

The M-Live B.Beat Plus is a compact, laptop-free performance playback hub designed to run backing tracks (stems/multitrack), MIDI cues, and synchronized video/images in a live show, with hands-on control from the unit itself.

B.Beat PLUS  is the perfect device to optimize and simplify live performances of bands that use stereo or multitrack sequences, even with video and images. With B.Beat on stage you no longer need computers, tablets, audio/video cards, cables, mixers: B.Beat manages the sequences and leaves the pleasure of playing, without worries.

With the PLUS version, you have greater flexibility and control: easily create Markers to manage LOOPS on stage. Optimise video effects and easily manage the Modeller for your guitar.

• Plays backing tracks and multitracks, including stems, and can play images and videos in time with the song.
• Wirelessly transmits lyrics, chords, and stage content, such as scores, to tablets and phones using Wi-Fi; depending on your configuration, this usually involves the M-Pen ecosystem.
• Designed with a stage-friendly mixer concept in mind, it has two inputs, six independent outputs, and a headphone output with click routing. This allows you to feed FOH with distinct stems while maintaining your own click/monitoring workflow.

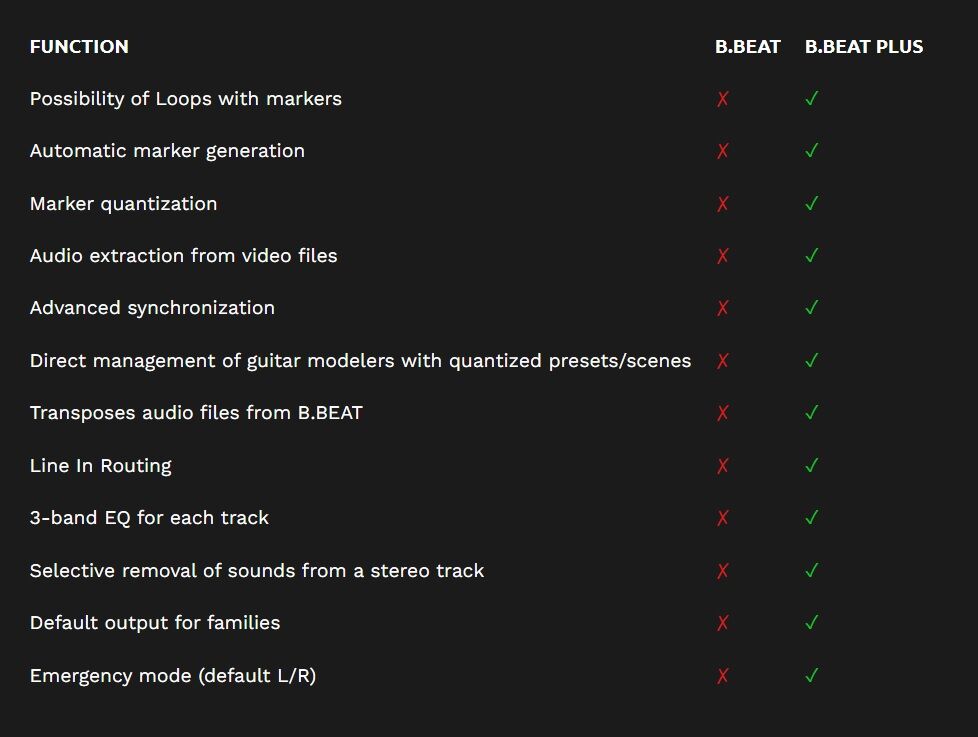

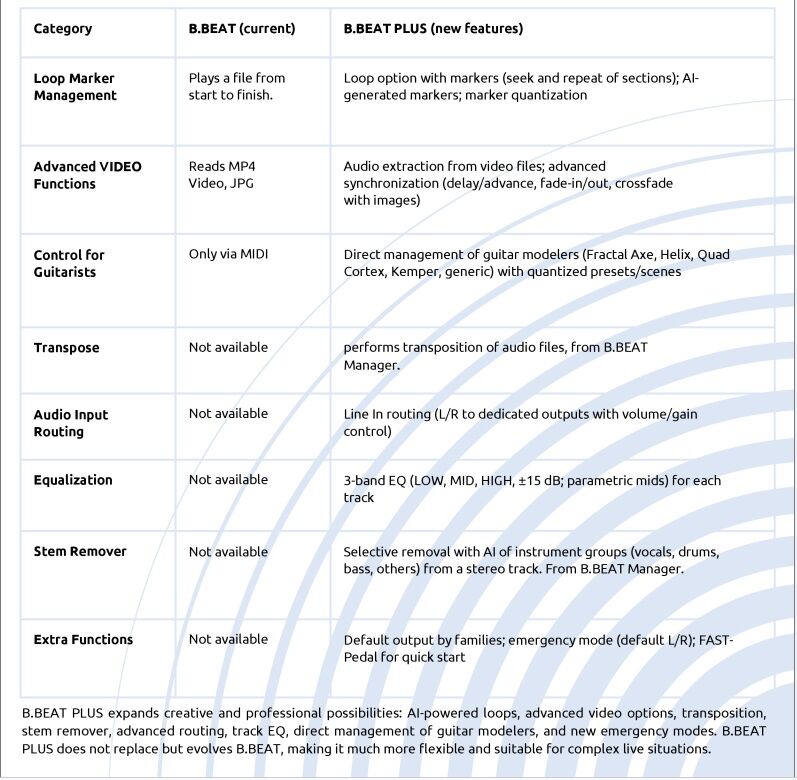

"Plus" features (new or enhanced)

• Loop management using markers (develop loops/jump points for adaptable live compositions).
• More control over the playing presentation; crossfades, fade in/out, and other advanced video management features.
• Transpose (background track pitch altering).
• Stem Remover (remove/isolate parts for rehearsal/arrangement adjustments, such as drums, bass, and vocals).
• Advanced routing and per-track audio features, including 3-band EQ on each track.

Key specs (high level)

• Storage: 256 GB internal.
• Audio playback formats: WAV/MP3/OGG/AAC + stems; supports M-Live multitrack (up to 16 mono or 8 stereo tracks via MTA).
• Video/image formats: MP4/MOV/AVI + JPG/PNG; HDMI up to 1920×1080.
• I/O & control: 6 balanced outputs, 2 inputs, headphone out, pedal start/stop, MIDI out, Ethernet, USB-A for external media.
• Power: USB-C (can be run from a suitable power supply or a power bank).
• Software workflow: multitrack prep/management via B.Beat Manager (Windows/Mac)

Multitrack Audio and Video Player

Audio formats: Wav, MP3, OGG, AAC, Stems

• MTA (M-Live Multitrack Audio) with up to 16 mono or 8 stereo tracks
• Video and picture formats: MP4, MOV, AVI, JPG, PNG
• Transfers lyrics and chords to tablets via Wi-Fi (separately available M-Pen required, not included)

Display: 2.4" OLED
Video management: crossfade/fade in/out/audio track extraction
Manage and create your own multitrack files using the free B.Beat Manager app (Windows/Mac)
Set markers with a single click and create loops on stage

• 3-Band EQ for each track
• Transposition
• Direct management of guitar amp modellers
• 6x 6.3 mm mono jack output (balanced)
• 2 line inputs L/R mono or left stereo: 6.3 mm jack
• 1 headphone output 6.3 mm stereo jack (incl. metronome)
• Pedal connection: Start/Stop

CONNCECTIONS

• Ethernet connection
• HDMI output: max. resolution 1920 x 1080
• USB-A (2.0) for external storage media
• Power supply: USB-C 5.1V DC, 3A or powerbank 10,000 mAh/2.4A
• Storage capacity: 256 GB
• Thread for bracket: M5

Dimensions Weight

• W x D x H) in mm: 125 x 220 x 55
• Weight: 0.55 kg
• Includes power supply unit, RJ45 network cable and operating instructions
