description



MAIN FEATURES

  • 108 high-quality AMP models

  • 43 IR based factory speaker cab models

  • Tri-voice polyphonic synthesizer module

  • TONE CAPTURE for sampling the tonal characteristics of guitar, amplifier, stomp box, and cabinet to create new digital preamp models, new impulse response files.

  • 164 high-quality effects

  • Programmable FX loop with optional signal chain routing.

  • Stereo outputs (1/4’’ and XLR) with independent signal chain routing.

  • MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.

  • PROGRAMMABLE footswitches with user selectable LED colors and assignable functions, allowing complete user customization of control scheme.

  • Direct, low latency USB audio.

  • 30 minutes loop station with undo/redo, direct dubbing, reverse + 1/2 speed effects. Looper sessions can be stored and backed up for import /export of audio files.

  • High-precision programable TUNER will make sure you’re in-tune at all times.

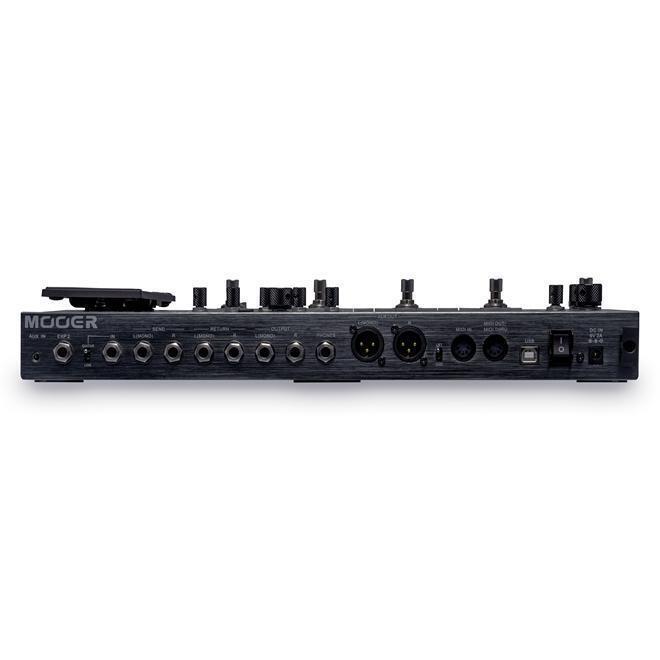

CONNECTIONS

AUX IN Connect external media devices for audio playback by 1/8” stereo jack.

INPUT Instrument input¼” mono jack with Guitar/Line level switch.

OUTPUT 2 x ¼” mono jack.

XLR OUT 2 x Balanced XLR output with Ground lift switch.

USB Type-B USBConnect to a computer to record direct digital audioInterface with official MOOER software to edit and import/export presetsSupport firmware update via USB.

MIDI IN For providing channel selection via MIDI commands from external devices.

MIDI OUT For controlling external devices with GE300 and creating effects presets for each preamp channel.

PHONES Dedicated headphone output¼” stereo jack

SEND/RETURN Integrated stereo effects loop.

EXP2 External expression pedal input. This can also be used as an external switching output. ¼” stereo jack



SPECIFICATIONS







Algorithm



NO. of Effect Blocks

15

NO. of Effect Types

317

Patches

256 (Preset)

IR Loading

20 slots

IR Format

.wav

IR Sampling Rate

44.1kHzFull Sampling rate supported

IR Sampling Accuracy

24 Bits

IR Sampling Points

512 / 1024 / 2018 Points

















Input

Input

Type

1/4” unbalanced mono audio jack

Impedance

Guitar: 1Meg ohm

Line: 10k ohm

Maximum Input Level

+12 dBu

Return

Type

1/4” unbalanced mono audio jack X 2

Impedance

1Meg ohm

Maximum Input Level

+12 dBu

Aux In

Type

1/8” unbalanced Stereo audio jack

Impedance

100k ohm

Maximum Input Level

+12 dBu

A/D Conversion

Sampling  Rate

44.1 kHz

Sampling Accuracy

24bit

Dynamic

114 dB

Frequency

20Hz – 20kHz, +0 / -1 dB

















Output

Output

Type

1/4” unbalanced mono audio jack X 2

Impedance

470 ohm

Maximum Output Level

+12 dBu

XLR Output

Type

XLR balanced output X 2

Impedance

300 ohm

Maximum Output Level

+18 dBu

Send

Type

1/4” unbalanced mono audio jack X 2

Impedance

100 ohm

Maximum Output Level

+12 dBu

Phones

Type

1/4” unbalanced Stereo audio jack

Impedance

16 ohm

Maximum Output Level

+12 dBu

D/A Conversion

Dynamic

114 dB

Frequency

20Hz – 20kHz, +0 / -1 dB











Others

MIDI

MIDI IN / OUT (THRU)

5 Pin Female Connector

USB

Type

USB Type B

USB Audio

USB 2.0, 2 IN 2 OUT, 44.1kHz, 24bit

EXP2 External Expression Jack

Type

1/4” TRS jack

Impedance

10k – 100k ohm

Power Supply

DC 9V, 3A,

Dimensions

410mmX201mmX62mm

Weight

3.0 kg

Accessories

Power Supply, USB Cable, Quick Guide manual.



-->

The Mooer GE300 is the latest flagship multi-effect instrument processor in Mooer's impressive amp modeling and multi-effects lineup. By combining the fantastic Micro Preamp series with state of the art "tone capture" instrument matching technology, tri-voice polyphonic synthesizer module, and a wide-range of guitar effects and tools, the GE300 is an incredibly powerful live performance and studio tool.



The GE300 contains dual-DSP processors delivering breathtakingly detailed delay, reverb, modulation and amp models. Thanks to the intuitive and simple UI, controls, and connection ports, the GE300 is an all-in-one working station for musicians.





MAIN FEATURES

  • 108 high-quality AMP models

  • 43 IR based factory speaker cab models

  • Tri-voice polyphonic synthesizer module

  • TONE CAPTURE for sampling the tonal characteristics of guitar, amplifier, stomp box, and cabinet to create new digital preamp models, new impulse response files.

  • 164 high-quality effects

  • Programmable FX loop with optional signal chain routing.

  • Stereo outputs (1/4’’ and XLR) with independent signal chain routing.

  • MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.

  • PROGRAMMABLE footswitches with user selectable LED colors and assignable functions, allowing complete user customization of control scheme.

  • Direct, low latency USB audio.

  • 30 minutes loop station with undo/redo, direct dubbing, reverse + 1/2 speed effects. Looper sessions can be stored and backed up for import /export of audio files.

  • High-precision programable TUNER will make sure you’re in-tune at all times.



CONNECTIONS

AUX IN Connect external media devices for audio playback by 1/8” stereo jack.

INPUT Instrument input¼” mono jack with Guitar/Line level switch.

OUTPUT 2 x ¼” mono jack.

XLR OUT 2 x Balanced XLR output with Ground lift switch.

USB Type-B USBConnect to a computer to record direct digital audioInterface with official MOOER software to edit and import/export presetsSupport firmware update via USB.

MIDI IN For providing channel selection via MIDI commands from external devices.

MIDI OUT For controlling external devices with GE300 and creating effects presets for each preamp channel.

PHONES Dedicated headphone output¼” stereo jack

SEND/RETURN Integrated stereo effects loop.

EXP2 External expression pedal input. This can also be used as an external switching output. ¼” stereo jack



SPECIFICATIONS







Algorithm



NO. of Effect Blocks

15

NO. of Effect Types

317

Patches

256 (Preset)

IR Loading

20 slots

IR Format

.wav

IR Sampling Rate

44.1kHzFull Sampling rate supported

IR Sampling Accuracy

24 Bits

IR Sampling Points

512 / 1024 / 2018 Points

















Input

Input

Type

1/4” unbalanced mono audio jack

Impedance

Guitar: 1Meg ohm

Line: 10k ohm

Maximum Input Level

+12 dBu

Return

Type

1/4” unbalanced mono audio jack X 2

Impedance

1Meg ohm

Maximum Input Level

+12 dBu

Aux In

Type

1/8” unbalanced Stereo audio jack

Impedance

100k ohm

Maximum Input Level

+12 dBu

A/D Conversion

Sampling  Rate

44.1 kHz

Sampling Accuracy

24bit

Dynamic

114 dB

Frequency

20Hz – 20kHz, +0 / -1 dB

















Output

Output

Type

1/4” unbalanced mono audio jack X 2

Impedance

470 ohm

Maximum Output Level

+12 dBu

XLR Output

Type

XLR balanced output X 2

Impedance

300 ohm

Maximum Output Level

+18 dBu

Send

Type

1/4” unbalanced mono audio jack X 2

Impedance

100 ohm

Maximum Output Level

+12 dBu

Phones

Type

1/4” unbalanced Stereo audio jack

Impedance

16 ohm

Maximum Output Level

+12 dBu

D/A Conversion

Dynamic

114 dB

Frequency

20Hz – 20kHz, +0 / -1 dB











Others

MIDI

MIDI IN / OUT (THRU)

5 Pin Female Connector

USB

Type

USB Type B

USB Audio

USB 2.0, 2 IN 2 OUT, 44.1kHz, 24bit

EXP2 External Expression Jack

Type

1/4” TRS jack

Impedance

10k – 100k ohm

Power Supply

DC 9V, 3A,

Dimensions

410mmX201mmX62mm

Weight

3.0 kg

Accessories

Power Supply, USB Cable, Quick Guide manual.
