description
"A press patch box is a special audio signal splitter, which is developed for the specific requirements of a press conference. Via separate inputs, you can connect either a microphone or a line signal (mixer output).
Also available as a stereo version (PPB20S)

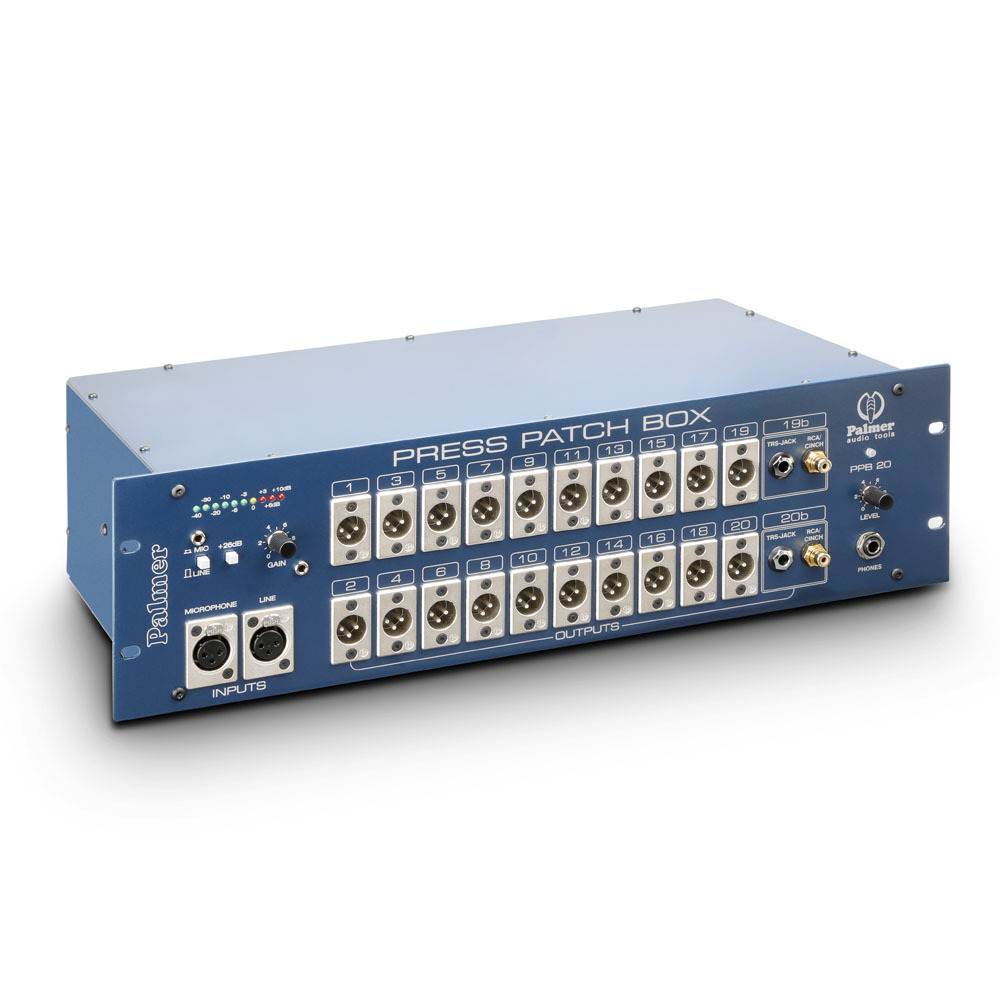

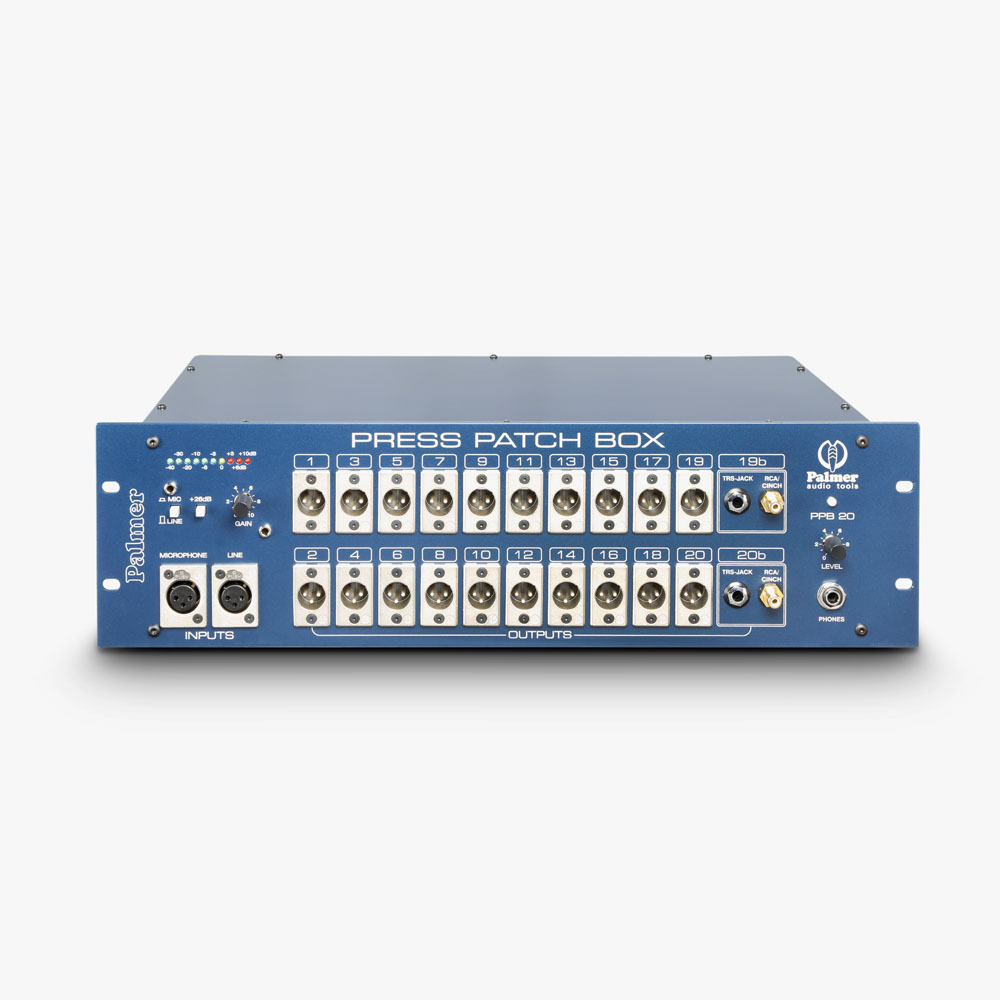

A high-quality input amplifier with balanced earth-free input allows for a level adjustment over a wide range. 20 transformer-balanced XLR/m jacks with individual driver circuits in pairs are available as outputs for video cameras or other sound recording devices.
The nominal output level is +4 dBu at 600 ohms. In addition, channels 19 and 20 are equipped with TRS phone jacks for balanced or unbalanced signals and with RCA sockets (-10 dBu nominal level).

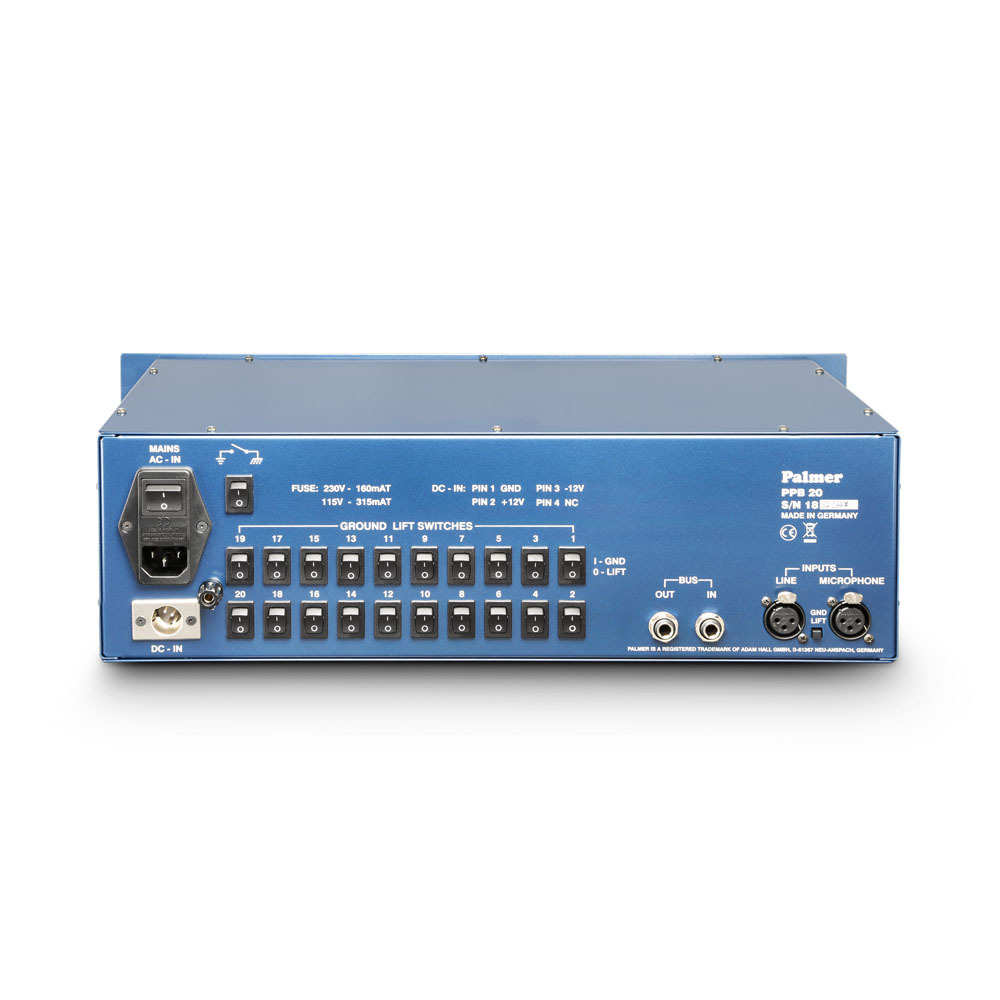

If more than 20 outputs are required, further PPB20 units can be cascaded via a BUS IN/OUT socket on the rear panel. A 10-fold LED chain and an adjustable headphone amplifier are used for signal monitoring (display range -40 to +10 dB, 0 dB display corresponds to +4 dBu output).

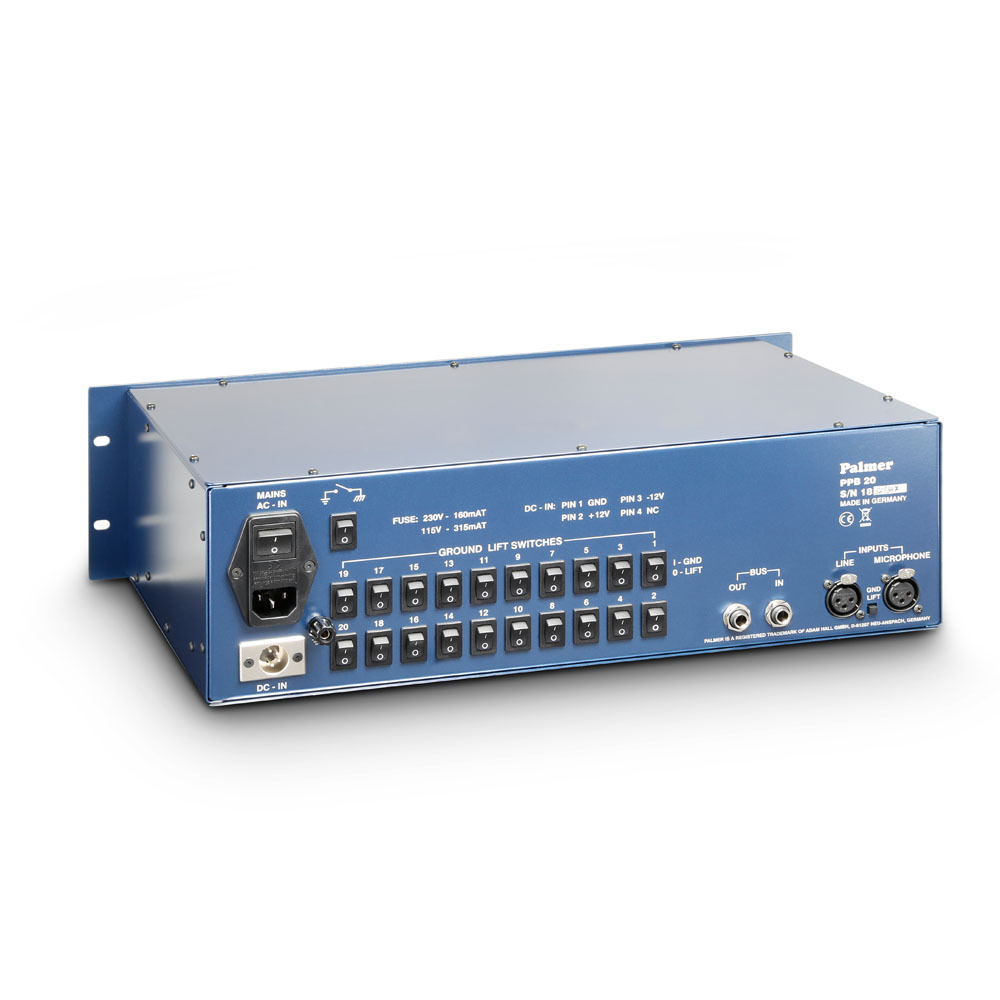

The PPB20 has a built-in shielded power pack. An additional DC input allows for battery operation or using an emergency power supply. PW4 is a suitable emergency power supply for two PPB20.
"
specifications
| SKU | PAL-PPB20 |
| Barcode # | 4049521049545 |
| Brand | Palmer |
| Shipping Weight | 9.6700kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.002m |
| Shipping Length | 0.005m |
