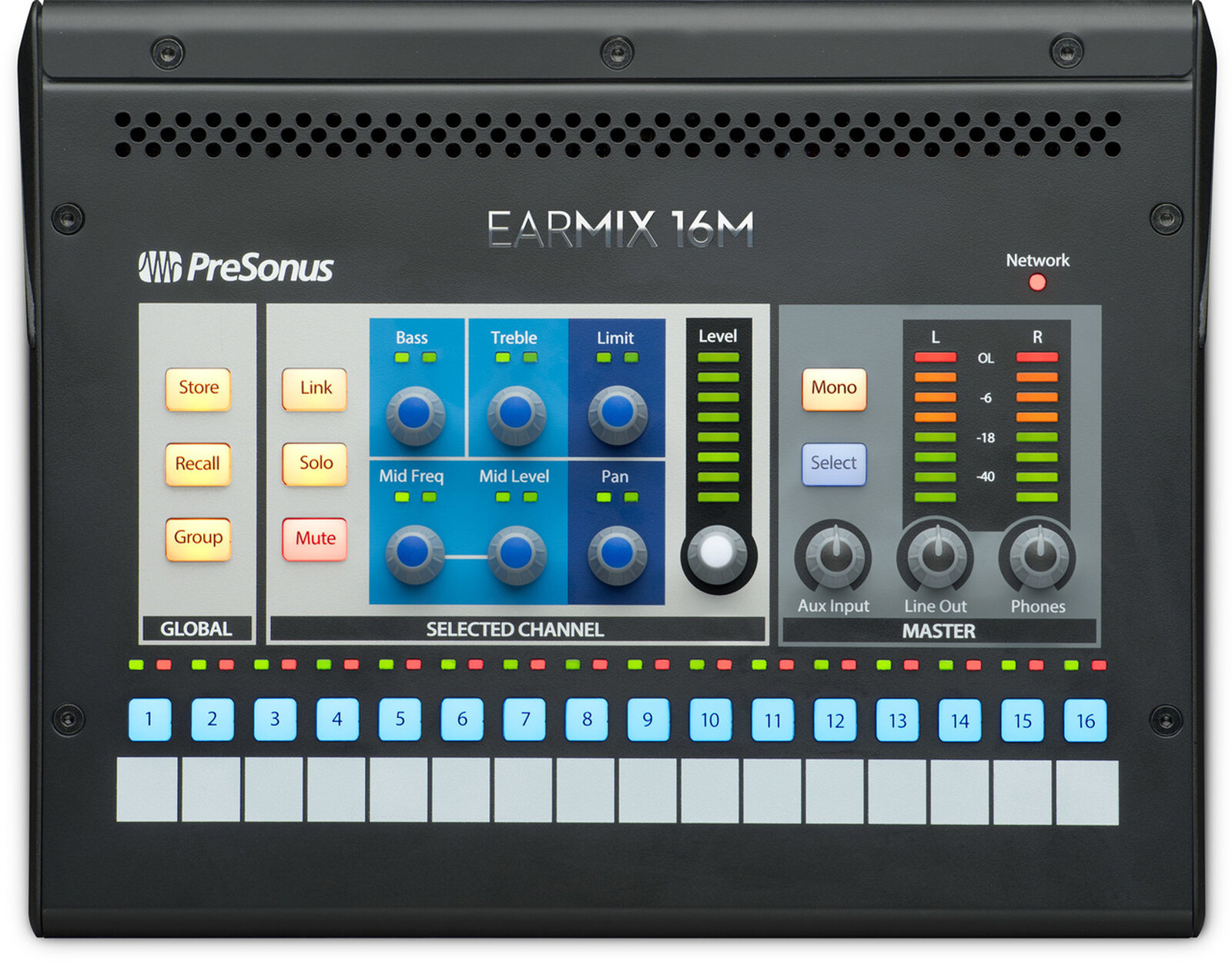

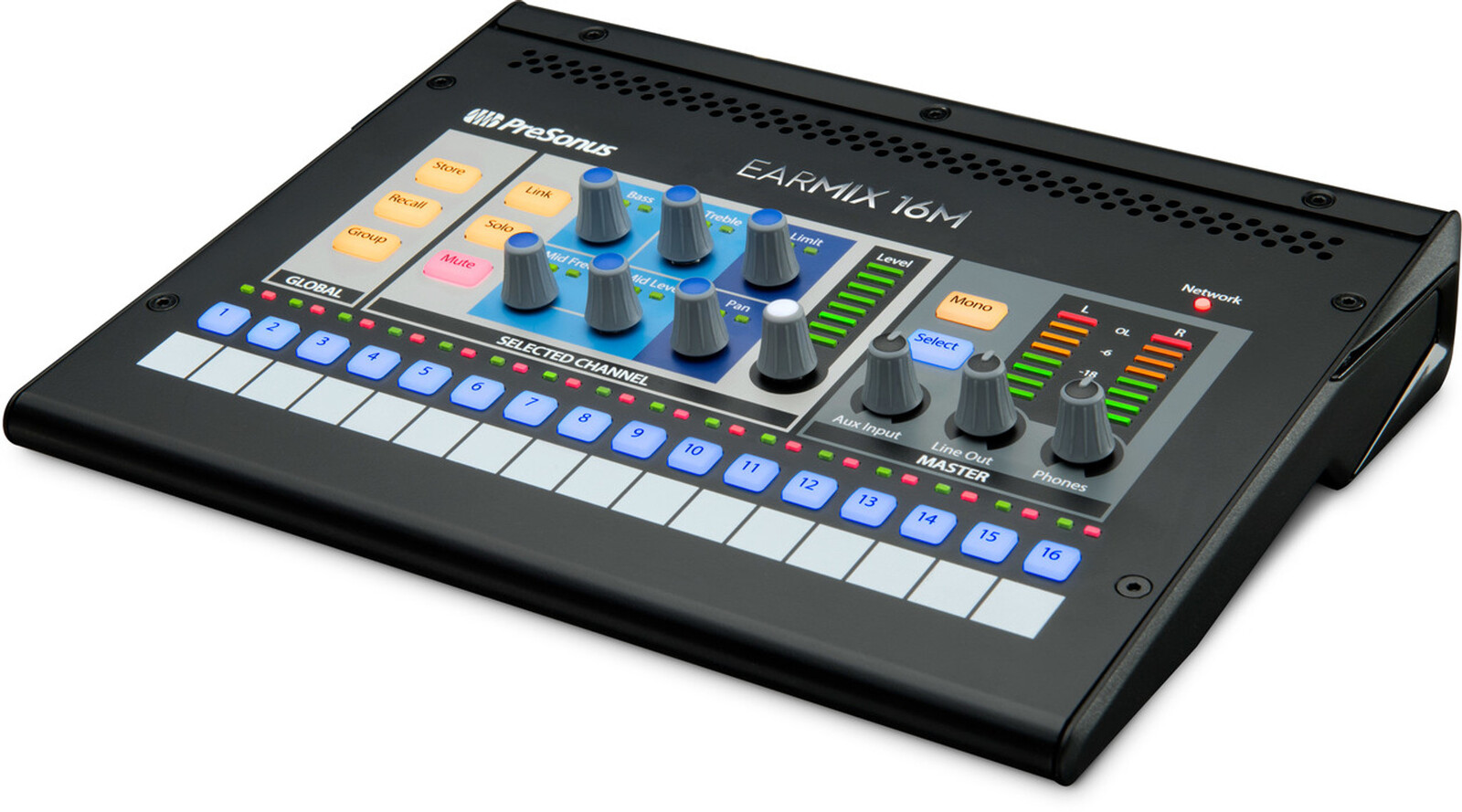

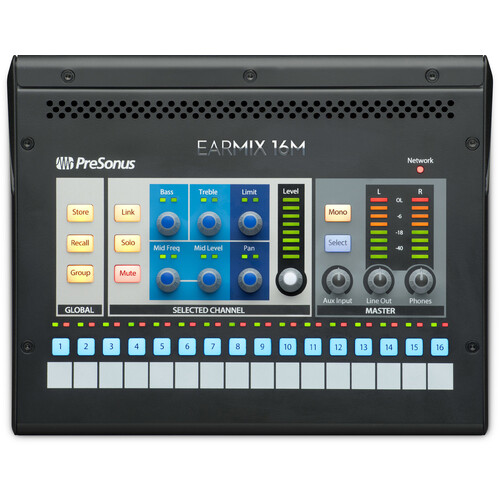

PreSonus EarMix16M 16x2 AVB Networked Personal Monitor Mixer

Designed to work seamlessly with the PreSonus® StudioLive® Series III family of mixers, yet compatible with other AVB-enabled systems, the PreSonus EarMix™ 16M personal monitor mixer provides a high-quality, expandable, networked monitoring solution for stage, installed sound systems, and studio recording. EarMix 16M has fully professional sound quality, build quality, and features, including a high-performance headphone amplifier, to ensure you have the monitoring you need for any situation. Each EarMix 16M accepts 16 mono channels of input via AVB networking—and you can network multiple units with a StudioLive Series III mixer.

High-quality monitoring is crucial for artists to deliver their best performance, so EarMix 16M has a loud, clear headphone amplifier that can drive low-impedance devices such as professional-calibre in-ear-monitors. PreSonus started with a top of the line digital-to-analog converter for the best dynamic range and signal-to-noise ratio. They took special care in the amplifier design to deliver excellent sound with a wide range of in-ear monitors and headphones with different impedances. Controls and inputs can be customized on each unit to allow each musician to create a mix that works best for them. Once you’ve perfected a set of monitor mixes, save the whole scene to internal memory; you can store and recall up to 16 mix scenes locally.

The EarMix 16M can be powered with its included external power supply but in many cases—such as when it’s difficult to provide power across multiple onstage locations—it’s better to use Power over Ethernet (PoE). PoE is a technology that enables network cables to carry electrical power to compatible devices. With PoE, a single cable delivers both network data, such as digital audio, and electrical power. You can locate a PoE-enabled device anywhere you can run an Ethernet cable because you don’t need a local power source. Moreover, PreSonus’ SW5E five-port AVB switch enables you to connect multiple EarMix 16Ms to the AVB network and provides PoE.

One EarMix 16M is a beautiful thing but the system really shines when you need monitoring for the whole band. A pair of AVB jacks enable you to chain multiple EarMix 16Ms while also connecting to a StudioLive Series III mixer. You can expand even further by chaining EarMix 16Ms from multiple PreSonus SW5E AVB switches. Once you’ve created your AVB network, setting up EarMix 16M routings from a networked StudioLive Series III console or using free PreSonus UC Surface control software for Mac, Windows, iPad, and Android is fast and easy.

EarMix 16M’s connectivity, AVB networking with PoE, and PreSonus’ famed hardware/software integration give you all the tools you need to create a truly professional personal monitoring system that can serve even the largest ensembles. They've remembered the little things, too, like an optional microphone stand mount. Best of all, thanks to loud, clear headphone amps, high-end converters, and top-quality signal processing, EarMix 16M delivers exceptional sound quality that will further enhance your hard-earned reputation as an audio professional.

Features:

• Accepts 16 mono channels of input via AVB networking
• Network multiple units with a StudioLive Series III mixer
• Headphone amplifier can drive low-impedance devices such as in-ear-monitors
• Mix scene Store and Recall; store up to 16 mix scenes locally
• Power over Ethernet (PoE)

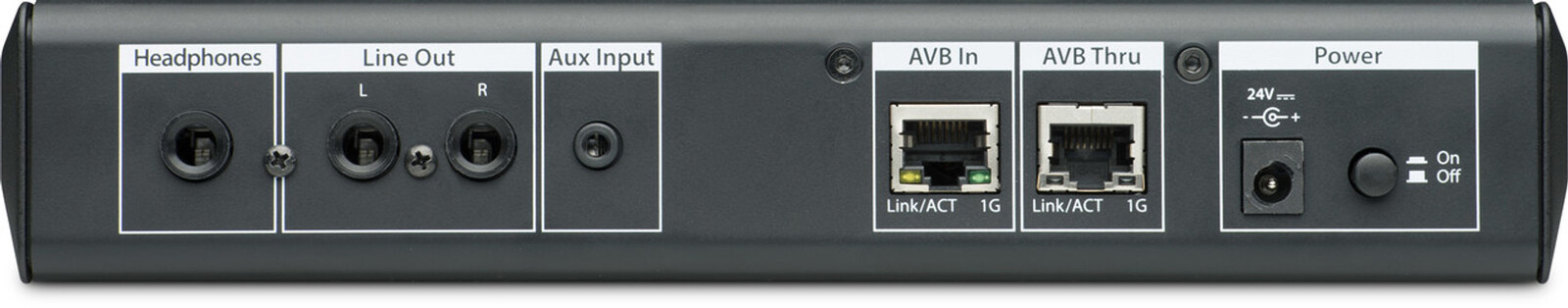

• 1/8-inch stereo aux input
• 2 x Balanced ¼-inch TRS line outputs
• 3-band EQ with sweepable mid frequency on all channels and main mix
• 8-segment stereo output meter
• 2 AVB Ethernet ports
• 24 bit, up to 48 kHz operation

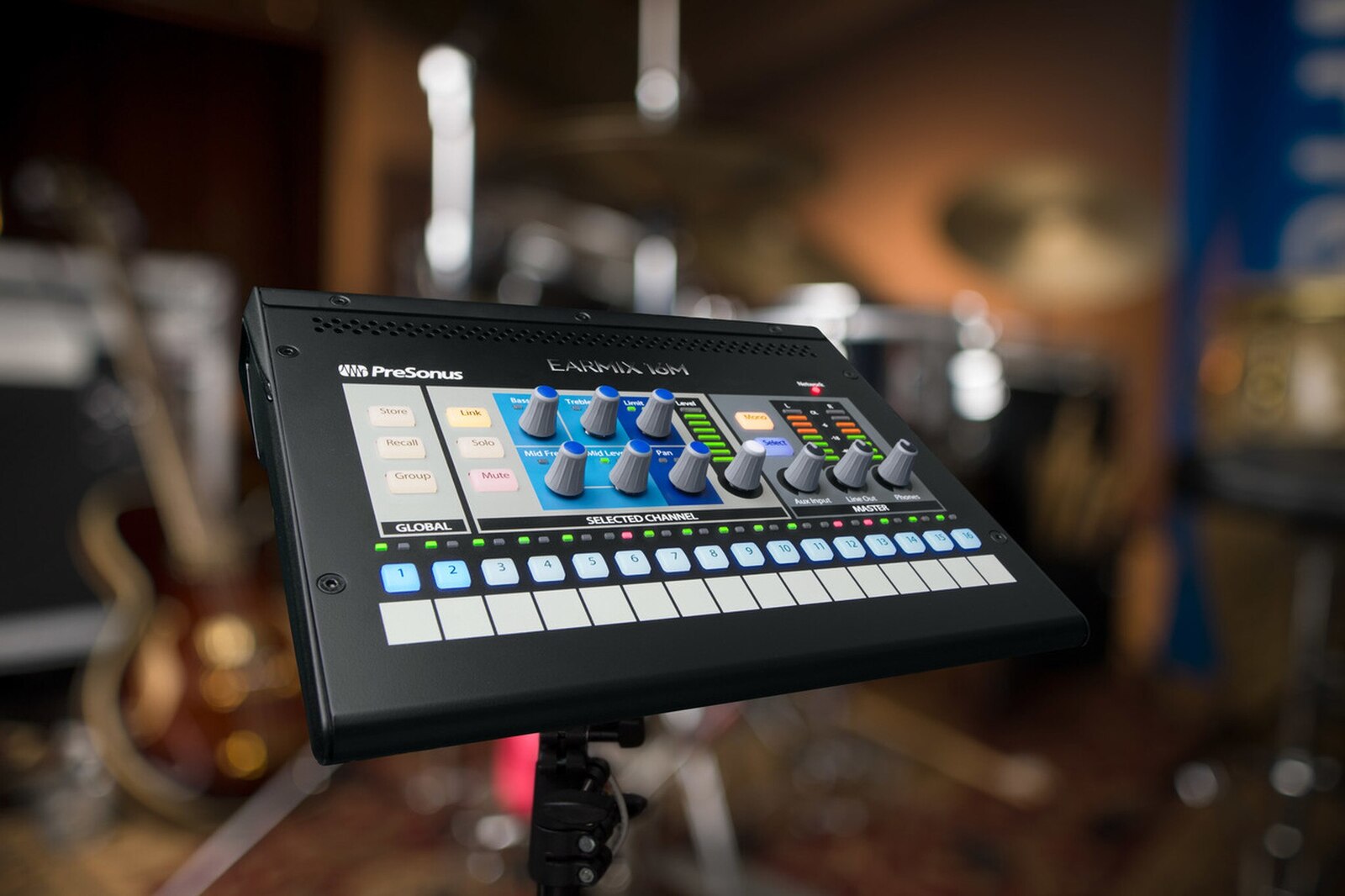

• Mic stand mounting option (sold separately)
