description

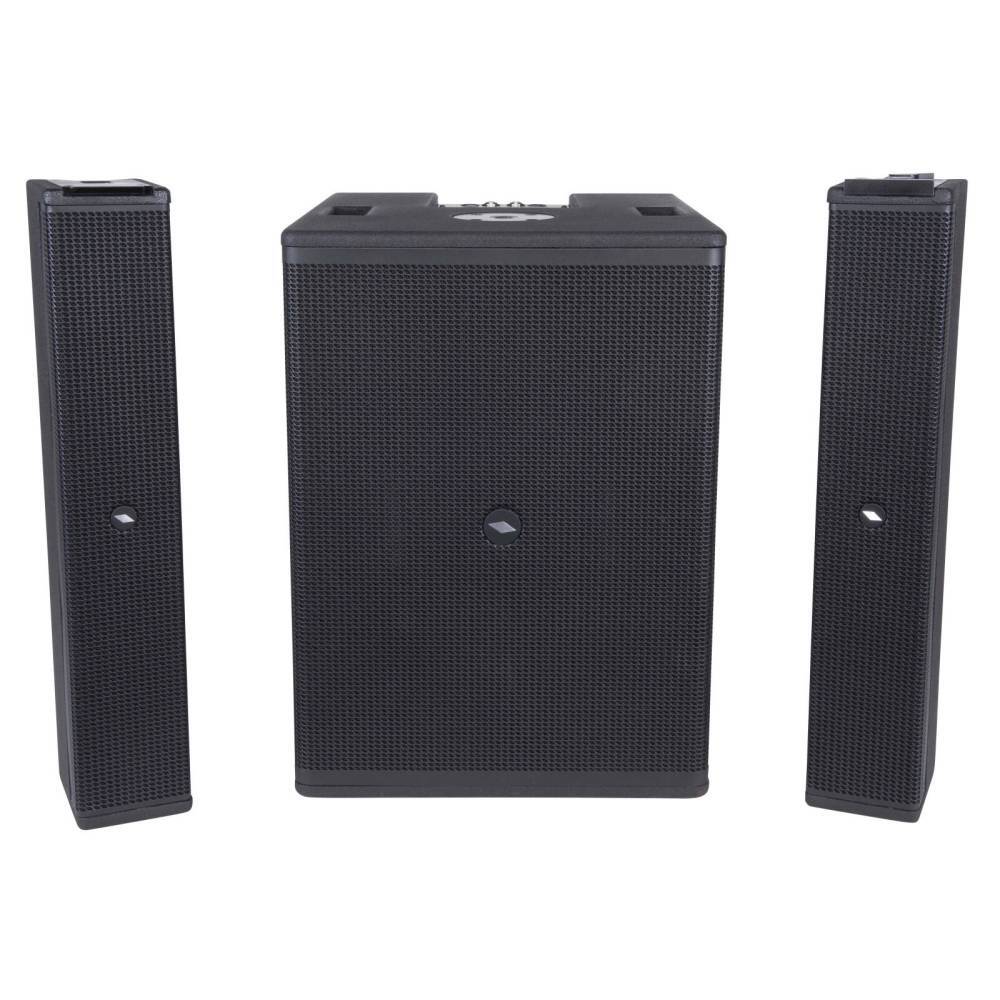

Proel SESSION6 is a compact, high-power portable array system in an active 2.1 configuration. It includes two tops and one subwoofer. SESSION6 is designed for indoor and outdoor use in live concerts, mobile DJ setups and corporate applications. The SESSION6 combines flexibility, portability and performance with a professional design and a sturdy plywood construction. Each top includes six 3.5” neodymium drivers in vertical array configuration with progressive down tilt, for increasing the vertical coverage. A custom-designed phase plug provides an ultra-wide 120° horizontal coverage and guarantees perfect voice intelligibility and accurate sound in any part of the listening area. The sub features two 10” high-excursion woofers with 2.5” voice coil, able to provide very ‘punchy’ and dynamic basses, together with an extended low-frequency response and an impressive SPL. The system is powered by a 3-channel 2400W Class D amplifier and it’s controlled by the powerful PROEL CORE LT DSP, able to deliver an outstanding sound definition. The signal processing includes a sophisticated Dynamic EQ and 4 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH) to adapt the speakers to any kind of application. The intuitive control interface features a single knob and a large LCD display, for controlling not only the DSP parameters but also the two MIC/LINE selectable inputs, the system’s configuration and the built-in BLUETOOTH audio interface. Thanks to the innovative die-cast fast linking system with integrated connections, the two tops can be combined together, forming a longer 12-driver column and allowing the system to be used not only in STEREO mode, but also in MONO or DOUBLE mode, for an extreme flexibility. A dedicated padded bag is included for storing and transporting the two columns and the provided pole and speaker cable, for the maximum portability. TOP - Six 2.5” neodymium full-range speakers in Vertical Array configuration - Progressive down tilt for an increased vertical coverage - Custom designed phase plug for ultra-wide 120° horizontal coverage - Fast-coupling of the two tops with integrated power signal link to obtain a single 12-speaker column SUB - Two high-excursion 10” woofers with 2.5” voice coil SYSTEM - Plywood cabinet with black ultra-durable polyurethane paint - 3-channel Class D SMPS power amplifier, 2400W total peak power - Two MIC/LINE (XLR-F) inputs - Control & connection panel on the cabinet’s top for an easy access - High-definition CORE LT DSP with A/D and D/A 24 bit converters and Dynamic EQ - User-friendly control interface with single knob and large LCD - 4 DSP presets (MUSIC, LIVE, DJ, SPEECH) - 3 selectable system’s configurations: STEREO, MONO and DOUBLE - Bluetooth stereo interface - SPL MAX (system): 128 dB peak - Frequency response: 38 Hz - 20 kHz

• Plywood Cabinet with Black Ultra-Durable Polyurethane Paint
• 3-channel Class D SMPS Power Amplifier with 2400W Peak power
• Two MIC/LINE (XLR-F) inputs
• MAX SPL 128 dB Peak
• Frequency response of  38 Hz - 20 kHz

System Type:	Portable Powered 2.1 System with Two Line Array Tops and One Subwoofer
Maximum SPL Output:	128 dB peak system output (pink noise)
Frequency Response (-10dB):	38Hz – 20kHz
LF Driver:	2 x 10" (254mm) woofer
HF Driver:	12 x 3.25" (82mm) neodymium drivers (6 for each TOP)
Coverage Pattern:	120° x 60°
Amplifier Type:	Class D with SMPS
System Power Rating:	3600 Watts LF, 2x300 Watts HF Continuous, 2400W Peak
Channels:	2 MIC/LINE selectable inputs
Connectors:	2 x COMBO (INPUTS), 2 x XLR-M (LINK), 2 x SPEAKON (POWER OUTPUTS)
Controls:	1 x LCD with Data Encoder
Processing:	24bit / 48KHz CORE DSP, 2-band EQ Selectable CONFIGURATION and EQ PRESETS, Digital Limiting
Wireless Audio:	Bluetooth built-in receiver
Cabinet Material	Plywood
Finishing:	High-strength polyurethane black paint
Grille:	Powder coated perforated steel
Handles:	2 x sides (SUB)
Pole Socket	1 x top M20 (SUB), 1 x bottom 35mm (TOP)
Included Accessories	M20 / 35mm telescopic pole, 4-wire SPEAKON/SPEAKON cable, Padded Bag for SAT
AC input	230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
Dimensions (W x H x D) TOP:	112 x 616 x 132 mm
Dimensions (W x H x D) SUB:	420 x 580 x 490 mm
Weight TOP:	4.5 kg
Weight SUB:	26.5 kg
Weight SYSTEM:	35 kg (entire system)
