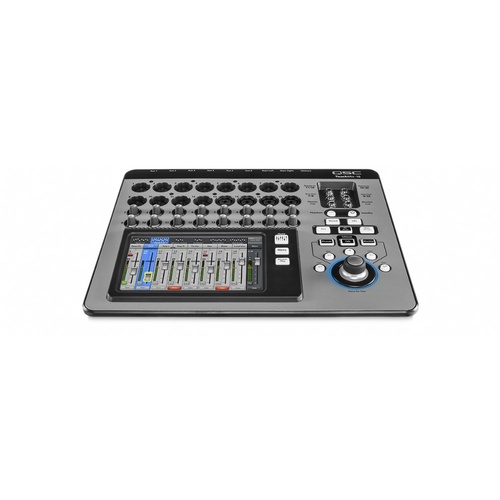

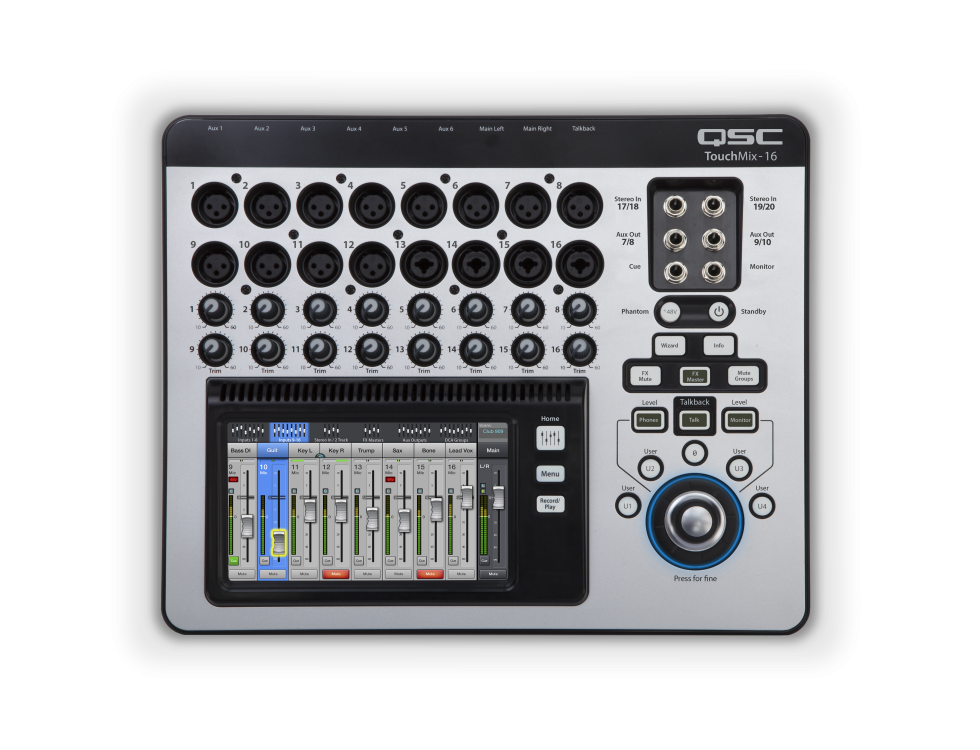

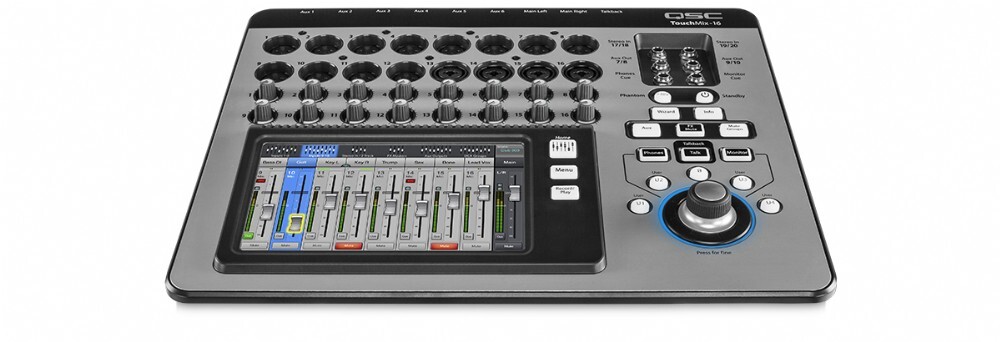

QSC TOUCH MIX 16 digital mixer incl FX with Touchscreen

22 Inputs -16 Mic/Line, 4 Line Stereo USB-12 outputs-FX


QSC Touchscreen digital mixer with 16+4 ins/8+4 outs and full DSP. (Inc: Carry case)

An incredible mix of functions for such a samll and compact unit and all done wirelessly .1000s of dollars worth of outboard gear all in this one powerful package .Processing such as Compressors Gates and Equalisers and of course Class a Microphone pre amps to make it a superb signal into the unit as everyone knows the sounds is only as good as the weakest link .Unique to this Mixer is Pitch Correction algorithm that can be assigned to any channel and whats more amazing is that you can record 14 single tracks onto USB or a Stereo master .Now thats saying something .

The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.

Product features

  •     20 Full Function Inputs: 12 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track
  •     Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
  •     TRS Aux outs drive wired In Ear Monitors (IEM) directly
  •     4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
  •     Gate and compressor on all input channels
  •     4 stereo DSP effects plus a pitch corrector
  •     1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs
  •     8 DCA and 8 Mute groups
  •     Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation
  •     Wizards, info and preset libraries assist you with channel setup, effects selection, and more
  •     Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair
  •     Remote control via mobile devices. Wi-Fi interface included



Barcode # 684284064776
Brand QSC
Shipping Weight 5.7000kg
Shipping Width 0.640m
Shipping Height 0.160m
Shipping Length 0.460m
