description

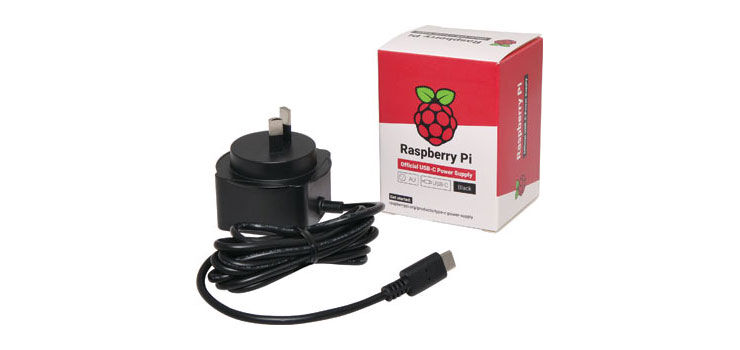

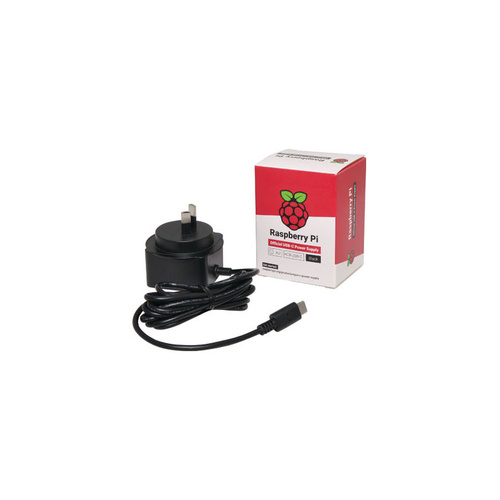

RASPBERRY PI USB-C 5.1V 3A MP POWER SUPPLY

Official Raspberry Pi power supply, ideal for use with the Raspberry Pi 4 Model B board. This power supply comes with USB Type C lead and AU mains plug. It supports up to 3A of current to power devices through the USB ports on the board.

  • Output
  • Output voltage: +5.1V DC
  • Minimum load current: 0A
  • Nominal load current: 3.0A
  • Maximum power: 15.3W
  • Load regulation: ±5%
  • Line regulation: ±2%
  • Ripple & noise: 120mVp-p
  • Rise time: 100ms maximum to regulation limits for DC outputs
  • Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
  • Protection: Short circuit protection, Overcurrent protection, Over temperature protection
  • Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%), 72% minimum at 10% load
  • Output cable: 1.5m 18AWG
  • Output connector: USB Type-C
  •
  • Input
  • Voltage range: 100-240Vac (rated), 96-264Vac (operating)
  • Frequency: 50/60Hz ±3Hz
  • Current: 0.5A maximum
  • Power consumption (no load): 0.075W maximum
  • Inrush current: No damage shall occur and the input fuse shall not blow

    *Specifications are subject to change without notice.

specifications

SKU M8821
Brand MLIVE
Shipping Width 0.100m
Shipping Height 0.005m
Shipping Length 0.050m
Shipping Cubic 0.000025000m3
