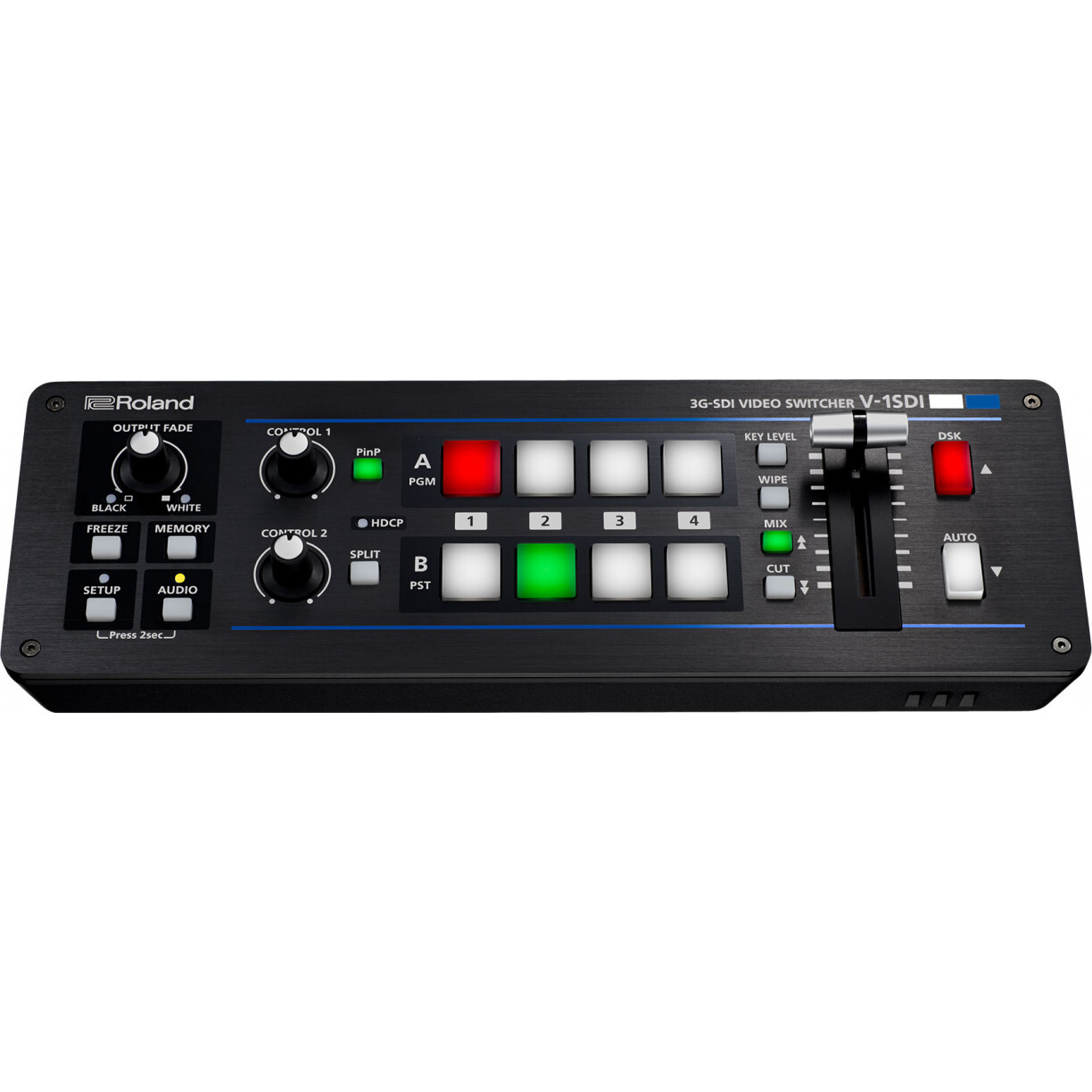

ROLAND V-1SDI VIDEO MIXER

The Roland V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.


Product  Features

  •     Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
  •     Easy to operate with hardware controls
  •     Compact size
  •     Supports up to Full HD 1080p
  •     3 x 3G-SDI and 2 x HDMI*1 inputs
  •     2 x 3G-SDI and 1 x HDMI*1 output
  •     Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
  •     Quad input multi-viewer with source labelling and audio metering
  •     Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
  •     Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
  •     Full 14 channel audio mixer included
  •     Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
  •     Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5]
  •     *1 HDCP Compliant
  •     *2 Built-in EDID Emulator
  •     *3 The Still-image data is deleted once the power is turned off.

specifications

Video Processing
4:2:2 (Y/Pb/Pr), 8-bit

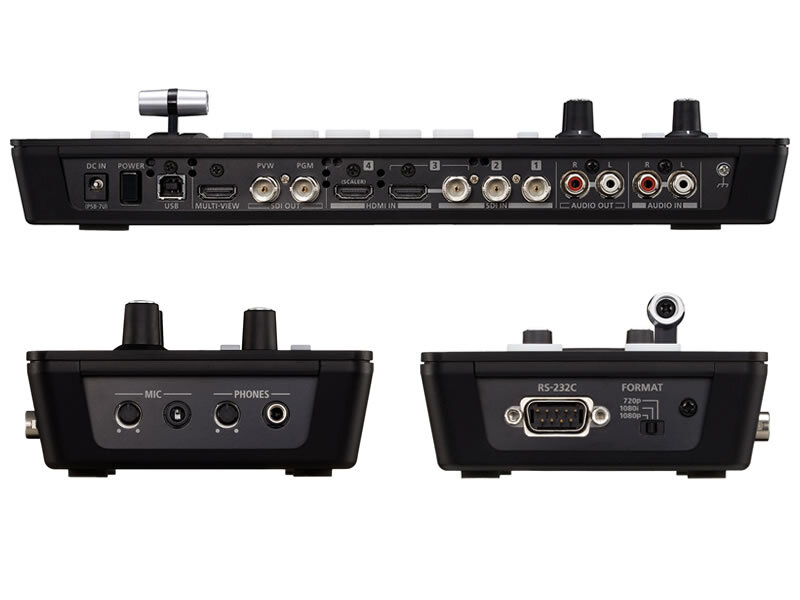

Input Connectors
SDI INPUT 1--3: BNC x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI INPUT 3--4: Type A (19 pins) x 2
* HDCP Supported
* INPUT 3: SDI or HDMI selected.
Output Connectors
SDI OUT PGM: BNC x 1
SDI OUT PVW: BNC x 1
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
* HDCP Supported
Input Formats
SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
HDMI INPUT 3
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

HDMI INPUT 4
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)

FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)

UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Output formats
SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
HDMI OUT MULTI-VIEW
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
Audio
Audio Processing
Sampling rate: 24 bits/48 kHz
Audio Formats
SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
HDMI: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors
Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2

Analog: AUDIO IN (RCA phono type)
MIC (Stereo mini type, plug-in power supported)
Output Connectors
Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
SDI OUT PVW: BNC x 1 SMPTE 299M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1

Analog: AUDIO OUT (RCA phono type)
PHONES (Stereo mini type)
Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
MIC: -41-- -13 dBu (Maximum: -1 dBu)
Input Impedance
AUDIO IN: 15 k ohms
MIC: 10 k ohms
Output Level
AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT: 1 k ohm
PHONES: 10 ohms
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors
USB: B Type (for remote control from PC)
RS-232: DB-9 type
Other Functions
MEMORY (8 types)
FREEZE (input video captured)
OUTPUT FADE (Audio, Video: WHITE or BLACK)
Power Supply
AC Adaptor
Current Draw
2.1 A
Power Consumption
25 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
313 (W) x 108 (D) x 59 (H) mm
12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
Weight (excluding AC adaptor)
1.2 kg
2 lbs 10-2/5 oz
Accessories
Owner's manual
AC adaptor
Power cord
Cord hook
* 0 dBu=0.775 Vrms
All specifications and appearances are subject to change.
SKU V1SDI
Barcode # 4957054509354
Brand Roland
Shipping Weight 2.0000kg
