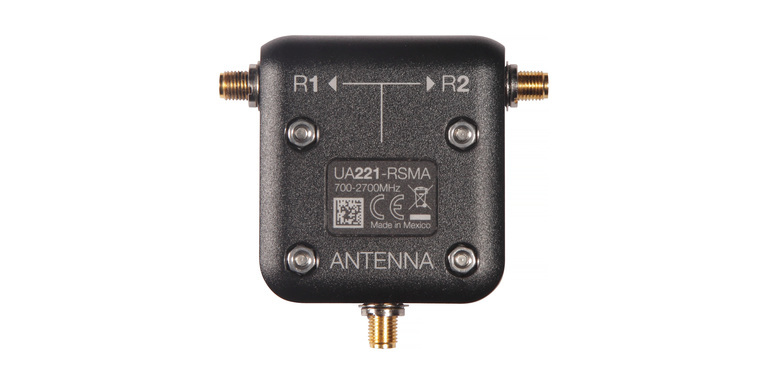

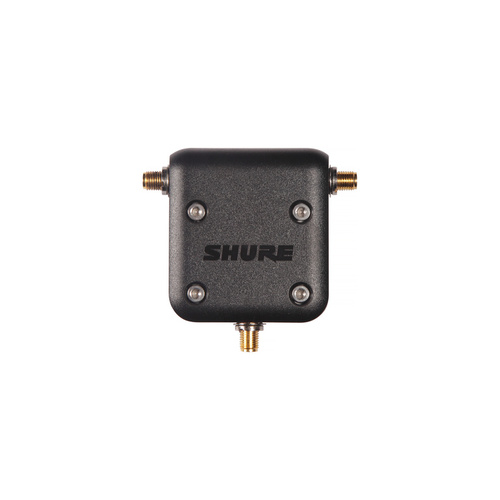

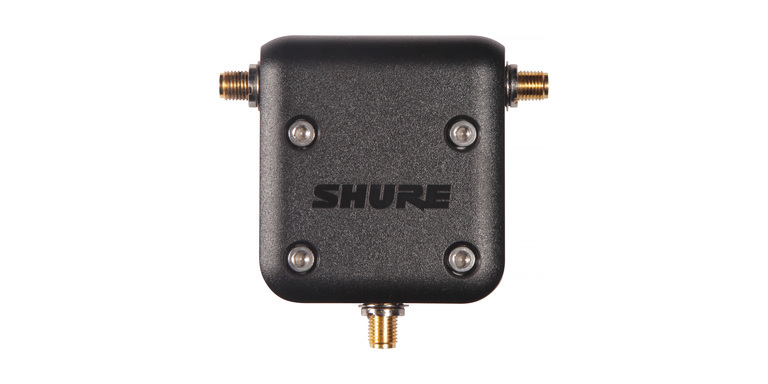

Shure UA221-RSMA Reverse SMA Passive Antenna Splitter


The Shure UA221 Antenna Splitter/Combiner Kit includes is a bi-directional splitter/combiner. It includes two adapters that can be used as one-input, two-output or two-input, one-output passive antenna splitter/combiners for UC4, SLX4, ULXS4, ULXP4, U4S and U4D receivers.

The UA221 Kit lets you split an incoming signal into two outgoing signals or combine two incoming signals into one signal.The antennas must be compatible with each wireless receiver's operating frequency range.Each kit includes two UA221 Splitter/Combiners, four coaxial cables, and attaching hardware.

Product Features

  • Front-mount GLXD4R detachable antennas on rack hardware
  • Combine two GLXD4R systems down to one pair of antennas
  • new subcategory
  • UA8-2.4GHz omnidirectional antennas
  • also can be used with PA805Z2-RSMA directional antenna
  • subcategory ends
  • Not for use with GLX-D Frequency Managers
  • Each kit includes two UA221-RSMA Splitters, four coaxial cables, and attaching hardware

http://www.shure.com/americas/products/accessories/wireless-systems/wireless-systems-antennas/ua221-rsma-reverse-sma-passive-antenna-splitter

specifications

  • Frequency Range:   700 to 2700 MHz <2:1 Voltage Standing Wave Ratio (VSWR)
  • Impedance;   50 Ohms
  • Isolation:    Port-to-Port: 20 dB, minimum
  • Insertion Loss:    0.8 dB (3 dB splitter loss not included)
  • Maximum Power Handling:   250 mW (total RF input power from all ports)
  • Dimensions:  (H x W x D)    2.5 x 2.7 x 0.6" (64.2 x 67.7 x 16.0 mm)
  • Weight:    1.5 oz (42.5 g)
SKU SHR-UA221-RSMA
Barcode # 424065041028
Brand Shure
