description

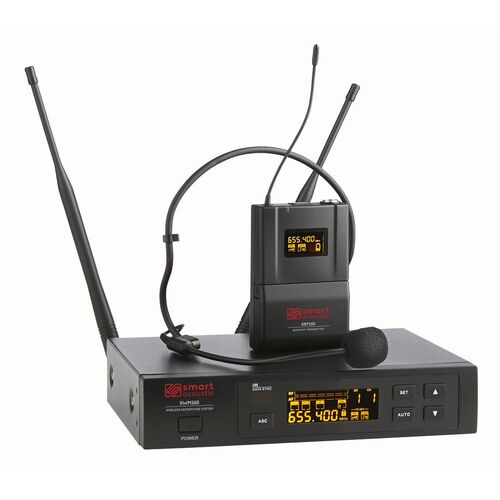

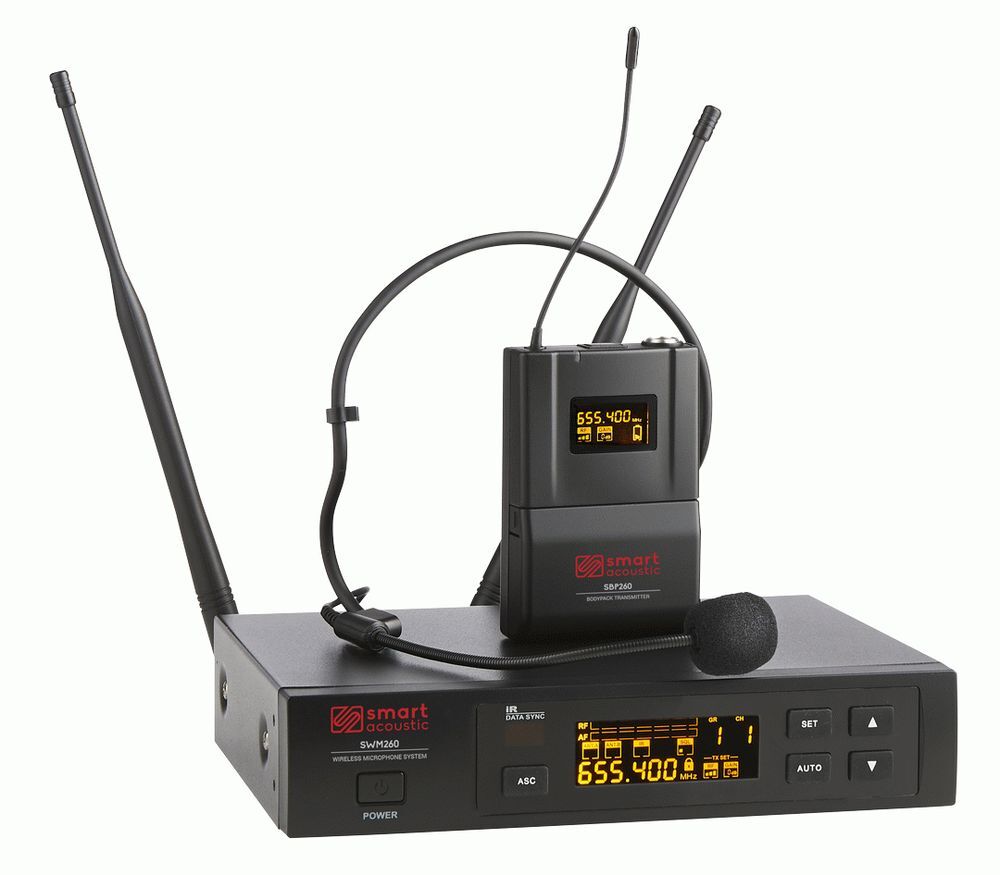

This great sounding, easy to operate Wireless Body Pack System comes with 1x Wireless Receiver (SWM260), 1x Headset (SHM260), 1x Bodypack (SBP260) and 1x Lapel Mic (SLP260). FREQUENCY BAND (655-679 MHz) True diversity design ensures rock-solid performance LCD shows all working status Up to 160 selectable frequencies Automatic frequency selection Adjustable gain level 6-segment audio meters 6-segment RF meters 3-segment transmitter battery fuel gauges Squelch adjustment Infrared data synchronization Rugged metal chassis Receivers RF Carrier Frequency Range: 500 ~ 937.5MHz Working Range: 100M Modulation: FM Pilot Tone: 32.768KHz Max Channel Number: 192 System Compatibility: 8 channels Audio Frequency Range: 50Hz ~ 15KHz(±3dB) Dynamic Range: > 105dB System Distortion: THD< 0.5% S/N Ratio: > 102dB(A) RF Sensitivity: < -95dbm for 30dB S/N ratio Image Rejection: > 60dB Output Connectors: (XLR×1) /(1/4-inch connector×1 ) Audio Output Level: (XLR:+10dBV) / (1/4-inch connector(+8dBV) Output Impedance: (XLR:3K?)/(1/4-inch connector:3K?) Display: LCD×1 Power Requirement: 12V/0.5A DC Operating Temperature Range: 0-50 ? Dimensions: 160*212*44mm Weight: 880g/1750g Bodypack Transmitter Gain Adjustment Range: 0/3/6dB Input Impedance: 5K? RF Power Output: 2mW/10mW/30mW Spurious Rejection: > 50dB Pilot Tone: 32.768KHz Display: LCD Power Requirement:1.5V×2(AA) Battery Life: > 8hours/ 1300mAH Dimensions:165*65*23mm Weight: 130g
