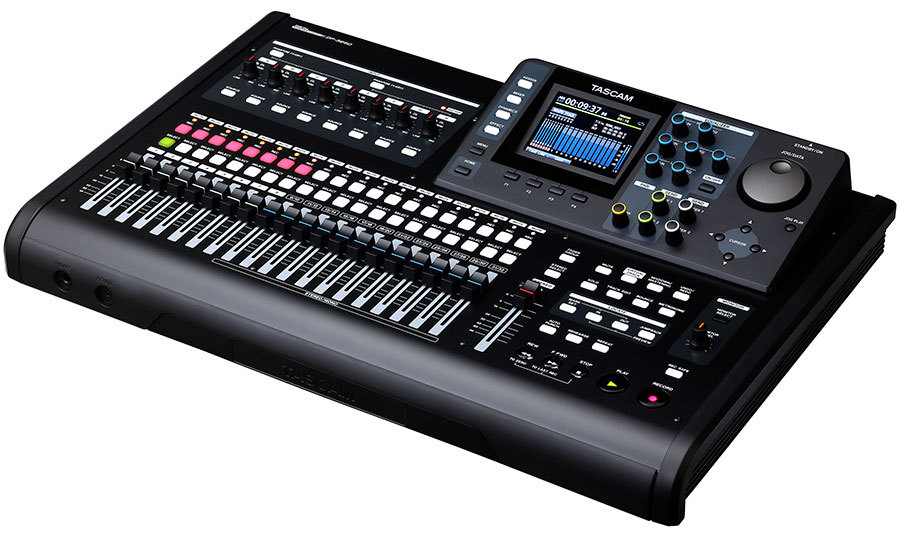

Tascam’s DP-32SD Digital Portastudio

Tascam’s DP-32SD Digital Portastudio is the perfect reliable solution for recording onto solid state media unit . Eight simultaneous tracks are able to be utlised through its combination XLR and 1⁄4” combo jacks. Hard wired processing like compression and limiting can be implemented whilst recording, as well as guitar amp simulation and multi-effects for use on the instrument-level input.

The colour LCD and channel strip knobs makes it easy to use fast and creative. These powerful features easy operation and CD QUALITY Reproduction makes this an obvious choice for this style of studio recorder

The DP-32 has 12 selectable tracks between MONO or STEREO. Use a STEREO track for recording synthesiser, or set the track to MONO when recording guitar or vocal. Not only that, you can create ideal settings for each track. (set #9 to #12 STEREO, then set #13 to #22 MONO) If all tracks are set to MONO the DP-32 becomes a 20-track multi track recorder.

Features

•     Simultaneous 32 track playback
•     8 mono tracks + 12 mono/stereo selectable tracks
•     Mounted TMSS (TASCAM Multi Stage Sampling rate converter) provides high-quality sampling rate conversion
•     Integrated 40-input mixer to mixdown the 32 playback tracks with the 8 inputs or for bouncing
•     Simultaneous 8 track recording
•     16 or 24 bit, 44.1 or 48 kHz recording

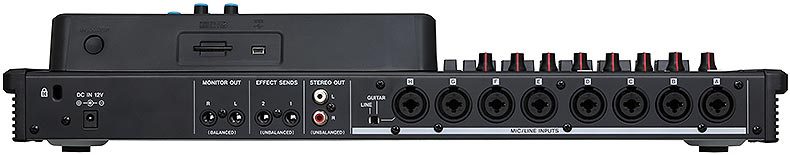

•     8 XLR/TRS combo connectors
•     Phantom power supply for all inputs
•     High-impedance input available (INPUT-H)
•     Stereo RCA pin-jack output

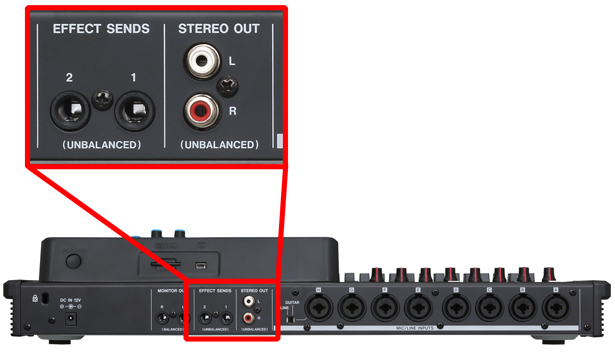

•     2 effect send outputs (1/4" TS jack)
•     70mW/ch headphone amplifier
•     Peak-hold function at a level meter of the LCD
•     Sub-frame editing
•     Remote connector for optional RC-3F footswitch
•     Automatic punch in/out
•     Various edit functions(COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
•     Undo and Redo function with Undo history
•     8 dynamics effects
•     Guitar effects
•     Mix-down effects
•     Mastering Effects
•     Track bounce function
•     Virtual tracks(8 virtual track per one track)
•     Locate mark up to 99 at one song
•     File transferring via USB2.0

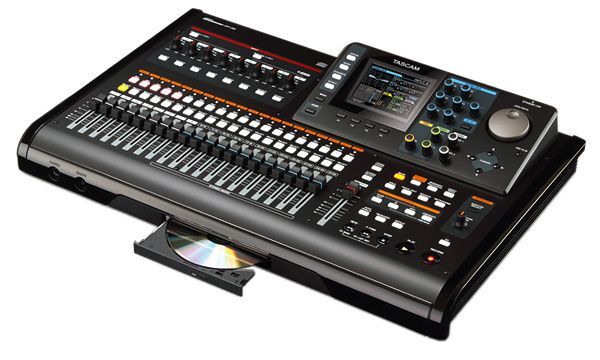

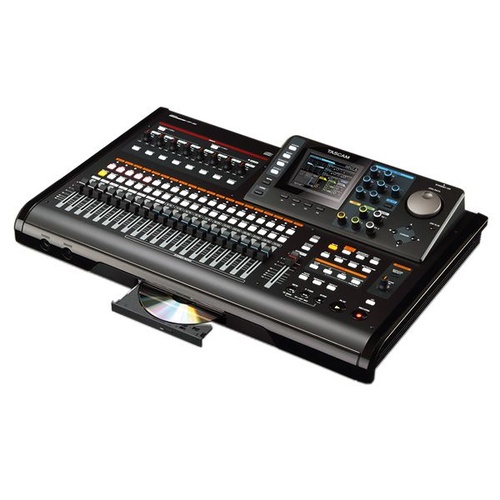

Picture of unit with CD is the old model ( only for illustration purposes ) cORRECT PCITURE IS DISPLAYED IN OTHER THUMBNAILS adn VIDEO
