Waldorf Kyra 128 voice desktop synthesizer

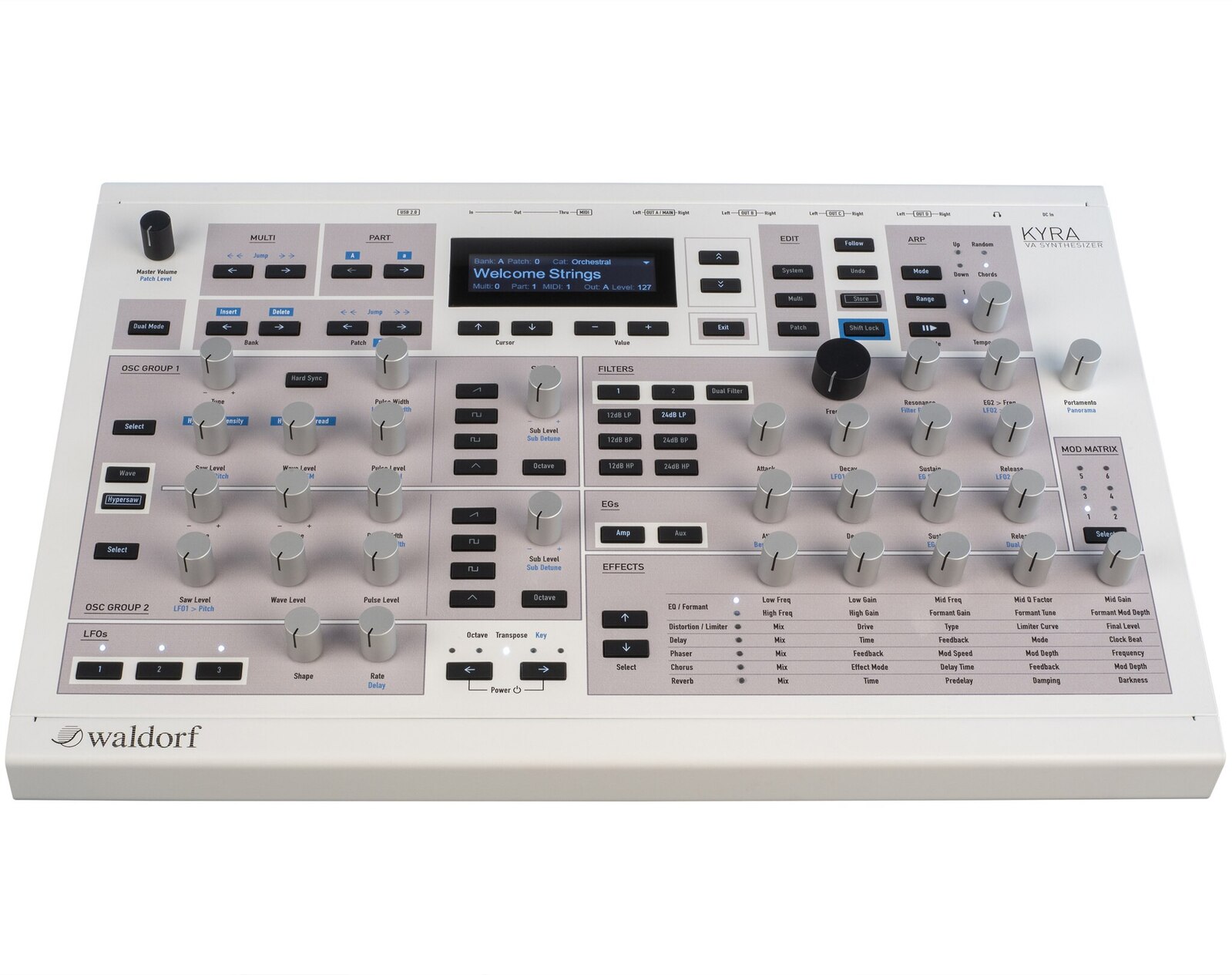

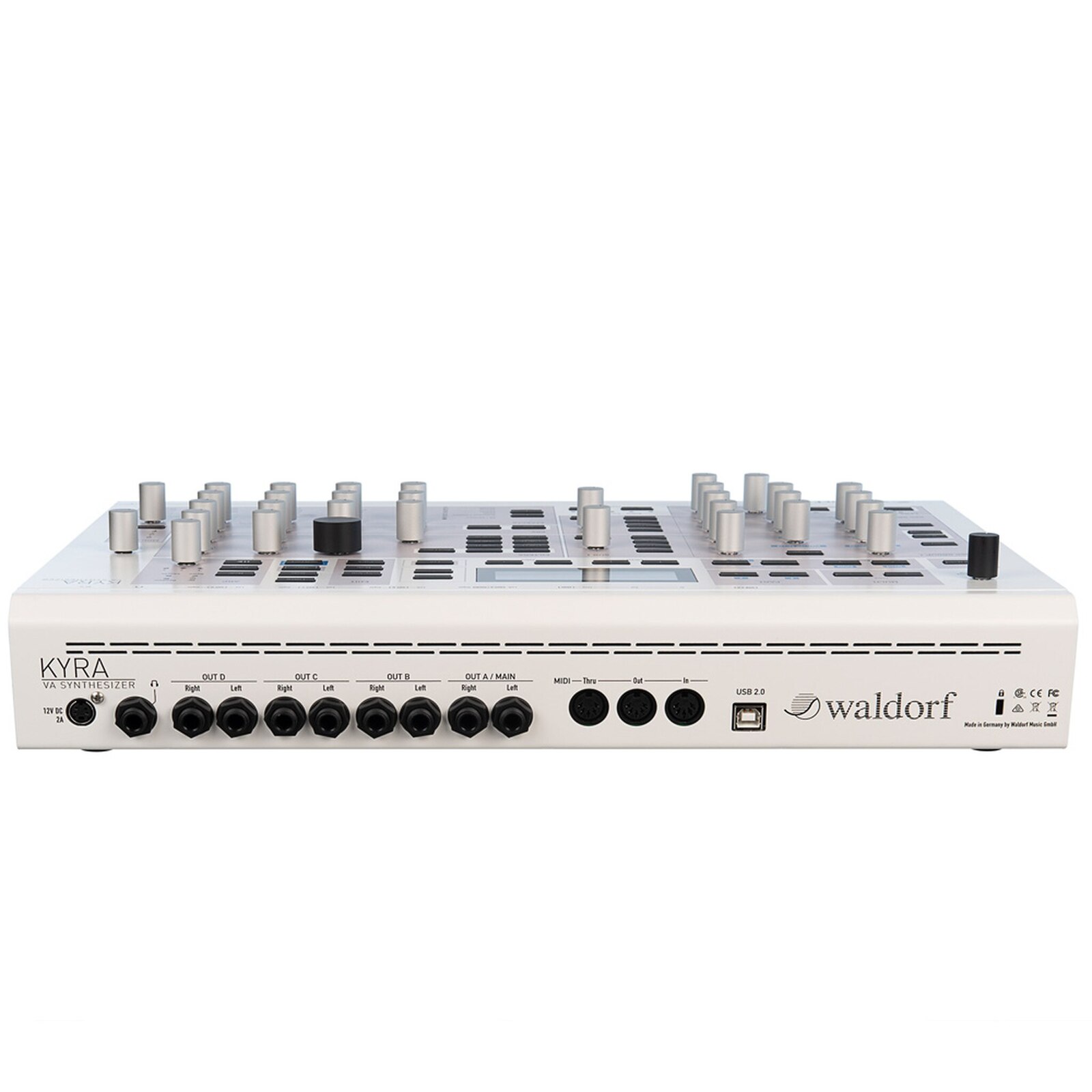

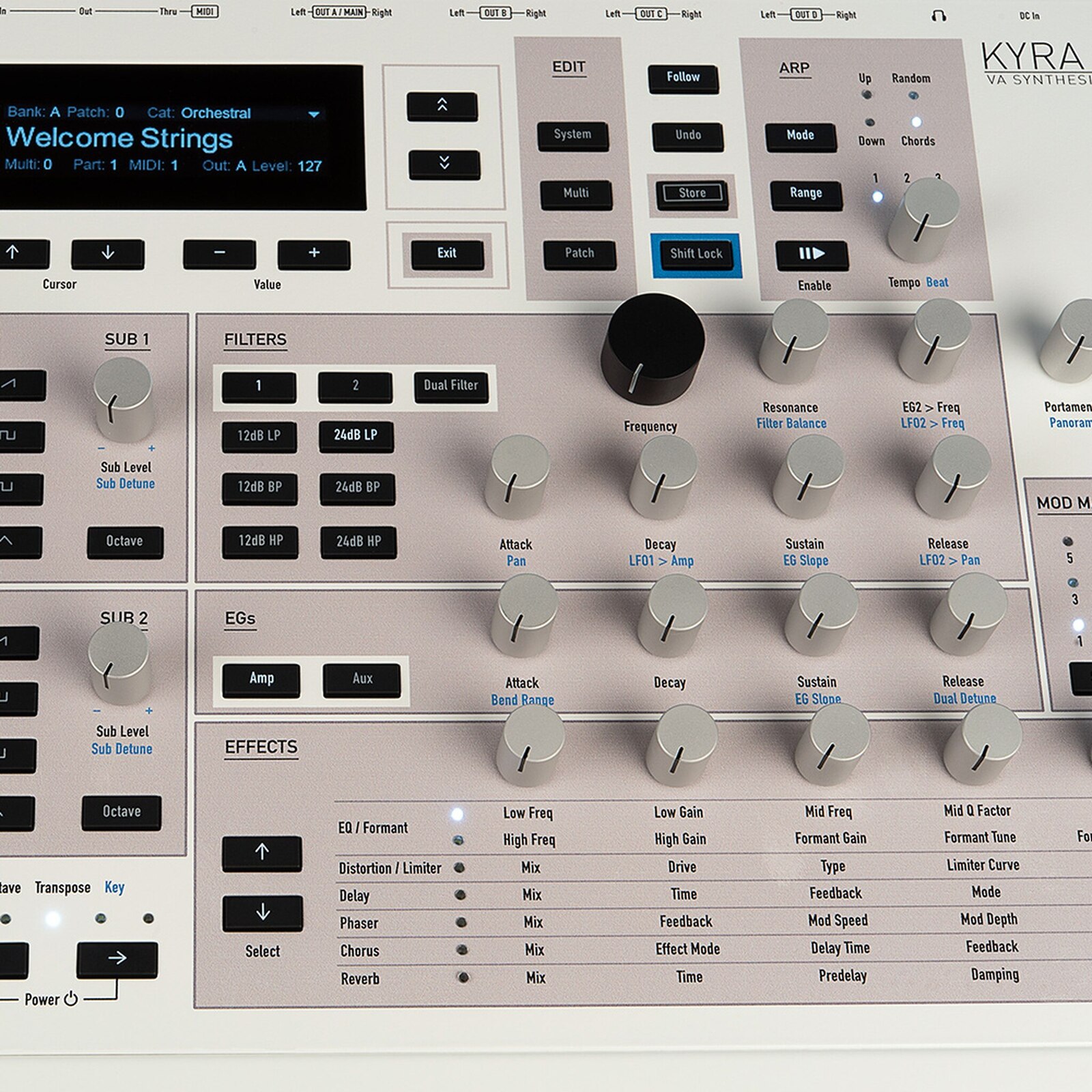

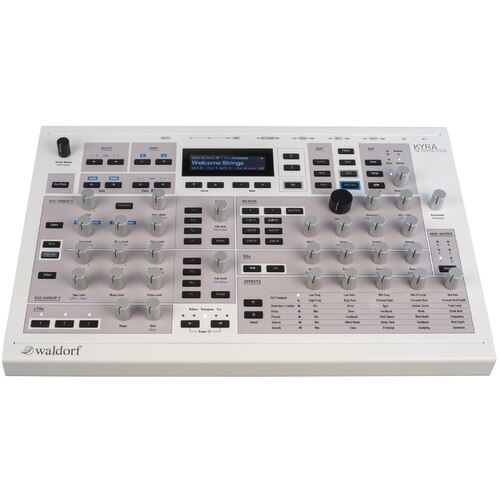

Kyra is a powerful, hardware virtual analogue synthesizer capable of creating a wide range of contemporary sounds for live and studio musicians. From first glance it is patently obvious that Kyra is a beautifully-designed desktop VA Synthesizer — as the wording elegantly emblazoned on its eye-catching front fascia subtly states. As a truly multitimbral instrument it features eight independent ‘parts’ with up to 32 notes per PART, each effectively being a complete synthesizer with sound sources (OSC GROUP 1, OSC GROUP 2, SUB 1, and SUB 2); FILTERS; modulators (EGs, LFOs, and MOD MATRIX); multi-effects unit (EFFECTS); and a USB 2.0 connection — can exchange MIDI (Musical Instrument Digital Interface) information, as well as send the audio from each stereo PART to a computer as eight stereo 24-bit streams at 96kHz (with 48kHz downsample mode available) and one stereo audio return from the computer supporting a single 24-bit stereo audio stream from the host DAW (Digital Audio Workstation). With that being said, the only other resource they share are the four balanced, stereo output pairs — OUT A (Right and Left), OUT B (Right and Left), OUT C (Right and Left), and OUT B (Right and Left) — using 32-bit DAC (Digital-to-Analogue Conversion) running at 96kHz sampling rate connected to four internal stereo busses and that powerful pool of 128 hardware voices. Versatility further abounds as each PART has a dedicated multi-effects unit comprising nine stereo effects modules — namely, three-band EQ, Formant filter, input Limiter, Distortion module, Delay module, six-state Phaser, Chorus flanger, Stereo reverb, and output Limiter — with dedicated audio stream via USB (Universal Serial Bus). Better still, each PART hosts a Patch from the pool available to the system. Speaking of which, Kyra has a generous Patch storage capacity of 26 banks — A through to Z, each containing 128 patches. That’s a total of 3,328! The first seven banks are ‘user’ patches stored in RAM (Random Access Memory), meaning users can change them quickly and individually using the Store sequence. The remaining 19 banks are ROM (Read-Only Memory) patches that users can recall and use just like RAM patches but cannot be replaced using the Store sequence. It is, however, perfectly possible to freely copy whole banks between RAM and ROM, so all are user- programmable. And any Patch can be recalled via MIDI program changes and Bank select commands. Get this, though: switching from Wave mode — meaning Kyra adopts a virtual analogue synthesis model which has the advantage that it is easy to construct sounds using intuitive subtractive synthesis — to Hypersaw mode configures the voice to use a special algorithm comprising six real oscillators to quickly create lush-sounding soundscapes. Digging deeper, Hypersaw mode replaces Wave mode’s two oscillator groups with a single source whose tonal content is constructed with just two adjustable controls — Hypersaw Intensity and Hypersaw Spread (geometric detuning). Built entirely out of multiple, harmonically-rich sawtooth waves or ‘partials’ each adjusted to that special algorithm, the Hypersaw provides characteristic soundscapes ideal for a wide range of uses — from high-impact lead sounds through to lush, animated pads. Placed in Dual Mode, the Hypersaw has 12 real oscillator sources with an additional adjustable stereo spread. Far from forgetting its helpful high-resolution 256x64 pixel graphic OLED (Organic Light-Emitting Diode) display alongside the traditional array of MIDI In, Out, and Thru connections — complimenting USB 2.0 — on five-pin DIN, as well as full key microtuning capability with MIDI Tuning Standard (MTS support), it is fair to say that Kyra is, indeed, one of the most powerful music synthesizers ever built. Features Powerful, hardware virtual analog synthesizer 128 voices 2x Wave OSC with 4096 waveforms 2x Pulse OSC 2x Saw OSC 2x Noise OSC 2x Sub OSC with several waveforms Oscillator FM and Ring mod 9 simultaneously available effects 6-slot Mod Matrix with multiple destinations per slot 2x filters: 12/24dB and LP/BP/HP in all configurations 3x envelope generators (EG) 3x LFOs with 128 shapes each Arpeggiator with 128 preset patterns Double Mode: layers the same sound two times and detunes them against each other Can be used as an audio interface Audio is transmitted to the computer via USB in up to 24bit/96kHz 256x64 pixel OLED USB 2.0 for MIDI and audio 5-pin DIN MIDI In/Out/Thru
