description

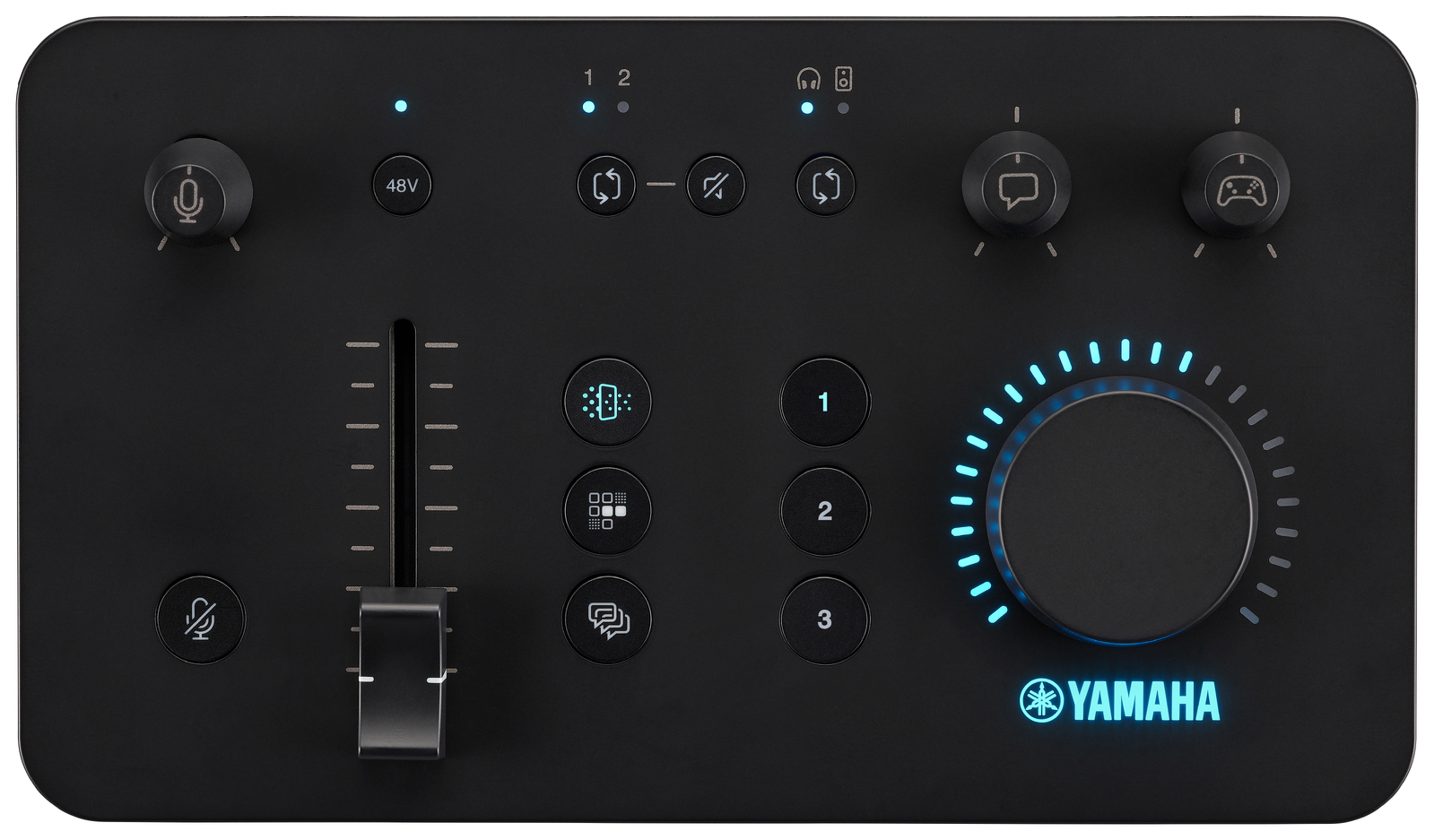

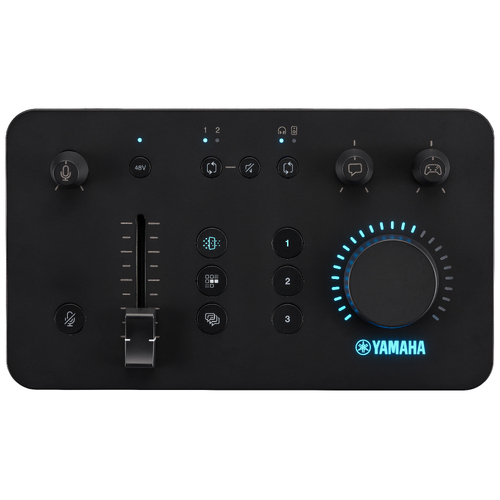

The ZG01 is Yamaha’s first audio mixer designed specifically for game voice chat and game streaming. This new mixer allows you to tailor the game audio, your voice, and the voice of the person you are chatting with to your own playback environment, while simultaneously providing the ideal audio signal to both your chat partner and the audience you are streaming to.

The ZG01 also features simple audio operation with carefully selected physical controls, a variety of DSP effects, such as a chat voice changer and authentic surround sound processing through stereo headphones, as well as 2-in/1-out HDMI ports that also work as an HDMI switcher and conversion adaptor. The ZG01 offers a higher level of immersive game sound and a more comfortable gaming environment. The ZG01's physical controls designed for gaming, voice chat, as well as for streaming, provide simple, intuitive management of all your audio signals without detracting from your overall gaming experience.

Yamaha's new proprietary "ViReal™ technologies for headphones" has been further optimised for gaming to maximise your stereo headphones' 3D sound quality. Enjoy powerful game sound with unprecedented realism. FOCUS MODE/EQ can suppress the sound of your own character's voice or emphasises environmental sounds of the game audio. The settings can be configured to suit a variety of game titles, scenes, and playing styles. For example, you can focus on the sound of your opponent's footsteps for a more authentic experience.

With 3D CHAT SPACE you will feel as if you were playing a game in the same room with your friends. By placing the other party's voice in a virtual 3D-space, it avoids overlap with game audio and voice chat, letting you hear all your audio signals clearly and comfortably. Your multi-channel game audio is converted and processed by the ZG to reproduce a surround sound experience that you can stream to your listeners. Even if they are not ZG users, as long as they listen with stereo headphones, you can deliver the same immersive authenticity to your audience.

Customise your voice and game audio with zero-latency DSP processing to adapt to various virtual environments during gameplay. When you install the dedicated driver in your computer (Windows/Mac), the ZG01 is recognised as two virtual devices, and can send and receive two audio channels for different purposes. For example, you can set up a voice chat application to send only your voice audio, as well as a streaming application to broadcast your game and voice chat audio.

Features

• Intuitive volume control designed for gamer and game streamer
• High resolution (24-bit, 48 kHz) USB audio recording and playback
• Flexible volume control with dedicated drivers that are recognised by Windows/Mac as virtual multiple devices
• ZG Sound Processing (ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, Voice changer, Transceiver/Radio voice effect... and more)
• Effect button x 6 (3 for voice chat effects, 3 for game sound effects)
• HDMI connection port x 3 (2-in/1-out, Audio out: 2ch 24-bit/48 kHz fixed, Video signal: Pass-through)
• MIC input for condenser mics with +48 phantom power and mute button
• Independent inputs and outputs for headset/ microphone with headphones or desktop speakers
• 4-pole mini input/output (TRRS) for smartphones
• ZG Controller (Windows/Mac) for precise parameter control
• Windows/Mac support by USB-C connection
• iOS and Android supported by 4-pole mini input/output (TRRS)
• USB-C Power input (5 V DC, 1.5 A)
