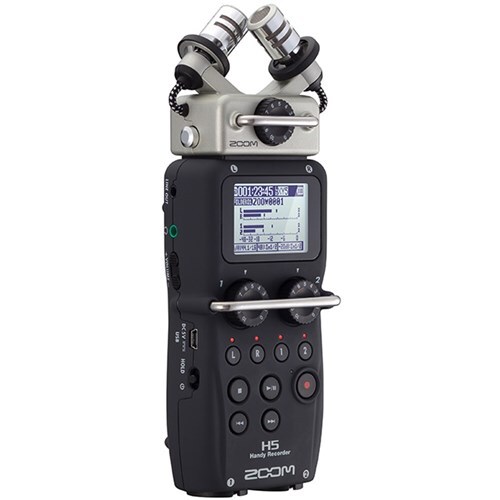

ZOOM H5 HANDY AUDIO RECORDER for Pristine Audio

SKU: FXR005 SAVE 30%!

X/Y recording allows you to cover a wide area yet still capture sound sources in the centre with clarity and definition, making it ideal for all types of live stereo recording. These are housed within an advanced shock-mount that employs rugged external mic wires and rubberised material to isolate the unit from the H5 body and thus minimise vibration and handling noise. The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be precise—equivalent to the sound of a jet aircraft from less than 200 feet away—enabling you to capture sounds louder, closer, and cleaner than you ever could before.

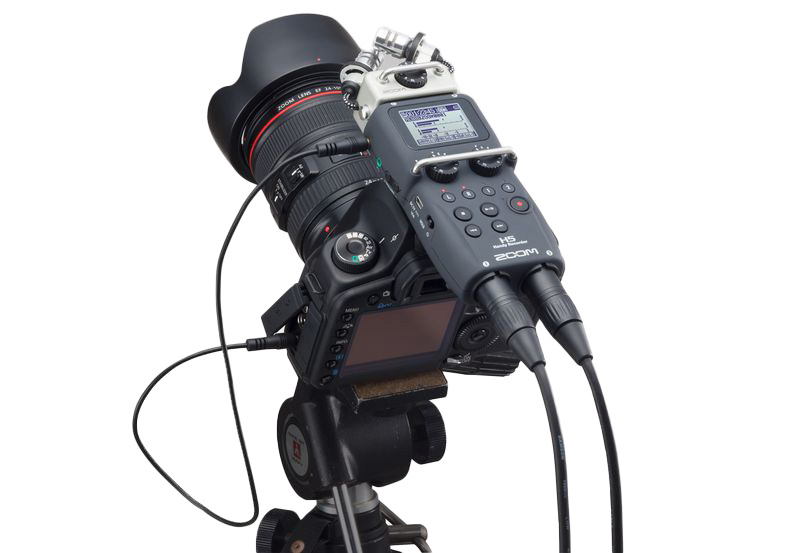

In addition to standard transport controls (stop, play/pause, record, rewind and fast-forward), the front panel of the H5 offers dedicated record arming buttons for each track, which double as mute switches during playback. A Hold switch disables all front panel buttons to prevent accidental operation during recording. The H5 can be attached to a camera strap or, with the use of our optional Hot Shoe mount, mounted directly to a DSLR or camcorder.

Product Features

  • Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
  • Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shock-mounted mics for reduced handling noise
  • Compatible with all Zoom input capsules
  • Four-track simultaneous recording
  • Large backlit LCD display
  • Records directly to SD and SDHC cards up to 32GB
  • Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
  • Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
  • Analog-style gain controls for each input
  • Protective "roll-bar" type covers prevent accidental movement of gain controls
  • Plug-in power (2.5 volts)
  • Built-in effects, including low-cut filtering, compression and limiting
  • Chromatic tuner and metronome
  • Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
  • MS decoding
  • Multi-track to stereo internal mix-down
  • Normalise, Divide and Trim editing
  • Voice memo and up to 99 marks per recording
  • A/B loop playback
  • Variable playback speed and variable pitch without affecting playback speed
  • Multi-channel and stereo USB audio interface for PC/Mac/iPad with loop back function
  • Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
  • Uses two standard AA alkaline or NiMH rechargeable batteries
  • Over 15 hours of operation with alkaline batteries

Want to know more? Please click here for more information

(FXR005)

The Zoom H5 Handy Recorder features a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera, Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shock-mounted mics for reduced handling noise, Compatible with all Zoom input capsules, Four-track simultaneous recording, Large backlit LCD display, Records directly to SD and SDHC cards up to 32GB, Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats, Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad, Analog-style gain controls for each input, Protective "roll-bar" type covers prevent accidental movement of gain controls, Plug-in power (2.5 volts), Built-in effects, including low-cut filtering, compression and limiting, Chromatic tuner and metronome, Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take, MS decoding, Multi-track to stereo internal mix-down, Normalise, Divide and Trim editing, Voice memo and up to 99 marks per recording, A/B loop playback, Variable playback speed and variable pitch without affecting playback speed, Multi-channel and stereo USB audio interface for PC/Mac/iPad with loop back function, Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter, Uses two standard AA alkaline or NiMH rechargeable batteries, and has over 15 hours of operation with alkaline batteries.

General
Recording media: SD card: 16MB to 2GB , SDHC card: 4GB to 32GB
Display: Backlit LCD (128 x 64 pixels)
Inputs
INPUTS L/R [XYH-5 X/Y mic]: Mic type:   Unidirectional
Sensitivity:   -45 dB, 1 kHz at 1 Pa
Input gain:   -∞ to 52 dB
Max sound pressure input: 140 dB SPL
MIC/LINE IN : Connector:   1/8" stereo mini jack
Input gain:  - ∞ to 52 dB
Input impedance:  2 k Ω or more
Plug-in power:  2.5V supported
Backup recording: -12dB lower than set L/R input gain
INPUTS 1/2: Connectors:    XLR / TRS combo jacks
    (XLR: Pin 2 hot / TRS: Tip hot)
Input gain (PAD OFF): -∞ to 55.0 dB
Input gain (PAD ON): -∞ to 35.0 dB
Input impedance:  1.8 k Ω or more
Max input level:  +22 dBu (PAD ON)
Phantom power:  +12V /+24V /+48V
Equivalent Input Noise (EIN): -120 dBu or less
Outputs
LINE OUT : Connector:    1/8" stereo mini jack
Rated output level:   -10 dBm
Output load impedance: 10k Ω or more
PHONE OUT : Connector:    1/8" stereo mini jack
Output Level:    20 W +20 W into 32 Ω load
Built-in speaker: 400mw 8 Ω mono
Recording formats
STEREO MODE: WAV (BWF-compliant)
Sampling frequency:   44.1/48/96 kHz
Bit rate:    16/24 (Stereo)
Maximum simultaneous recording tracks: 2
MP3
Sampling frequency:  44.1kHz
Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps
MULTITRACK MODE: WAV (BWF-compliant)
Sampling frequency: 44.1/48 kHz
Bit rate: 16/24 (Mono/Stereo)
Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)
USB
Mass Storage Class operation: Class: USB 2.0 High Speed
Audio Interface operation: Multitrack mode: Class: USB 2.0 High Speed
Sampling frequency: 44.1/48kHz
Bit rate: 16/24 bit
Inputs / Outputs: 4 / 2
Audio Interface operation: Stereo mode: Class: USB 2.0 Full Speed
Sampling frequency: 44.1/48kHz
Bit rate:  16 bit
Inputs / Outputs: 2 / 2
USB bus powered operation  possible
(iPad operation supported in Stereo mode only)
Power Requirements
  AA size (LR6) battery x 2
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power
SKU FXR005
Barcode # 4515260013241
Brand Zoom
Shipping Weight 0.8500kg
Shipping Width 0.170m
Shipping Height 0.090m
Shipping Length 0.230m
Shipping Cubic 0.003519000m3
