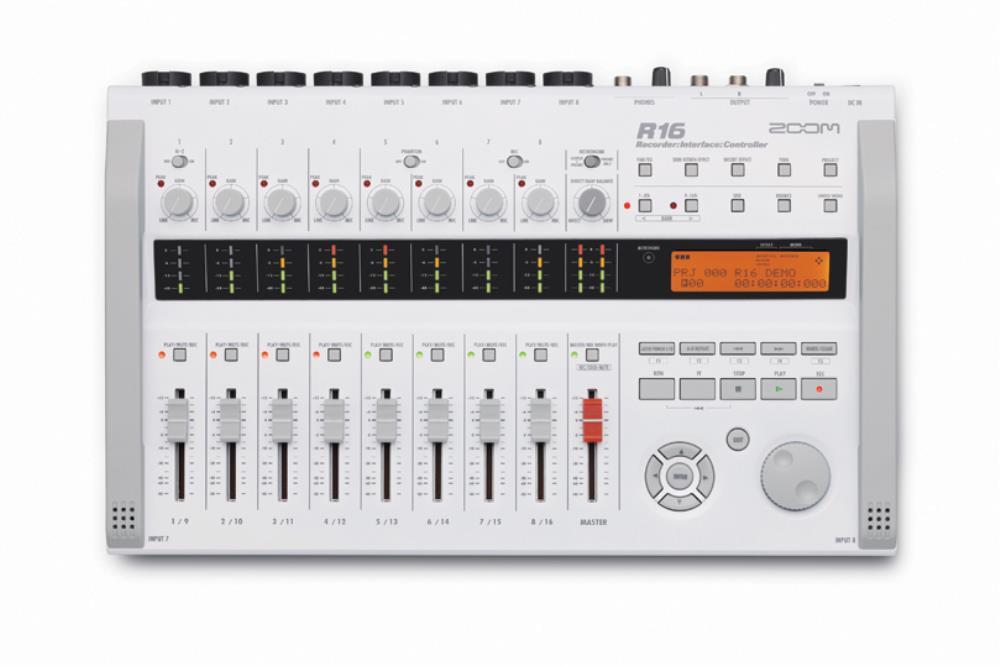

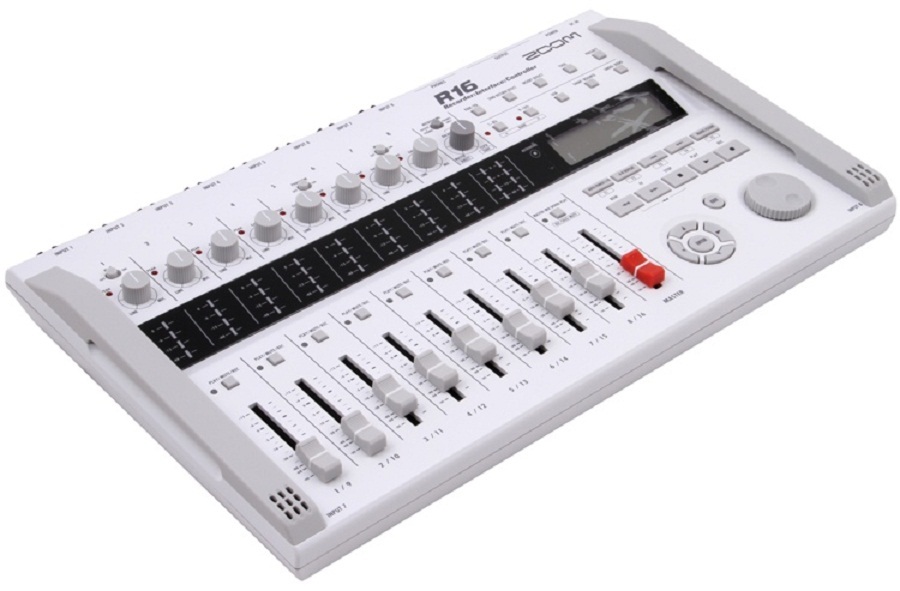

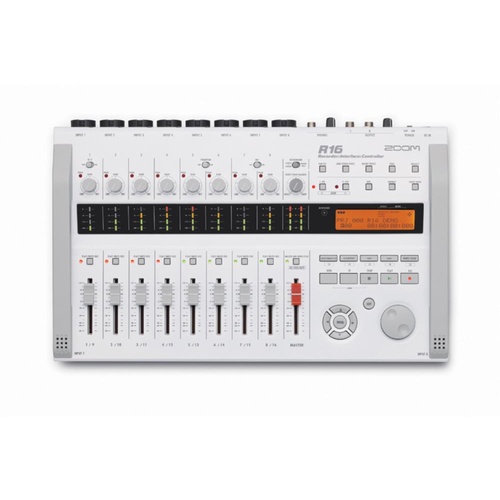

Capture audio in any setting, from live music performance, drums with multiple mics to music rehearsals and songwriting, even audio for film and video. The R16's simultaneous 8-track capability makes professionalism easy. Playback up to 16 tracks using its 16/24-bit linear WAV format and 44.1kHz sampling rate.

The R16 functions as an audio interface enabling direct input of sound to a computer. Support for high quality 24-bit/96kHz encoding ensures great sound. Eight input channels and two output channels can be used simultaneously. If you use the sampling rate of 44.1kHz, the internal DSP effects of the R16 are also usable on your computer tracks. A dedicated control lets you adjust the mixing balance between the DAW playback sound and the direct sound for monitoring.

Transport and mixing operations of the DAW software can be controlled using the R16. This gives you greater control and a better feel for mixing. In Mackie Control emulation mode, major DAW applications such as Cubase, Logic, and Sonar are supported.

Product Features

• 16-track playback, 8-track simultaneous recording
• Built-in stereo condenser microphones
• Records directly to SD and SDHC cards up to 32GB for up to 100 track hours
• Records 16/24-bit, 44.1kHz mono and stereo WAV files
• Eight mic/line level inputs on XLR/TRS combo connectors
• Input 1 can also be used for Hi-Z instrument-level signals such as electric guitar or bass
• +48V phantom power
• Dual balanced ¼" TRS output jacks
• Headphone output with dedicated volume control
• Built-in metronome and chromatic tuner
• 135 send-return and insert DSP effects, including amp/preamp models and mastering algorithms
• User editing of effects parameters, with 390 patch memories for storage
• Independent level, pan and EQ for each track
• Internal track bouncing and mixdown of multitrack to stereo
• Flexible overdubbing and both manual and automatic punch-in/out
• Loop A/B playback with user-defined start/stop points
• Up to 100 marks per recording
• Invert track phase function
• Divide file editing
• Backlit LCD with contrast control for easy viewing in low-light environments
• 8-in/2-out USB audio interface for Macintosh/Windows computers
• High-definition 24-bit/96kHz playback capability with DAW software
• Control Surface functionality (Mackie Control emulation)
• Full mixing and transport controls for Cubase, Logic, Ableton Live, and other DAWs
