description

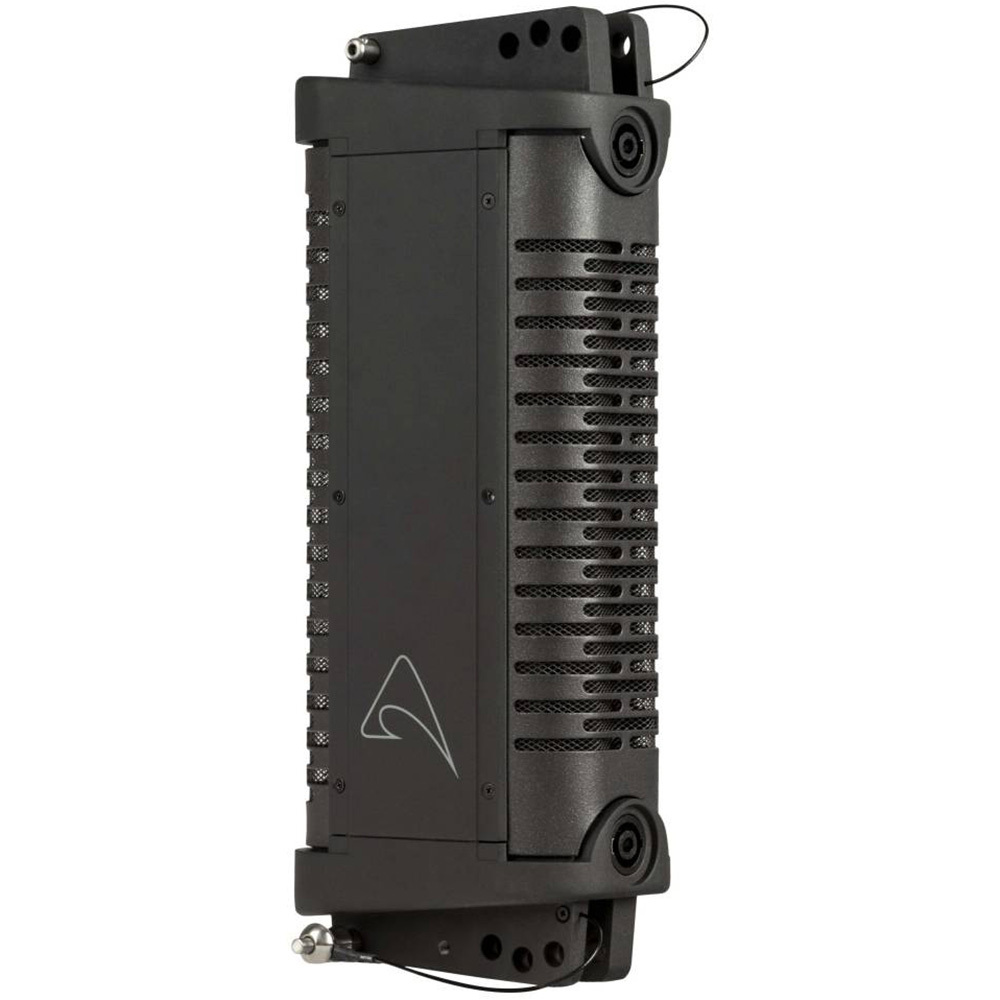

The AX4CL Line Array is a passive system equipped with four 2.5” neodymium transducers with waterproof cones, designed for portable and permanently installed applications where high power and clarity are needed. The aluminium frame box structure ensures lightweight and strength, while the shape features a back-loaded transmission line design with clean mid-bass reproduction and natural cardioid behaviour. The wide horizontal dispersion makes the system flexible and adaptable to many different applications. The AX4CL line array module has been designed to be used as a stand-alone or multiple-column system in fixed or mobile installations, front-fill applications and low-profile stage monitoring solutions. It can also be combined with AX16CL columns in multiple-column systems in different configurations. Thanks to its elegant mechanical design the AX4CL can be easily transported, while the integrated suspension system makes its deployment very fast and simple. Each unit comes with two aluminum brackets and two pins that allows multiple array elements to be easily combined either together, with inter-cabinet angles of 0°, 2° and 4°. A complete range of accessories for installation and connections are available.
  • High Power passive portable Line Array element
  • 4 x 2.5” neodymium transducers with waterproof cones
  • 80W continuous power – 160W program power
  • Line Array dispersion characteristics
  • Acoustic transmission line back loading design, resulting in clean mid-bass reproduction and natural cardioid behavior
  • Wide horizontal dispersion
  • Fast, easy-to-use integrated suspension system
  • Aluminium frame structure
  • Designed for mobile and installed applications
  • Black or white finish
System’s Acoustic Principle: Line Array Element, Short Transmission, Line Back Loading
Frequency Response (±3dB): 200 Hz – 16kHz (Processed)
Nominal Impedance: 32 Ohm
Minimum Impedance: 23,7 Ohm
Horizontal Coverage Angle: 80° (-6dB)
Sensitivity (4V): 91 dB SPL @ 1m*
Maximum Peak SPL @ 1m: 116 dB
Type: 4 x 2.5" (66mm) Neodymium magnet woofers, 0.8" (20mm) VC
Waterproof Cone: Waterproof Cone
Ventilated voice coil: Ventilated voice coil
Connector Type: Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru)
Continuous AES Pink Noise Power: 80 W
Program Power: 160 W
Dimensions (W x H x D): 90 mm (3.54”) x 390 mm (15.3”) x 154 mm (6.06”)
Enclosure Material: Aluminum
Paint: High resistance, water based paint, black or white finish
Flying system: Aluminum Fast Link structure with dedicated pins
Net Weight: 4 Kg

specifications

SKU AX4CL
Brand Axiom
Shipping Weight 8.0000kg
