CS-1000RGB RGB Analogue Laser Projector 1000mW 30kpps
The Laserworld CS-1000RGB MKIII is a 1000mW Analogue Laser Projector that produces powerful standard laser effects including beams, waves, and tunnels in addition to simple graphics. The CS-1000RGB MKIII has DMX control, stand-alone modes, and sound-to-light capabilities so it can work with the rest of your lights. Additionally, it has an ILDA connector for expert computer control. The CS-1000RGB MKIII can also be used in master-slave mode, making it ideal for small to medium-sized nightclub installations, indoor events, and mobile DJs.

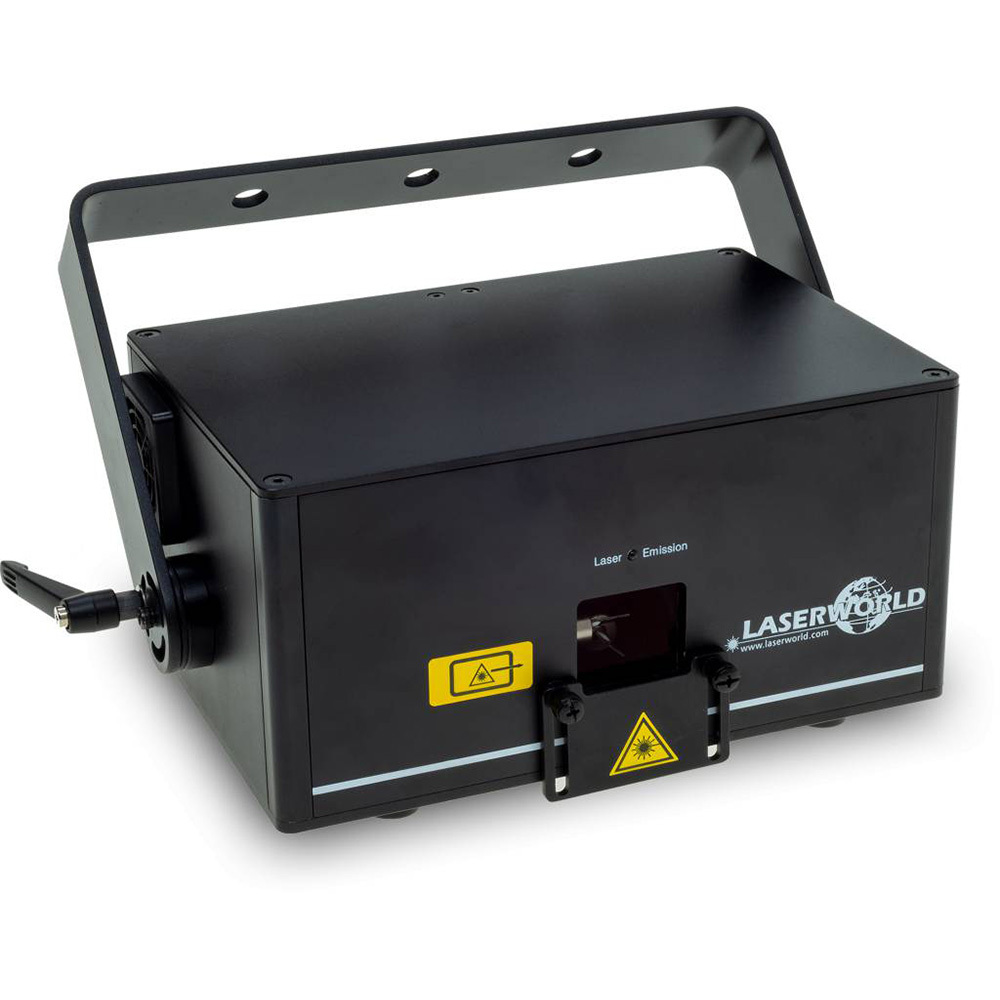

The tiny housing of the CS-1000RGB MKIII show laser projector is entirely new, lightweight, and equipped with a secure bracket. The solid bracket permits a variety of mounting positions, including: Both a hanging and a standing installation are feasible, making them perfect for temporary laser shows and mobile DJ sets, as well as for permanent installations at trusses or ceilings.

Pure diode RGB laser system with several colours

A pure diode multi-color RGB laser system with a total output power of up to 1000 mW and a guaranteed output power of 800 mW is called the CS-1000RGB MKIII. The output power of the red laser source is 200 mW/650 nm, the green laser source is 70 mW/520 nm, and the royal blue laser source is 530 mW/450 nm. Brilliant colours and strong laser beams are guaranteed by the laser sources. With ca, the projector has good beam characteristics. 1 mrad or 3 mm. Up to 28 kpps @ 8° ILDA is the maximum scan speed of the galvo system.

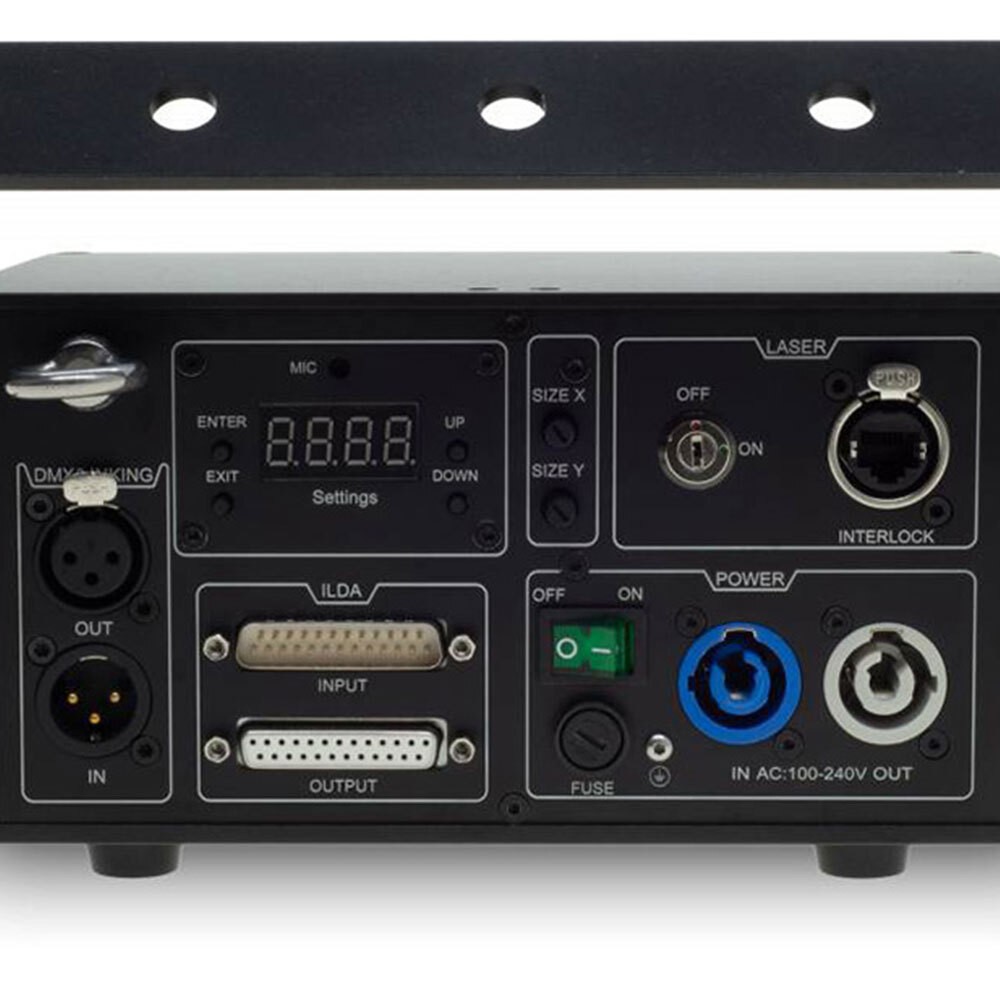

You can change the pattern size using the two rotary buttons (X and Y axis) on the CS-1000RGB MKIII rear housing. The inbuilt display also allows you to modify the microphone's sensitivity. Using DMX, in both the automated and sound-to-light modes, ca. It is possible to project 130 (layers, tunnels, barriers, waves, etc.) at various speeds and in a variety of colours. The pre-programmed patterns run automatically when the automated mode is on, and the laser system projects lights in response to sound in the sound-to-light mode.

You can change the pattern size using the two rotary buttons (X and Y axis) on the CS-1000RGB MKIII rear housing. The inbuilt display also allows you to modify the microphone's sensitivity. Using DMX, in both the automated and sound-to-light modes, ca. It is possible to project 130 (layers, tunnels, barriers, waves, etc.) at various speeds and in a variety of colours. The pre-programmed patterns run automatically when the automated mode is on, and the laser system projects lights in response to sound in the sound-to-light mode.

This laser projector has a master-slave mode in addition to the previously described modes. The same patterns are projected by show lasers of the same series (slave projectors), when connected through DMX to a main projector (master projector).

ILDA interface is provided by the CS-1000RGB MKIII.

Through a qualified ILDA interface, the CS-1000RGB MKIII is computer controllable. You can use the pre-programmed or bespoke laser shows, logos, texts, or your own graphics and animations here. Combining these with laser control software is possible. A key switch, an interlock connector, and an on/off switch are further safety features.

The CS-1000RGB MKIII is excellent for modest to semi-professional applications and is perfect for mobile DJs, private use, and any other party site. It may be used in pubs, small to medium-sized clubs, and discos.

Product specification

• 1 W RGB laser system
• DMX controllable, master-slave operation possible
• Diode-only laser system
• Computer controllable via ILDA
• Sound-to-light and stand-alone mode
• Front panel laser beam masking plate
• Capable of basic graphics, texts and logos
• Several hundred colours, including white
• 28 kpps @ 8° ILDA scanners
• 360° mounting bracket
