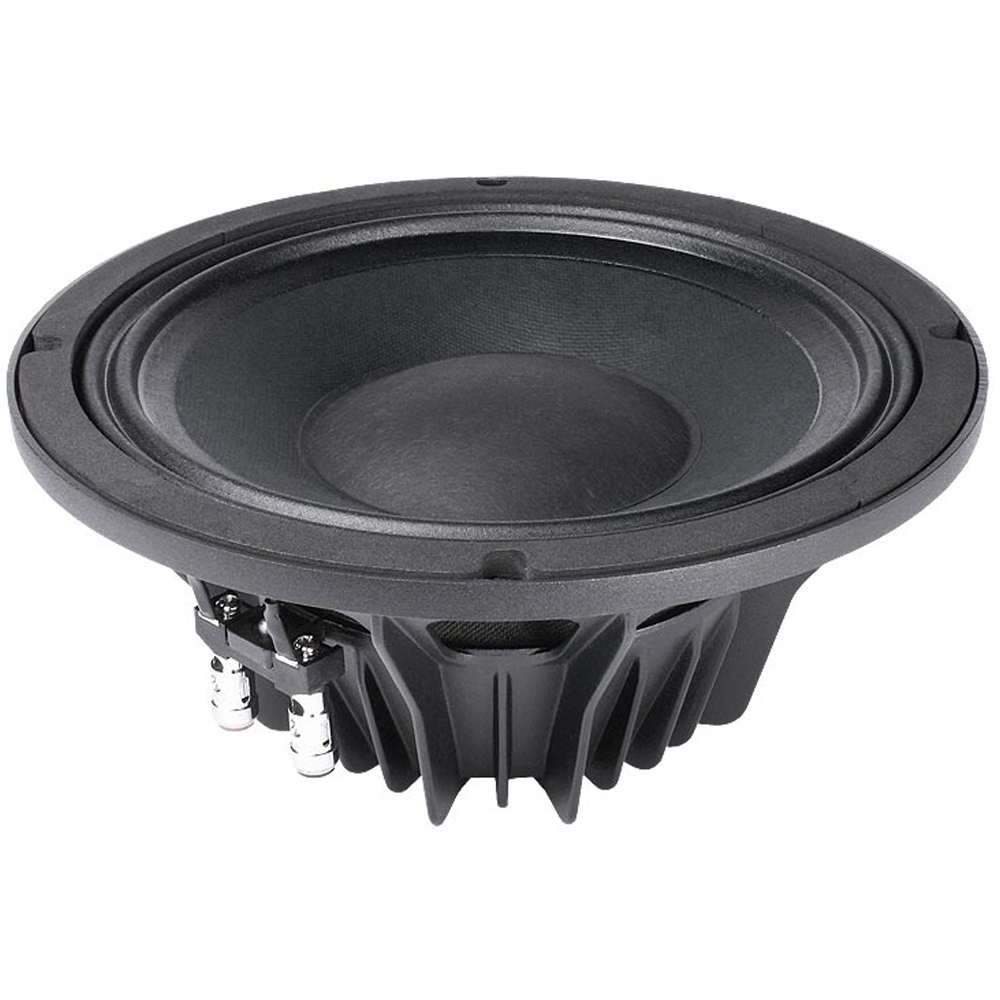

FaitalPRO FA-10PR300 10″ LF Loudspeaker – 300W – 4 Ohm

Above all, unleash the power of superior audio reproduction with the FaitalPRO FA-10PR300 LF Loudspeaker. Meticulously designed and engineered, this 10-inch speaker embodies a perfect fusion of cutting-edge technology and precision craftsmanship.

Crafted for Excellence

The Nominal Diameter of 250 mm (10 in) and Overall Diameter of 261 mm (10.28 in) showcase the speaker’s substantial size, promising a rich and immersive audio experience. The Bolt Circle Diameter of 246 mm (9.69 in) and Baffle Cutout Diameter of 232 mm (9.13 in) highlight its seamless integration into various audio setups.

Compact Powerhouse

Despite its robust performance, the FA-10PR300 maintains a sleek profile. In fact, it has a Depth of 115.3 mm (4.54 in) and a lightweight build at 2.3 kg (5.1 lb). Also, the Flange and Gasket Thickness of 12.2 mm (0.48 in) ensures durability and resilience.

Exceptional Technical Parameters

Experience powerful performance with a Nominal Impedance of 4 Ohm, Minimum Impedance of 3.9 Ohm, and a remarkable AES Power Handling capability ranging from 300 W to a maximum of 600 W. Furthermore, the FA-10PR300’s high Sensitivity (1W/1m) of 96 dB ensures every nuance of your audio is faithfully reproduced.

Innovative Construction

Featuring a 65 mm (2.56 in) Voice Coil Diameter, constructed with Aluminum winding material and a Glass Fiber former, this speaker is engineered for durability and precision. Moreover, the Neodymium Slug Magnet with a Flux Density of 1.25 T adds a magnetic touch to your sound.

FA-10PR300 Enhanced Features

Lastly, the M-Roll Cone Surround and 1x variable height waves in the Spider Profile contribute to the speaker’s exceptional performance across the Frequency Range of 50 to 4000 Hz.

• Compact and Lightweight
• High Sensitivity and Power Handling
• Premium Construction for Quality Sound

Nominal Diameter:	250 mm (10 in)
Overall Diameter:	261 mm (10.28 in)
Bolt Circle Diameter:	246 mm (9.69 in)
Baffle Cutout Diameter:	232 mm (9.13 in)
Depth:	115.3 mm (4.54 in)
Flange and Gasket Thickness:	12.2 mm (0.48 in)
Net Weight:	2.3 kg
Dimensions:	294 x 290 x 203 mm
Shipping Weight:	2.8 kg
Nominal Impedance:	4 Ohm
Minimum Impedance:	3.9 Ohm
AES Power Handling (1):	300 W
Maximum Power Handling (2):	600 W
Sensitivity (1W/1m):	97 dB
Frequency Range:	50 - 4000 Hz
Voice Coil Diameter:	65 mm (2.56 in)
Winding Material:	Al
Former Material:	Glass Fiber
Winding Depth:	12.5 mm (0.49 in)
Magnetic Gap Depth:	8 mm (0.31 in)
Flux Density:	1.25 T
Magnet:	Neodymium Slug
Basket Material:	Aluminum
Demodulation:	No
Cone Surround (3):	M-Roll
NET Air Volume filled by Loudspeaker:	1.3 dm^3
Spider Profile:	1x variable height waves
