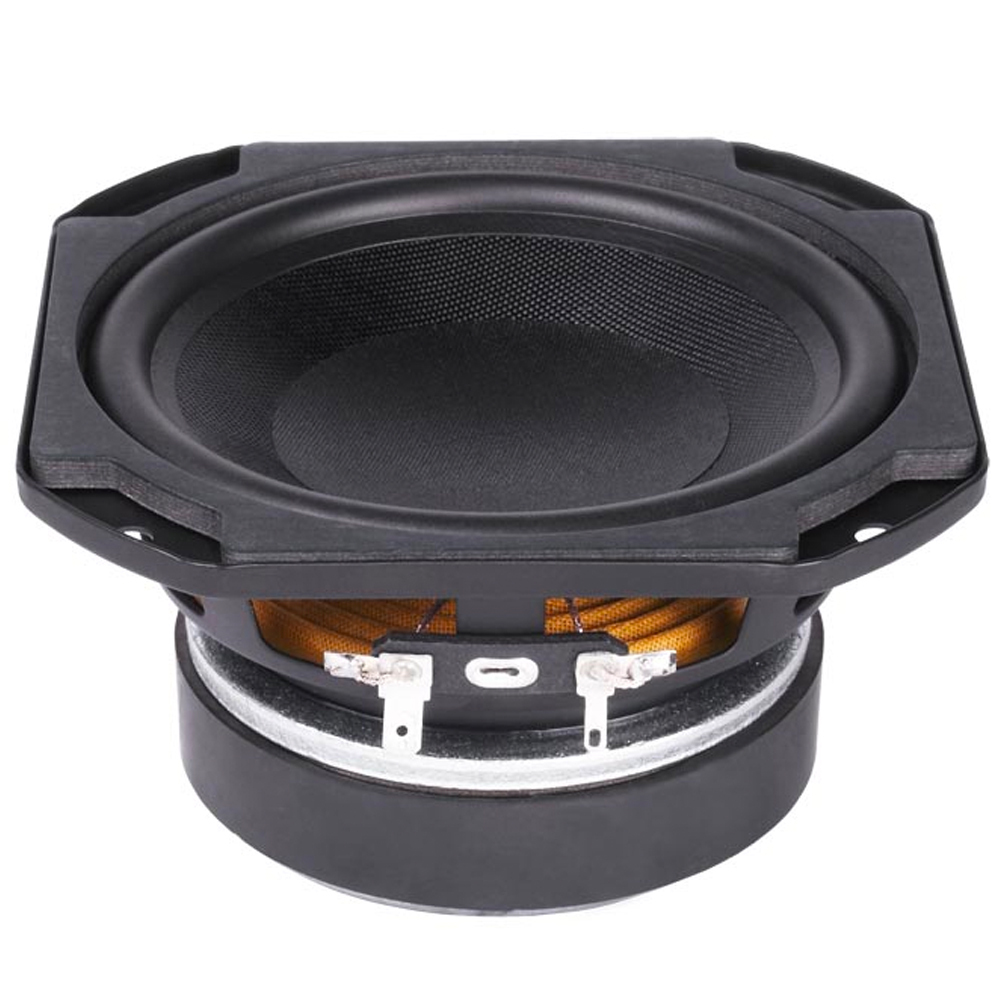

FaitalPRO FA-5FE120 5″LF Loudspeaker – 80W Woofer – 8 Ohm

Upgrade your sound system with the FaitalPRO FA-5FE120 5″ LF Loudspeaker. Whether you’re a musician, sound engineer, or enthusiast, this speaker delivers top-notch performance that will elevate your audio setup.

Built for Performance

With a 5″ diameter, this LF Loudspeaker packs a punch. Whether you’re in the studio or on stage, its 80W AES power handling ensures you get a clear, powerful audio performance.

Robust Construction

Featuring a steel basket and a half-roll cone surround, this loudspeaker is built to withstand the rigours of professional use. The Kapton former and aluminium ring demodulation further enhance its durability.

Crystal Clear Sound

With a wide frequency range, this speaker reproduces audio with exceptional clarity. From the lowest lows to the highest highs, you’ll experience detailed, precise sound.

Seamless Integration

The FaitalPRO FA-5FE120 is designed for easy installation, thanks to its standard measurements and included flange and gasket. Also, it seamlessly integrates into your speaker system for an enhanced audio experience.
  • Nominal Diameter: 130 mm (5 in)
  • Impedance: 8 Ohm (Nominal), 6.2 Ohm (Minimum)
  • Power Handling: 80 W (AES), 160 W (Maximum)
  • Sensitivity: 88 dB (1W/1m)
  • Frequency Range: 63 – 6300 Hz
  • Voice Coil Diameter: 32 mm (1.26 in)
  • Magnet Type: Ferrite Ring
Nominal Diameter: 130 mm (5 in)
Overall Diameter: 144.8/124.5 mm (5.7/4.9 in)
Bolt Circle Diameter: 133 mm (5.24 in)
Baffle Cutout Diameter: 114 mm (4.49 in)
Depth: 71.5 mm (2.81 in)
Flange and Gasket Thickness: 6.5 mm (0.25 in)
Net Weight: 1.1 kg (2.5 lb)
Dimensions: 302 x 275 x 186 mm (11.9 x 10.8 x 7.3 in)
Nominal Impedance: 8 Ohm
Minimum Impedance: 6.2 Ohm
AES Power Handling (1): 80 W
Maximum Power Handling (2): 160 W
Sensitivity (1W/1m): 88 dB
Frequency Range: 63 - 6300 Hz
Voice Coil Diameter: 32 mm (1.26 in)
Winding Material: Cu
Former Material: Kapton
Winding Depth: 12.4 mm (0.49 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: Aluminum Ring
Cone Surround (3): Half Roll
NET Air Volume filled by Loudspeaker: 0.3 dm^3 (0.011 ft^3)
Spider Profile: 1x constant height waves

specifications

SKU FA-5FE120
Brand Faital Pro
Shipping Weight 9.6000kg
