description

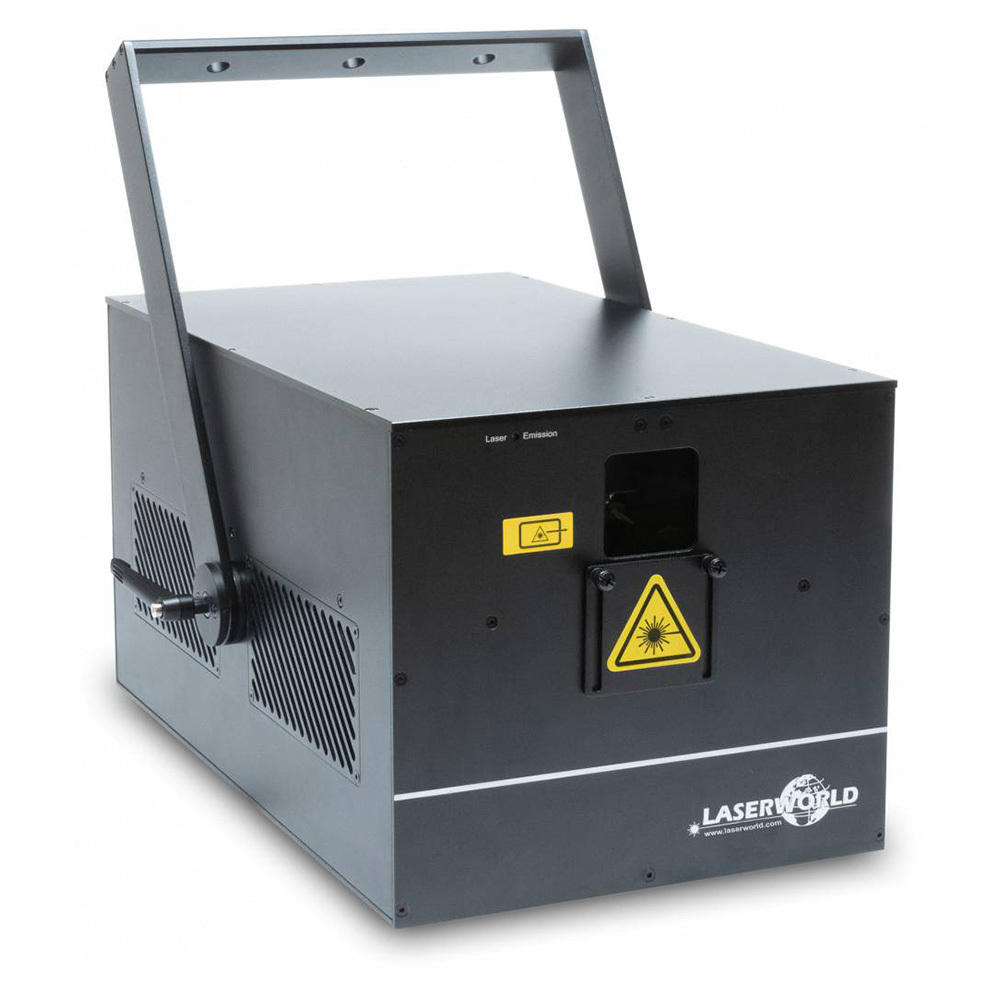

A powerful semi-professional pure diode laser, capable of intense standard laser effects like beams, waves and tunnels but also basic graphics all of which can combine with the 3 built in grating effects to become a real room filler. This laser has easy plug and play, sound-to-light and stand-alone modes, DMX control, so it can be controlled with the rest of the lighting, but also has an ILDA port for computer control. Perfect for large nightclub installs, large indoor as well as festivals or outdoor events. The Laserworld CS-24.000RGB FX has three grating effects built in in addition to the graphics capable scanners: line grating, radial grating and burst grating . Together with the ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings stored on the laser, these effects offer a variety of combinations for impressive illumination of medium-sized to large locations. The grating effects make the projected patterns appear as if they were displayed by many projectors at the same time. The resulting extensiveness allows for effects that could not be achieved in any other way. But that's not everything the Laserworld CS-24.000RGB FX has to offer:   The Laserworld CS-24.000RGB FX is a pure diode, analog modulated, full color RGB laser system with a total output power of up to 22'200 mW and a guaranteed output power of 22'000 mW. The red laser source has an output power of 5'000 mW / 638 nm, the green of 5'200 mW / 520 nm and the royal-blue laser source has an output power of 12'000 mW / 450 nm. The diode laser sources ensure powerful laser beams. The projector has good beam specifications with a beam diameter of ca. 6 mm and beam divergence of 1.4 mrad. The galvo system has a scan speed of up to 28kpps @ 8° ILDA, galvo system, switchable effects grating wheel. Pattern size can be set by two rotary buttons on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display. There is no airflow in the optical compartment, the temperature is regulated through the separate cooling fins compartment. This reduces maintenance and cleaning requirements to a minimum. Through DMX, in the stand-alone mode as well as in the sound-to-light mode about ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings can be projected in different colors and in various speed. If the stand-alone mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound. Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX cable to a main projector (master projector) project the same patterns like the master projector. The Laserworld CS-24.000RGB FX is computer controllable through a professional ILDA interface. Thus own or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software (e.g. Showeditor or Showcontroller). There are safety features like a key switch, an interlock and an on-off switch. The Laserworld CS-24.000RGB FX show laser projector comes with a compact housing, which is light weight and has a stable bracket. The 360° mounting bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling. The Laserworld CS-24.000RGB FX is ideal for semi-professional applications and is perfectly suitable in large clubs and discos as well as for festivals or larger stages and generally outdoor events.

• Powerful 22.2W pure-diode RGB laser system
• three additional grating effects: Line, Radial and Burst
• DMX controllable, master-slave operation possible
• Full diode laser system for enhanced colour mixing
• Computer controllable via ILDA
• Plug & play: Sound-to-light and stand-alone modes
• Fitted with a 28kpps @ 8° ILDA galvo system, switchable effects, and grating wheel scanners
• Full color with analog modulation
• Front panel laser beam masking plate
• 360° mounting bracket

Guaranteed power at aperture:	22,000 mW
Power Red:	5,000 mW / 638 nm
Power Green:	5,200 mW / 520 nm
Power Blue:	12,000 mW / 450 nm
Beam Specifications (full angle):	ca. 6 mm / 1.4 mrad
Laser Sources:	Diode
Laser Class:	4
Operation Modes:	Stand-alone, Sound-to-light, DMX, ILDA, Master-Slave
Scanner:	28 kpps@8°
Scan Angle max.:	40°, up to 90° with effect gratings
Basic Patterns:	over 130 (layers, tunnels, fences, waves, etc.) +  effects gratings
Accessories:	power cable, manual, keys, interlock, allen key
Power Supply:	85 V – 250 V / AC, 50/60 Hz internal PSU
Power Consumption:	400 W
Dimensions:	400 x 240 x 230 mm (L x W x H)
Weight:	19 kg
