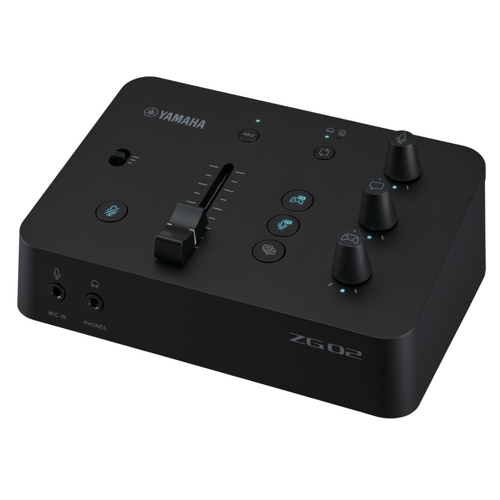

Yamaha ZG02 Compact Game Streaming Audio Mixer

The ZG02 part of Yamaha’s ZG series of game streaming audio mixers, is optimized for multiplayer live gameplay and equipped with flexible new features to accommodate a more diverse range of gaming styles that prioritize live communication and overall team cohesion with your squad.

The ZG02 provides a simple and streamlined way to independently control the most important elements of your gaming audio. Seamlessly create a custom mix involving your game audio, party chat audio, and microphone level for either yourself as you game or your audience to hear as you live stream.

This is simply achieved in real time using a series of dials and a dedicated microphone level fader to ensure a balanced mix at all times, ensuring every layer of audio remains present and accounted for without needing to navigate to software settings disrupting your stream or gaming session.

Optimized features for team communication

Designed specifically with multiplayer gameplay in mind, the ZG02 makes communicating with your team a dream. Users can easily and precisely control the sounds they want to hear, the sound of their own voice, and the sound they want to deliver to their audience via the simple, tactile controls of the ZG02.

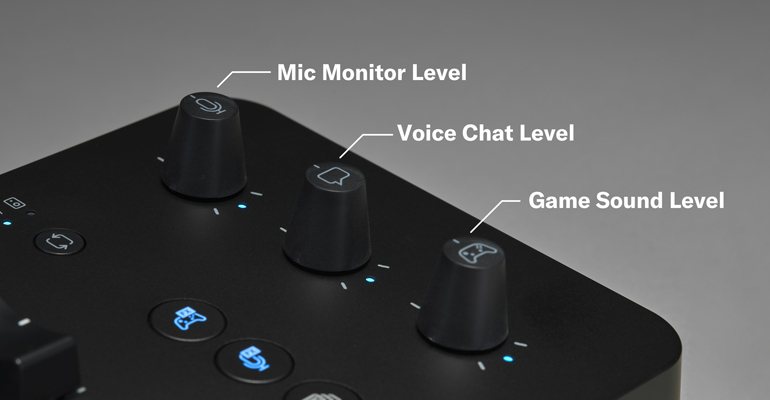

3 knobs for intuitive player and game audio control

The ZG02 is equipped with three knobs for the three audio sources that influence your multiplayer gaming the most; your own voice, your team member’s voices, and all combined game audio. You can mix and control the levels of the voices you hear, and the voices your teammates and audience hear in real time, ensuring an optimal balance of volume that will have a dramatic effect on all aspects of your shared gaming experience.

One-touch access to sound FX

Three conveniently placed one-touch preset buttons near the center of the console give you instant access to three types of effects processing; for your own voice, for game audio, and for sound FX that will liven up gameplay considerably. So not only can you adjust individual voice output levels, you can also assign and adjust effects to add more realistic depth and dimension. Our advanced signal processing technologies can also give you an added advantage in game performance, for example, by adding effects to emphasize the sound of enemy footsteps.

Connect your favorite microphone or headset

The ZG02 supports microphone connections from a variety of terminals based on the current preferences popular with gamers and streamers such as headsets and condenser mics. We’ve also set three optimal microphone gain levels based on these preferences to make getting the perfect volume adjustments as fast and easy as possible. You can even switch to a speaker connection with a single touch of a button if you get tired of wearing headphones for extended periods of time.

A compact and affordable game streaming audio mixer

Gamers and streamers desktops can get pretty cluttered with computers, game consoles, keyboards, controllers, and any other equipment they feel is necessary for a comfortable, modern gaming lifestyle. With its attractive yet diminutive design, the ZG02 is smaller than a typical mixing interface and can even add to your gaming or work space’s aesthetic rather than overpower it. Integrating the superior sound quality and performance features of the ZG02 into your gaming or streaming ecosystem couldn’t be easier; simply connect to your gaming console and a power source via USB type-C, or if you’re a PC gamer just a single connection to your computer will power the unit. And with its more affordable price tag the ZG02 makes an ideal choice for both gamers and aspiring streamers alike.

Updated “ZG Controller” app adds power and flexibility

Just as the previous version of the ZG Controller app allowed more detailed adjustments of volume and various effect settings, the new version of the app will allow users to get the most out of their ZG02’s functionality. The update enables more precise parameter control and features a new “link” function that lets users adjust volume levels in real time during streaming using the ZG02’s physical knobs instead of the ZG Controller’s virtual controls for a more convenient and tactile experience.

Features

• Optimized features for PC gamers and streamer
• Sound with Yamaha's unique sound processing technology for a more immersive gaming experience
• A wide variety of microphone effects provide high-quality voice communication to squad members
• Intuitive volume control designed for gamer and game streamer
• High resolution (24-bit, 48 kHz) USB audio recording and playback
• ZG Sound Processing (ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, Voice changer, Transceiver/Radio voice effect... and more)
• Effect button x 3 (2 for voice chat effects, 1 for game sound effects)
• HDMI connection port x 3 (2-in/1-out, Audio out: 2ch 24-bit/48 kHz fixed, Video signal: Pass-through)
• Instantly mute unwanted sounds with the microphone mute button
• "Link" function to control volume and balance for listeners during streaming
• Compatibility with Elgato Stream Deck™
• MIC input for condenser mics with +48 phantom power and mute button
• Switchable microphone gain control according to the type of microphone connected
• Supports headset (front input) and condenser microphone (rear input) connections
• Independent inputs and outputs for headset/ microphone with headphones or desktop speakers
• 4-pole mini input/output (TRRS) for smartphones
• ZG Controller (Windows/Mac) for precise parameter control
• iOS and Android supported by 4-pole mini input/output (TRRS)

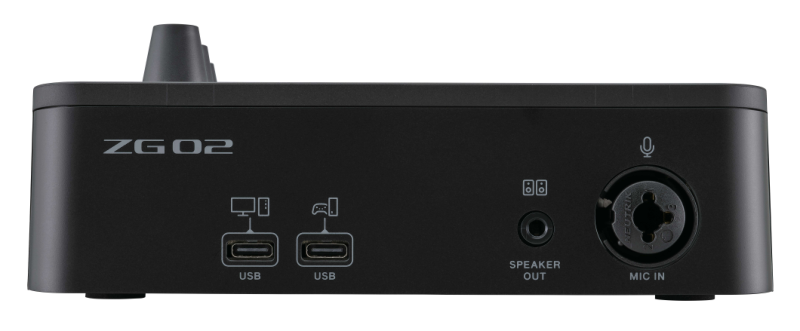

• USB Type-C for simple connection to PCs (Windows / Mac) or consoles (Sony PlayStation™ 4 /Sony PlayStation™ 5 / Nintendo Switch™ / Elgato Stream Deck™)
• USB power supply simplifies connection to PCs (separate power supply is required for connection to consoles)
• USB-C Power input (5 V DC, 900 mA)
