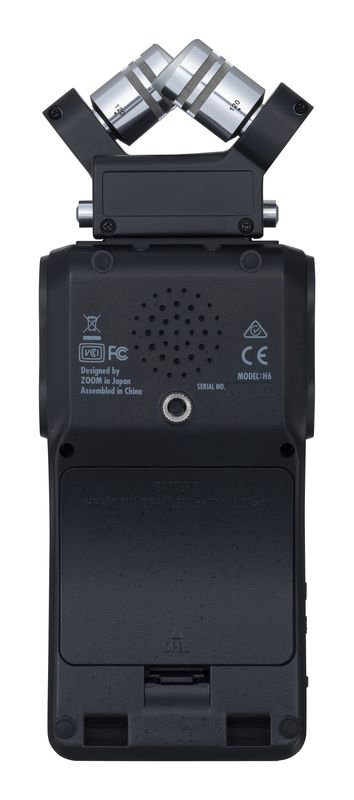

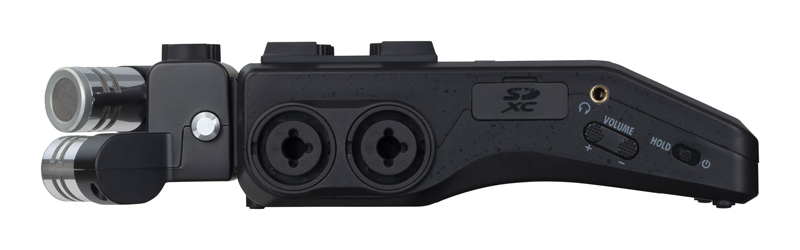

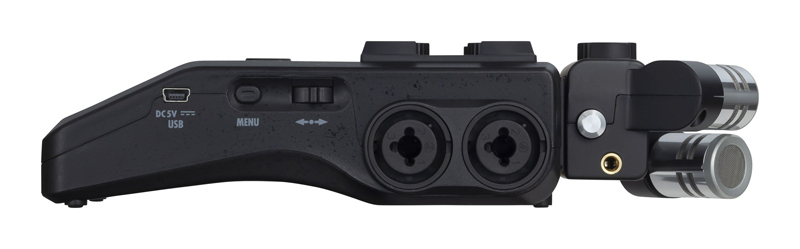

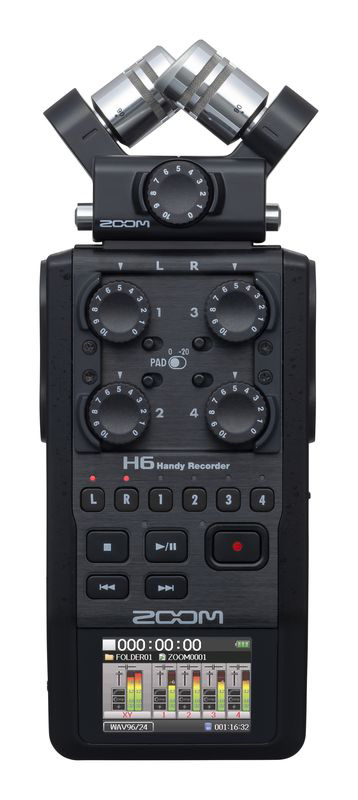

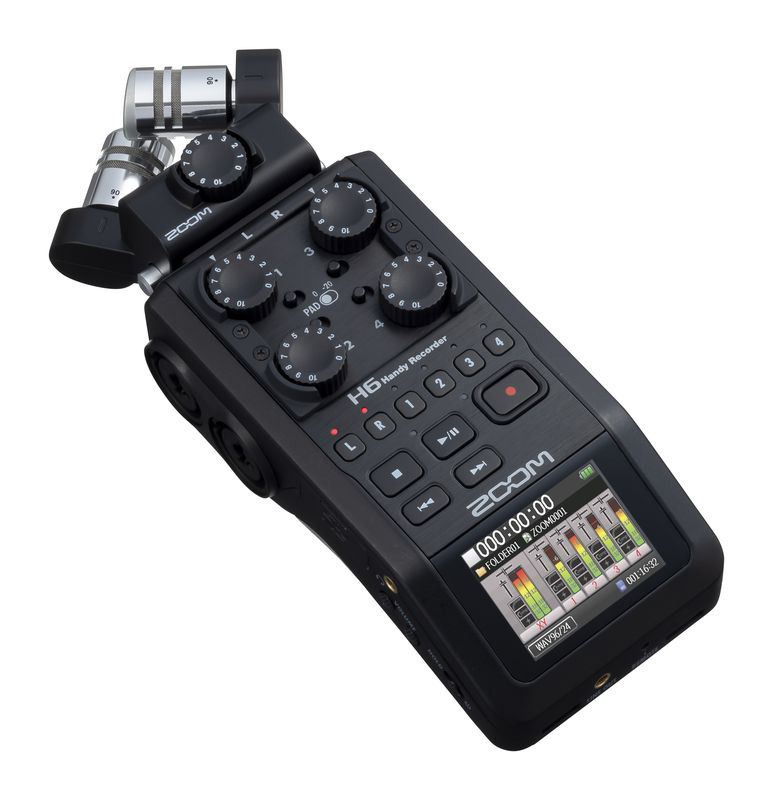

ZOOM H6 HANDY RECORDER BLACK EDITION

The H6 is the ultimate portable recorder.  With its advanced preamps and interchangeable capsules, the H6 delivers unmatched versatility and award-winning quality.

Product Features

• Interchangeable input capsules
• Six-track simultaneous recording
• Four mic/line inputs with XLR/TRS combo connectors
• Gain control knobs and -20dB pads for each input
• Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
• Phantom power for all main inputs: +12/+24/+48V
• Large full-color, angled LCD display
• Records directly to SD, SDHC and SDXC cards up to 128GB
• Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
• Built-in effects, including low-cut filtering, compression, and limiting
• Multichannel and stereo USB audio interface for PC/Mac/iPad
• Accepts standard AA alkaline or NiMH rechargeable batteries
• Over 20 hours of operation with 4 AA alkaline batteries

Specifications

• RECORDING MEDIA
• SD CARD:    16MB to 2GB
• SDHC CARD:    4GB to 32GB
• SDXC CARD:    64GB to 128GB
• INPUTS
• XYH-6 X/Y MIC:    Mic type: Unidirectional
• Sensitivity: -41 dB, 1 kHz at 1 Pa
• Input gain: -∞ to 46.5 dB
• Max sound pressure input: 136 dB SPL
• XYH-6 MIC/LINE IN:    Connector: 1/8" stereo mini jack
• Input level: - ∞ to 46.5 dB
• Input impedance: 2 k Ω
• Plug-in power: 2.5V supported
• MSH-6 MS MIC:    Mic types: Unidirectional and bi-directional
• Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional)
• -39 dB, 1 kHz at 1 Pa (bi-directional)
• Input gain: -∞ to 42.5 dB
• Max sound pressure input: 120 dB SPL (unidirectional)
• 122 dB SPL (bi-directional)
• INPUTS 1 TO 4:    Connectors: XLR / TRS combo jacks
• (XLR: Pin 2 hot / TRS: Tip hot)
• Input gain: (PAD OFF) -∞ to 55.5 dB
• Input gain: (PAD ON) -∞ to 35.5 dB
• Input impedance: 1.8kΩ or more
• Max input level: +22 dBu (PAD ON)
• Phantom power: +12V /+24V /+
